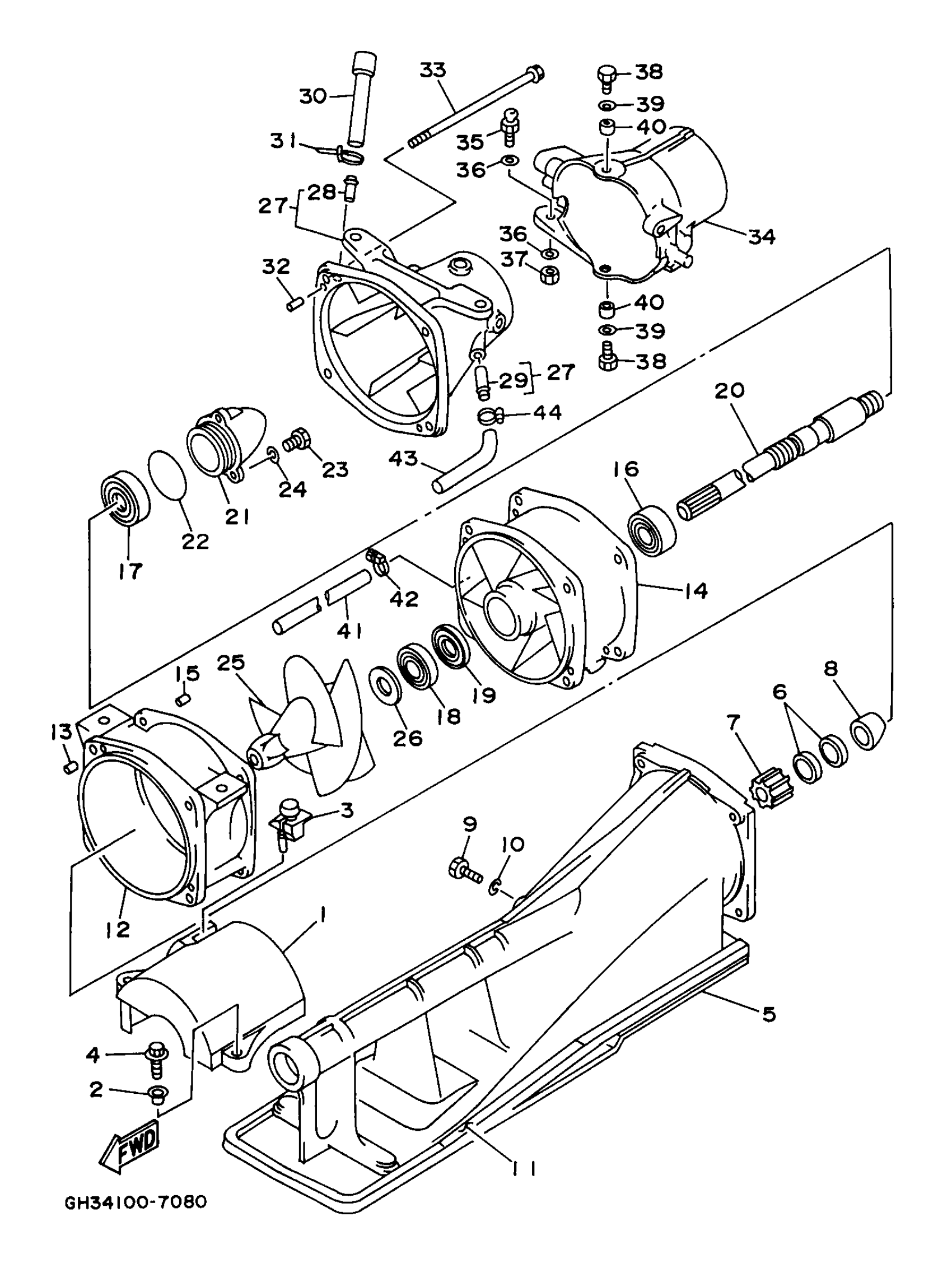

Yamaha WVT1100V (WAVE VENTURE 1100) GH34-35 1997 JET UNIT 1 Diagram

#

Description
Price

1

COVER

64T-51381-00-00

Unavailable

2

COLLAR

90387-06M60-00

$6.37

3

GROMMET(6R7)

90480-06M46-00

$9.31

3

GROMMET(GD0)

90480-06M69-00

$51.86

4

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

$1.00

5

DUCT, INTAKE

63M-51311-01-94

Unavailable

5

DUCT, INTAKE

65A-R1311-01-00

Unavailable

6

OIL SEAL(6R8)

93102-18M35-00

Unavailable

7

BUSHING, DRIVE SHAFT

6R8-45318-00-00

Unavailable

8

SPACER

6R8-51348-02-94

Unavailable

9

BOLT, WITH WASHER

90119-06892-00

$3.79

9

BOLT

90101-06M27-00

$3.14

10

WASHER, PLAIN (646)

92990-06600-00

$1.84

11

. FELT, PACKING

6R8-51367-01-00

$10.36

12

HOUSING, IMPELLER

63M-51312-02-94

Unavailable

12

HOUSING, IMPELLER

63M-51312-02-94

Unavailable

13

PIN, DOWEL (614)

93606-12019-00

Unavailable

14

DUCT, IMPELLER

63M-51315-02-00

Unavailable

14

DUCT, IMPELLER

63M-51315-02-00

Unavailable

15

PIN, DOWEL (614)

93606-12019-00

Unavailable

16

BEARING

93305-205U1-00

$104.53

17

BEARING (6K8)

93306-205U1-00

Unavailable

18

OIL SEAL(6R7)

93102-25M34-00

Unavailable

19

OIL SEAL(6R7)

93101-25M50-00

Unavailable

20

SHAFT, DRIVE

63M-45511-00-00

Unavailable

21

CAP

62T-51326-00-00

$71.20

21

CAP KIT

65A-R1326-10-KT

Unavailable

22

. O-RING

93210-46M16-00

$7.15

23

BOLT,WITH WASHER

90119-06890-00

$1.07

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

$1.84

25

IMPELLER

63M-51321-A0-00

Unavailable

25

IMPELLER

65A-R1321-00-00

Unavailable

26

SPACER

62T-51348-00-00

$52.82

27

NOZZLE

64T-51318-01-94

$165.14

27

NOZZLE

65A-R1318-00-00

Unavailable

28

. NIPPLE

65A-R1129-00-00

Unavailable

28

. NIPPLE

6K8-51129-00-00

$9.62

29

. NIPPLE,HOSE

63M-51334-00-00

$21.95

29

NIPPLE,HOSE

65A-R1334-01-00

Unavailable

30

PIPE 1

62E-51673-00-00

$24.98

31

CLAMP

90465-10098-00

$1.68

31

BAND, HOSE 18

90601-118UF-00

$2.07

32

PIN, DOWEL (614)

93606-12019-00

Unavailable

33

BOLT,WASHER BASED

90105-088D7-00

Unavailable

33

BOLT, WASHER BASED(63M)

90105-08M65-00

Unavailable

34

NOZZLE,DEFLECTOR

64T-51313-01-94

Unavailable

34

NOZZLE, DEFLECTOR

65A-R1313-01-00

Unavailable

35

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

36

WASHER,PLATE

90201-068M4-00

Unavailable

37

NUT(650)

95380-06700-00

Unavailable

38

BOLT, WITH WASHER

90119-08852-00

$3.79

38

BOLT, HEXAGON

97095-08020-00

Unavailable

39

.. WASHER, PLATE

92990-08600-00

$2.17

40

COLLAR

90387-08M08-00

$10.75

41

HOSE (L108)

90445-18M03-00

Unavailable

42

HOSE CLAMP ASSY

90450-18M09-00

$9.82

43

HOSE (L380)

90445-14M25-00

Unavailable

44

CLAMP

90465-10098-00

$1.68
