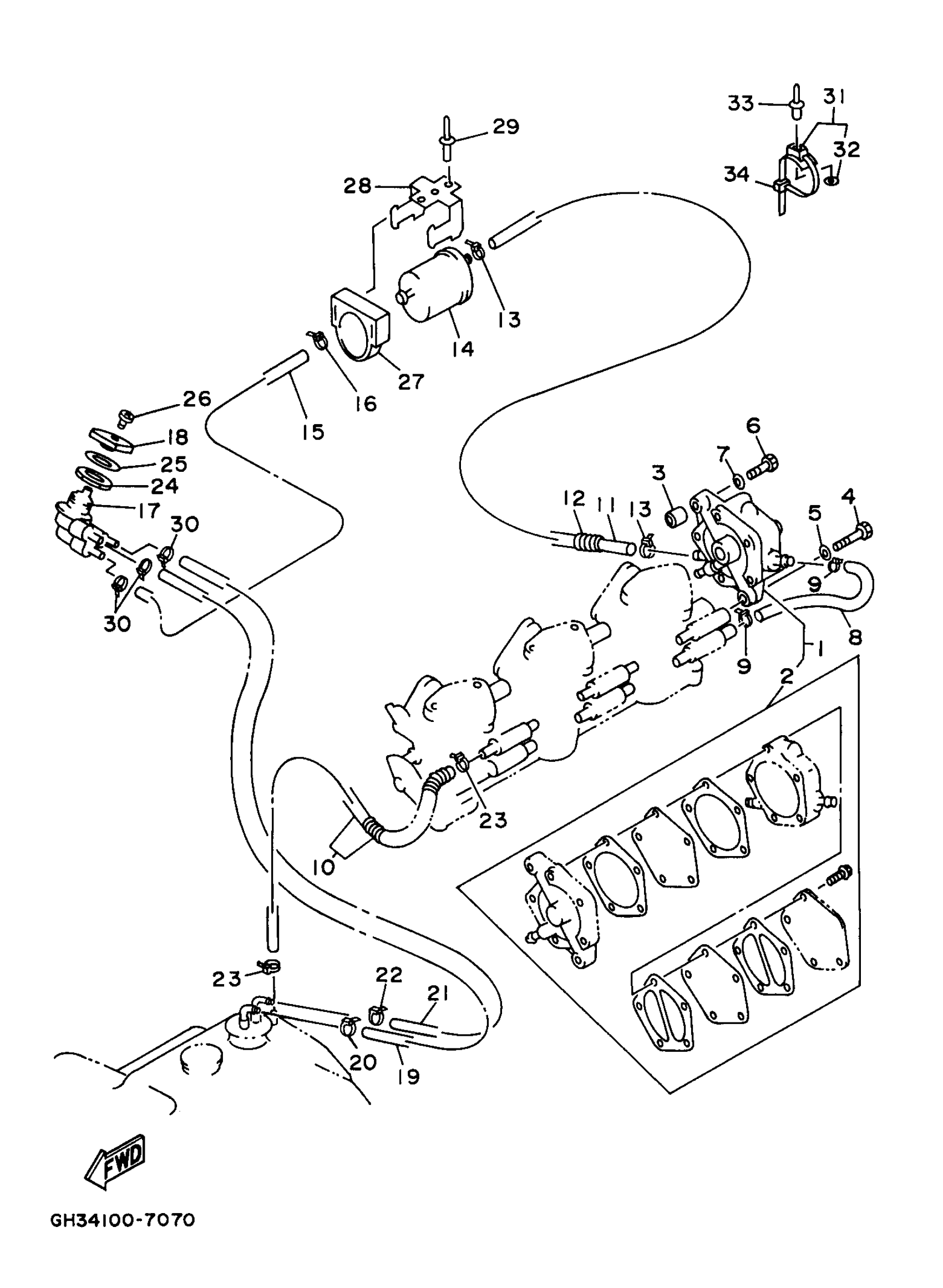

Yamaha WVT1100V (WAVE VENTURE 1100) GH34-35 1997 FUEL Diagram

#

Description
Price

1

FUEL PUMP ASSEMBLY

63M-24410-00-00

$159.77

2

. FUEL PUMP REPAIR KIT

63M-W2442-00-00

Unavailable

3

COLLAR

90387-06M44-00

Unavailable

4

BOLT(J52)

97080-06035-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$1.84

6

BOLT

97095-06022-00

Unavailable

7

WASHER, PLAIN (646)

92990-06600-00

$1.84

8

PIPE 3

63M-24313-00-00

Unavailable

9

CLAMP

90465-10098-00

$1.68

10

PIPE

63M-14298-00-00

Unavailable

11

HOSE (L590)

90445-10020-00

Unavailable

12

HOSE(64T)

90446-14M62-00

$5.98

13

CLAMP

90465-10098-00

$1.68

14

FILTER ASSY

6K8-24560-21-00

$28.64

15

HOSE (L1700)

90445-10M87-00

Unavailable

16

CLAMP

90465-10098-00

$1.68

17

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

18

LEVER, COCK

6R7-24524-00-00

$7.03

19

HOSE (L400)

90445-10M43-00

$5.96

20

CLAMP

90465-10098-00

$1.68

21

HOSE (L400)

90445-10M43-00

$5.96

22

CLAMP

90465-10098-00

$1.68

23

CLAMP

90465-10098-00

$1.68

24

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

25

WASHER, PLATE

90202-229U1-00

$14.35

26

SCREW, BIND

98980-04008-00

$3.05

27

HOLDER

EU0-67817-00-00

$13.33

28

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

29

RIVET (EU0)

90267-48938-00

$5.00

30

CLAMP

90465-10098-00

$1.68

31

CLAMP COMP (EU0)

90600-91736-00

Unavailable

32

. WASHER, PLAIN

90201-05925-00

Unavailable

33

RIVET, BLIND

90267-48802-00

$1.98

34

BAND (EU0)

90601-20009-00

$6.36
