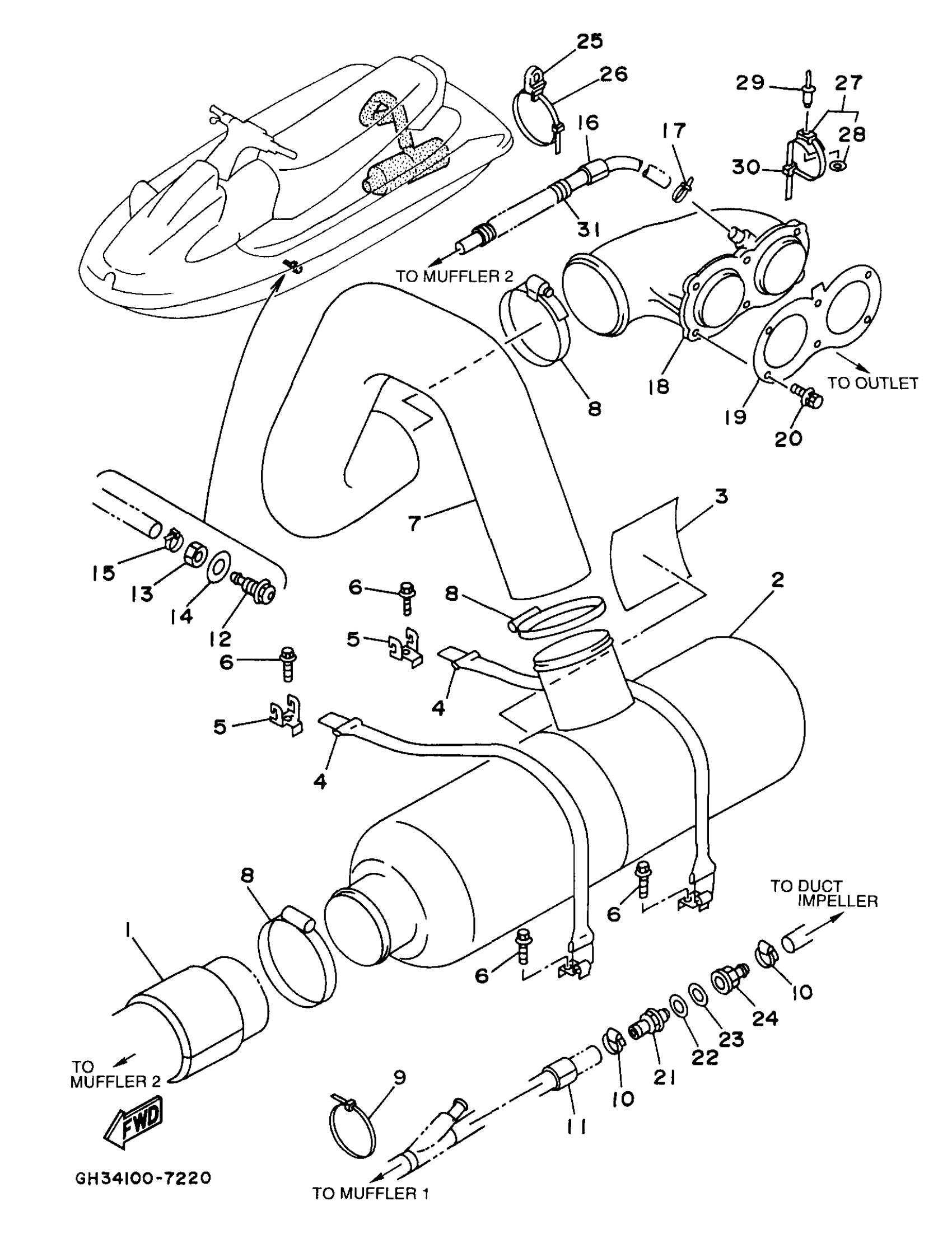

Yamaha WVT1100V (WAVE VENTURE 1100) GH34-35 1997 EXHAUST 2 Diagram

#

Description
Price

1

PACKING, HOSE 1

GJ1-67577-00-00

Unavailable

2

WATER LOCK BOX

GH3-U7550-00-00

Unavailable

3

MAT,WATER LOCK

GJ3-U755J-00-00

$90.89

4

C HOOK COMP.

GJ3-U7570-00-00

Unavailable

5

HOOK A

EW2-65772-00-00

$7.40

6

BOLT,FLANGE (EW2)

90105-06900-00

$5.66

7

HOSE

GH3-U7555-00-00

Unavailable

8

BAND, HOSE 95

90601-195UD-00

Unavailable

9

BAND (EU0)

90601-20009-00

$6.36

10

BAND, HOSE 18

90601-118UF-00

$2.07

11

PACKING, HOSE 2

GJ1-67578-10-00

$3.64

12

PILOT, WATER

GJ1-6753B-02-00

Unavailable

13

. NUT

95380-14700-00

$8.03

14

WASHER, PLAIN

92990-14200-00

$1.60

15

CLAMP

90465-10098-00

$1.68

16

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

17

BAND

90601-200U1-00

$2.77

18

EXHAUST, THRU-HALL COMP.

GJ1-U7560-00-00

Unavailable

19

PACKING

GJ1-U7525-00-00

Unavailable

20

BOLT, WITH WASHER (EW3)

90119-05912-00

$4.09

21

THROGUH-HULL CONNECTION 3/8

90604-80794-00

Unavailable

22

GASKET(GJ1)

90430-16910-00

Unavailable

23

GASKET(GJ1)

90430-16910-00

Unavailable

24

THROUGH-HULL CONNECTION 3/8"

90604-80793-00

Unavailable

25

BASE CLAMP

90600-900U1-00

Unavailable

26

BAND

90601-200U4-00

Unavailable

27

CLAMP COMP (EU0)

90600-91736-00

Unavailable

28

. WASHER, PLAIN

90201-05925-00

Unavailable

29

RIVET, BLIND

90267-48802-00

$1.98

30

BAND (EU0)

90601-20009-00

$6.36

31

HOSE(63M)

90446-27M55-00

Unavailable
