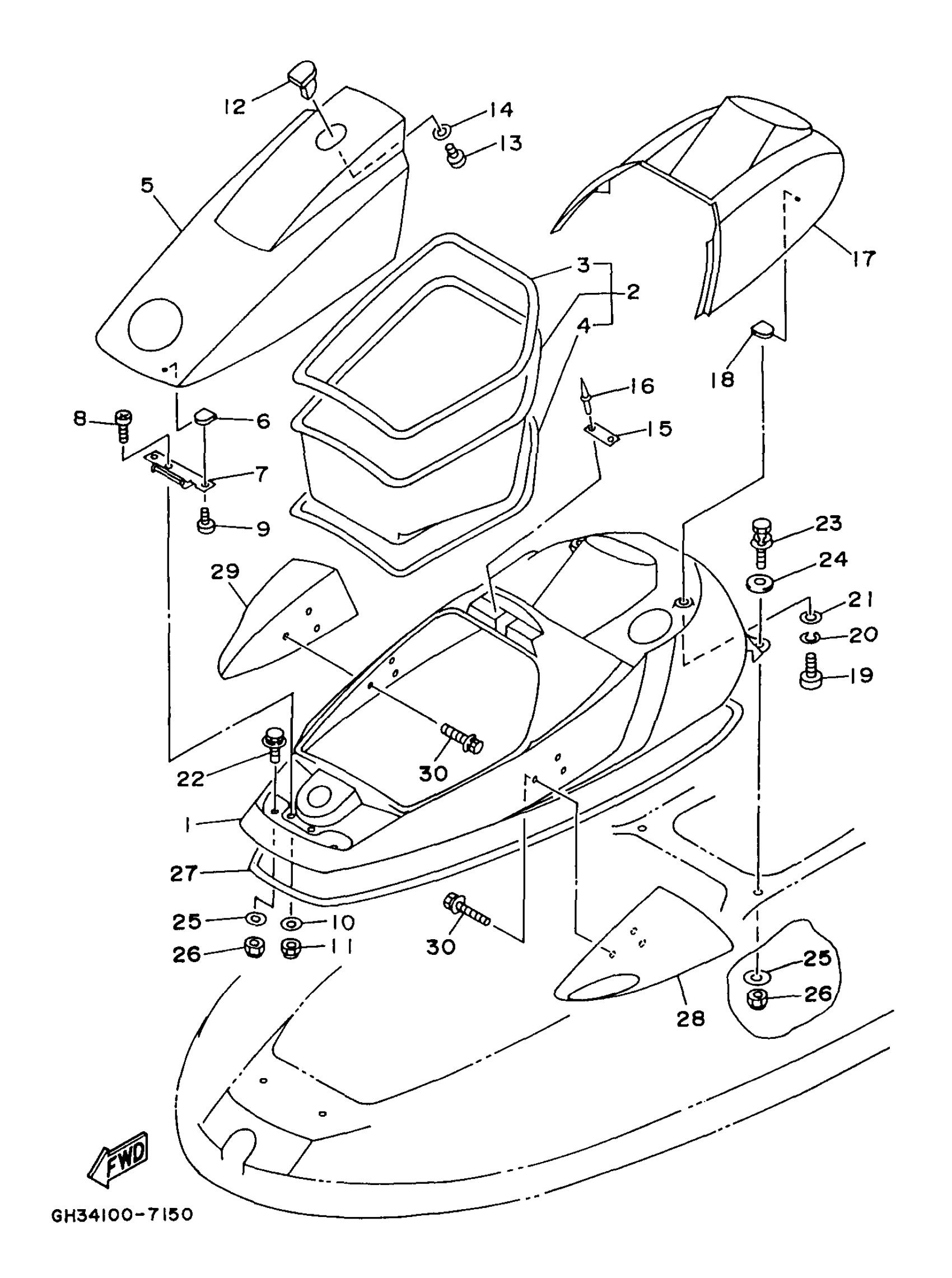

Yamaha WVT1100V (WAVE VENTURE 1100) GH34-35 1997 ENGINE HATCH Diagram

#

Description
Price

1

ENGINE HATCH COMP.

GJ3-U516A-00-P0

Unavailable

2

BOW LOCKER ASSEMBLY

GJ3-U475A-00-00

Unavailable

3

PACKING 4

GJ3-U266C-31-00

Unavailable

4

PACKING 4

GJ3-U266C-31-00

Unavailable

5

LID,ENG.HATCH (RED)

GH3-U517B-09-P0

Unavailable

6

NUT, SPRING(GJ3)

90183-06902-00

$8.53

7

HINGE, LID

GJ3-6517D-01-00

Unavailable

8

SCREW PAN HEAD

98580-06020-00

$4.89

9

SCREW

90149-069U2-00

Unavailable

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

11

NUT, SELF-LOCKING

95720-06300-00

$1.82

12

LOCK, LID

GJ3-6517C-01-00

Unavailable

13

SCREW

90149-059U3-00

Unavailable

14

. WASHER, PLAIN

92990-05200-00

$4.29

15

HOOK, LID LOCK

GJ3-6517F-00-00

Unavailable

16

RIVET (EU0)

90267-48938-00

$5.00

17

COVER,ENG.HATCH (RED)

GH3-U516N-00-P0

Unavailable

18

NUT, SPRING(GJ3)

90183-06902-00

$8.53

19

SCREW, WITH WASHER

97980-06320-00

Unavailable

20

WASHER, SPRING

92995-06100-00

$2.95

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

BOLT, WITH WASHER

90119-089U9-00

Unavailable

23

BOLT, WITH WASHER

90119-08829-00

$3.88

24

WASHER, PLATE

90201-099U1-00

$2.16

25

WASHER (FJ0)

90201-08929-00

Unavailable

26

. NUT, SELF-LOCKING

95720-08300-00

$3.33

27

PACKING 1

GJ3-U2663-01-00

Unavailable

28

MIRROR (LH)

GH3-U596B-00-00

Unavailable

29

MIRROR (RH)

GH3-U596C-00-00

Unavailable

30

BOLT WITH WASHER (EW2)

90119-06920-00

Unavailable
