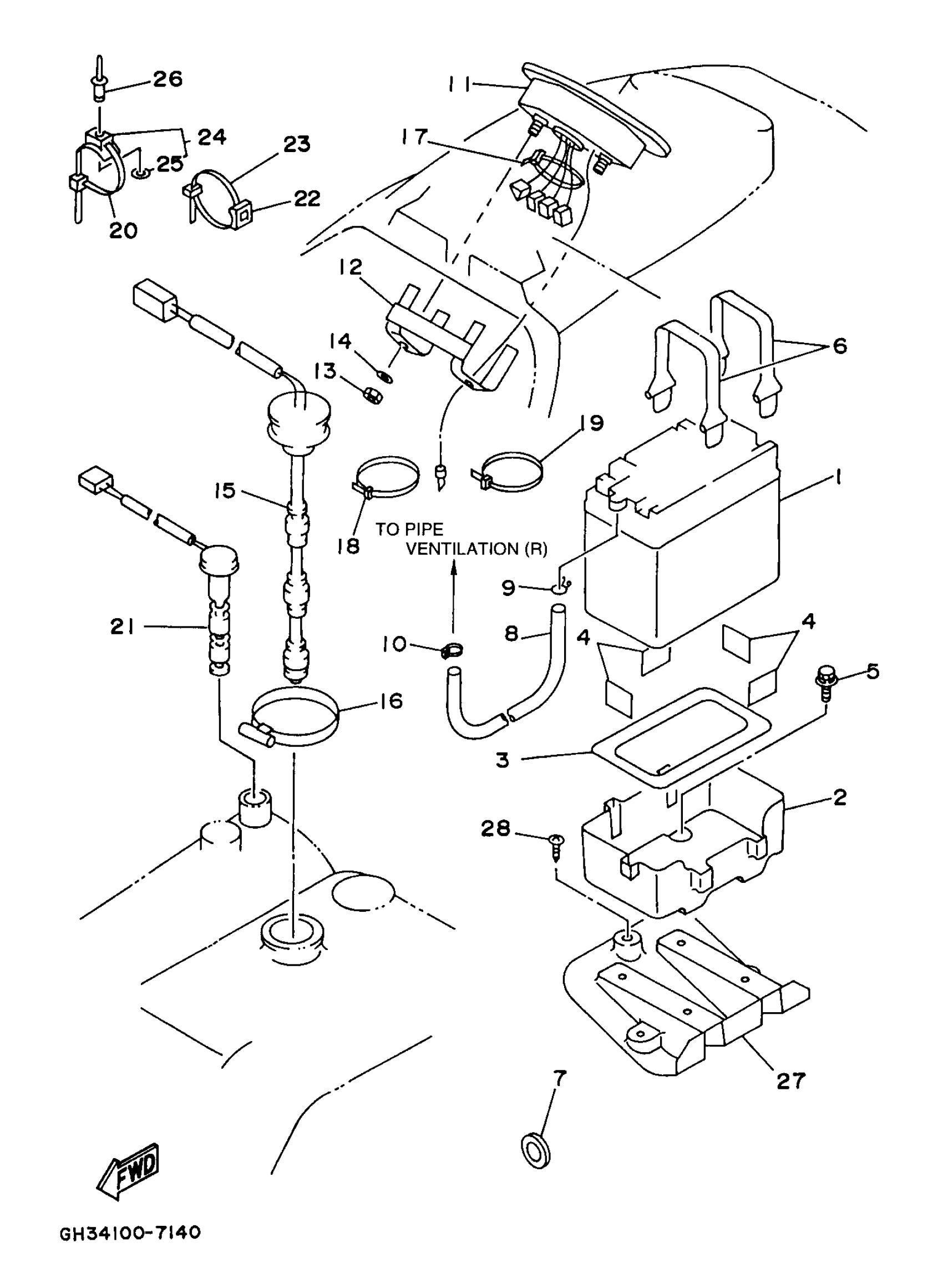

Yamaha WVT1100V (WAVE VENTURE 1100) GH34-35 1997 ELECTRICAL 2 Diagram

#

Description
Price

1

BATTERY ASSY

EU0-82110-08-00

Unavailable

2

CASE, BATTERY

EW2-68211-00-00

$38.49

3

PAD, BATTERY

F1S-U8221-00-00

$2.75

4

PAD, BATTERY

EU0-U8221-31-00

$1.65

5

BOLT WITH WASHER (EW2)

90119-06920-00

$4.55

6

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

7

GROMMET

FJ0-68222-01-00

Unavailable

8

HOSE

90699-50085-00

$24.98

9

CLIP

90467-08M10-00

Unavailable

10

CLAMP

90465-10098-00

$1.68

11

METER ASSEMBLY

GH3-6820A-00-00

Unavailable

12

BRACKET, METER

GJ1-68238-00-00

Unavailable

13

NUT, FLANGE

95720-05300-00

$1.28

14

. WASHER, PLAIN

92990-05200-00

$4.29

15

SENDER, FUEL

GJ1-6824B-00-00

Unavailable

16

BAND, HOSE 62

90601-162U5-00

$6.17

17

BAND (EU0)

90601-20009-00

$6.36

18

BAND

90601-20008-00

$7.27

19

BAND (EU0)

90601-20009-00

$6.36

20

BAND (EU0)

90601-20009-00

$6.36

21

SENDER, OIL

GJ1-6824C-01-00

Unavailable

22

BASE, CLAMP (FA8A)

90600-90004-00

Unavailable

23

BAND

90601-200U1-00

$2.77

24

CLAMP COMP (EU0)

90600-91736-00

Unavailable

25

. WASHER, PLAIN

90201-05925-00

Unavailable

26

RIVET, BLIND

90267-48802-00

$1.98

27

BATTERY CASE BASE ASSEMBLY COMP

GJ3-U821C-00-00

Unavailable

28

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable
