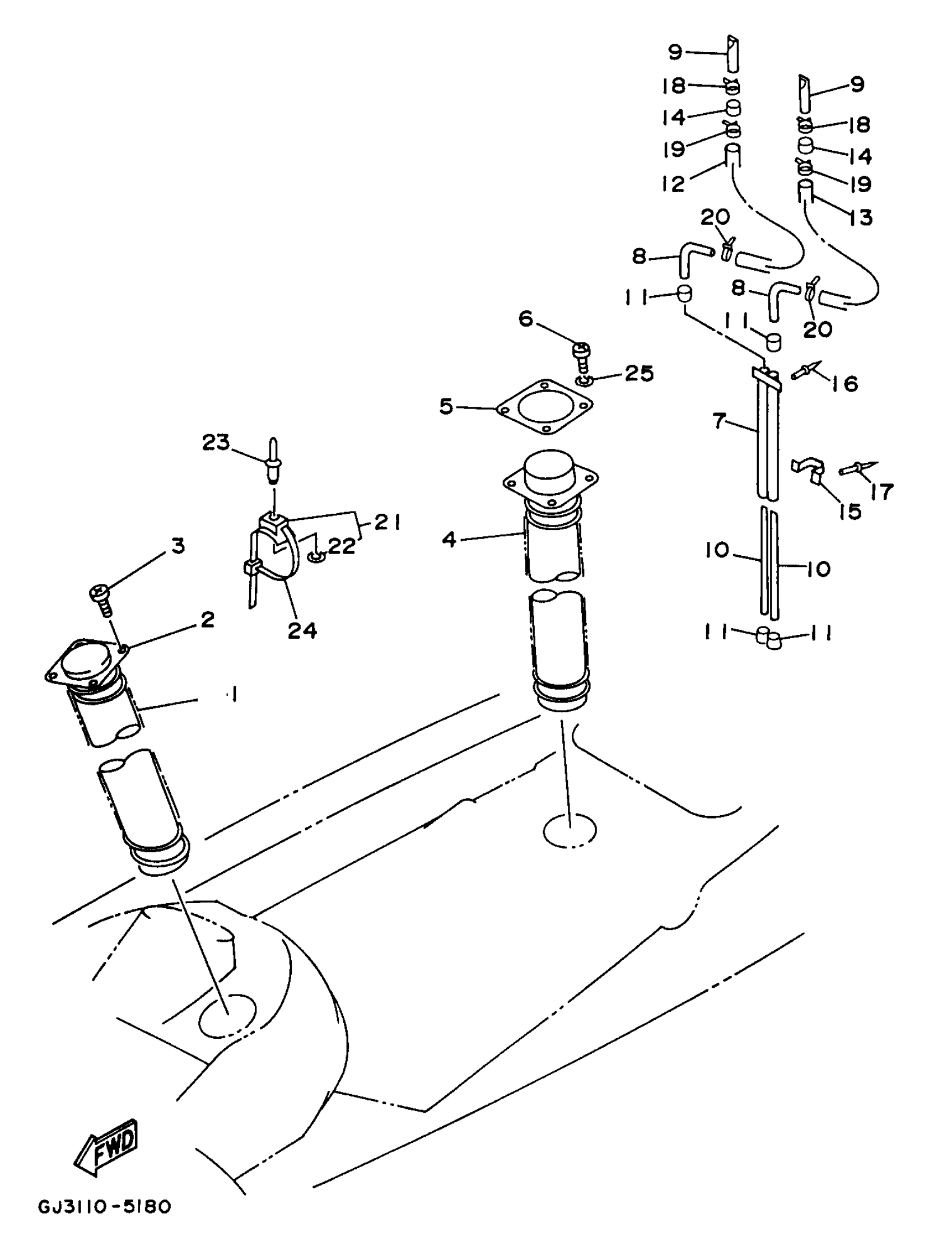

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 VENTILATION Diagram
#
Description
Price
1
HOSE, VENTILATOR 1
GJ3-U213F-02-00
Unavailable
2
BASE, AIR INTAKE
GJ3-62127-00-00
Unavailable
3
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
Unavailable
4
HOSE, VENTILATOR 2
GJ3-U213G-00-00
Unavailable
5
SEAL, AIR INTAKE
GJ3-62117-00-00
Unavailable
6
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
Unavailable
7
PIPE, VENTILATION
FJ0-62149-00-00
Unavailable
8
ELBOW, VENTILATOR 11
FJ0-62156-00-00
Unavailable
9
PIPE, VENTILATION 1
EW2-62149-00-00
Unavailable
10
ELBOW VENT 12
EU0-62156-32-00
Unavailable
11
CAP
EU0-62155-00-00
Unavailable
12
HOSE, AIR VENT
EU0-67856-50-00
Unavailable
13
HOSE, AIR VENT 3
GJ3-67856-10-00
Unavailable
14
HOSE, AIR VENT 3
GJ3-67856-00-00
Unavailable
15
SUPPORT
FJ0-62151-00-00
Unavailable
16
RIVET, BLIND
90267-489U7-00
Unavailable
17
RIVET, BLIND
90267-489U2-00
Unavailable
18
CLAMP
90465-10098-00
Unavailable
19
CLAMP
90465-10098-00
Unavailable
20
CLAMP
90465-10098-00
Unavailable
21
CLAMP COMP (EU0)
90600-91736-00
Unavailable
22
. WASHER, PLAIN
90201-05925-00
Unavailable
23
RIVET, BLIND
90267-48802-00
Unavailable
24
BAND
90601-20008-00
Unavailable
25
WASHER, PLAIN (FJ0)
90201-06930-00
Unavailable
