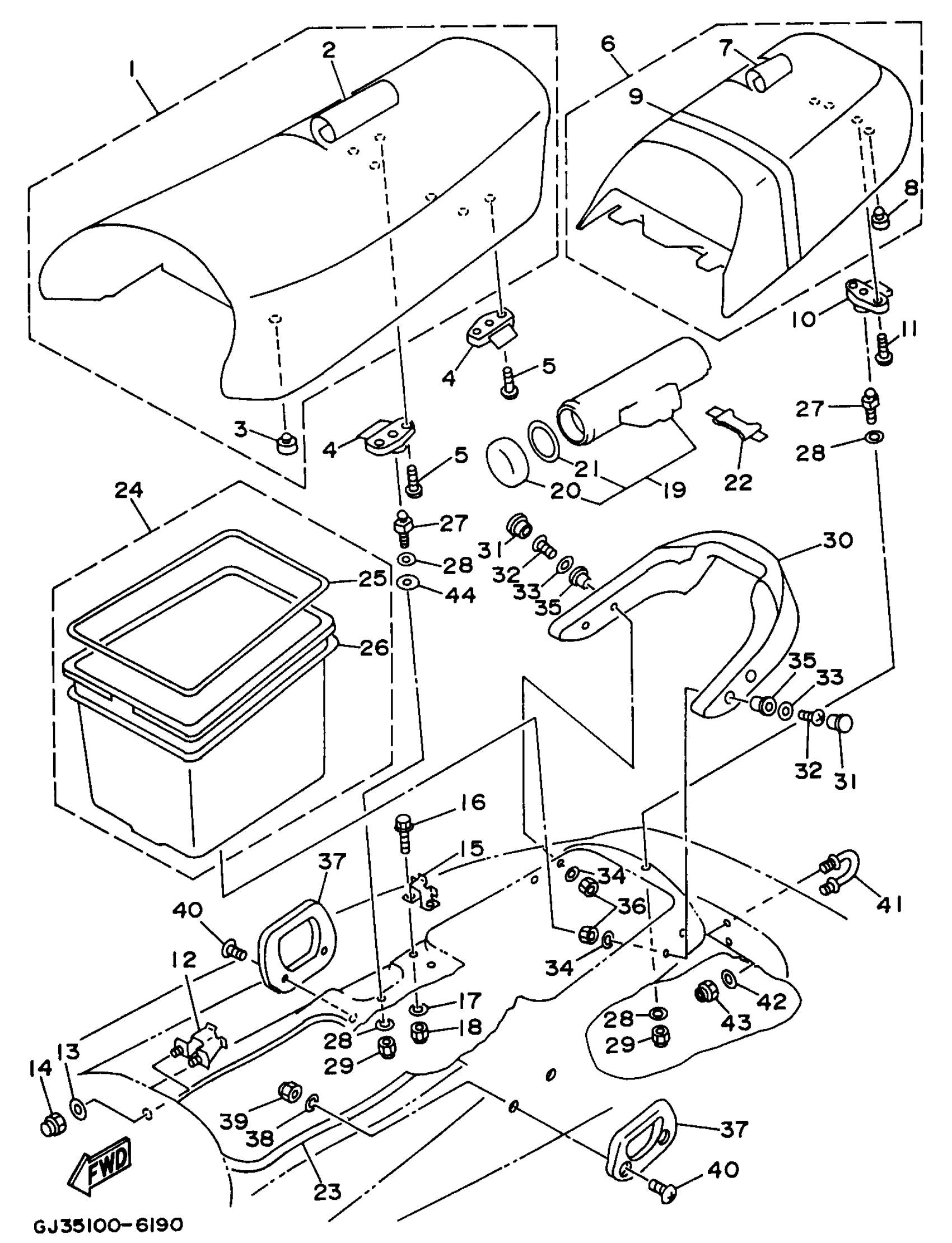

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 SEAT UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASY

GH3-U371A-00-00

Unavailable

2

. COVER, SEAT 1

GJ3-U371B-10-00

Unavailable

3

STOPPER MAIN STAND

278-27114-00-00

$7.90

4

SEAT LOCK ASSY

GJ3-63850-03-00

$69.68

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASY

GJ3-U372A-03-00

Unavailable

7

. COVER, SEAT

GJ3-U372B-00-00

Unavailable

8

STOPPER MAIN STAND

278-27114-00-00

$7.90

9

. BAND, SEAT COMP

GJ3-U373D-00-00

Unavailable

10

SEAT LOCK ASSY

GJ3-63850-03-00

$69.68

11

BOLT, WITH WASHER

90119-06808-00

$2.16

12

STAY, SEAT 1

GH3-6378C-00-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

14

NUT, SELF-LOCKING

95720-06300-00

$1.82

15

STAY, SEAT 2

GJ3-6378D-00-00

$27.99

16

BOLT, WITH WASHER

90119-06900-00

$4.09

17

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

18

NUT, SELF-LOCKING

95720-06300-00

$1.82

19

CASE 2 ASSEMBLY

EW2-65920-00-00

Unavailable

20

. CAP, CASE

EW2-65912-30-00

Unavailable

21

. PACKING, CASE

EW2-65913-00-00

$5.91

22

BAND,WATER LOCK

EU0-U756E-00-00

Unavailable

23

PACKING

GJ3-U2664-02-00

Unavailable

24

UNDER LOCKER ASSY

GJ3-U474A-01-00

Unavailable

25

. PACKING 3

GJ3-6266B-00-00

Unavailable

26

PACKING 4

GJ3-U266C-02-00

$24.98

27

PIN

GH1-63774-01-00

$22.71

28

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

29

NUT, NYLON (FN8)

95720-10300-00

Unavailable

30

GRIP, HAND

GJ3-6271B-10-00

Unavailable

31

CAP, GRIP HAND (LH)

GJ3-6271C-10-00

Unavailable

32

SCREW, PAN HEAD(6B0)

97885-06025-00

$4.79

33

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

34

WASHER, PLATE

90201-06020-00

Unavailable

35

COLLAR

90387-06914-00

Unavailable

36

NUT, SELF-LOCKING

95720-06300-00

$1.82

37

GRIP,ASSIST

GJ3-U271E-10-00

$57.62

38

WASHER, PLAIN

92990-08200-00

$2.36

39

. NUT, SELF-LOCKING

95720-08300-00

$3.33

40

SCREW

90149-08993-00

Unavailable

41

BOW EYE 2 (C)

A00-61626-40-00

$43.92

42

WASHER, PLAIN

92990-08200-00

$2.36

43

. NUT, SELF-LOCKING

95720-08300-00

$3.33

44

TAPE

GJ3-65578-00-00

Unavailable
