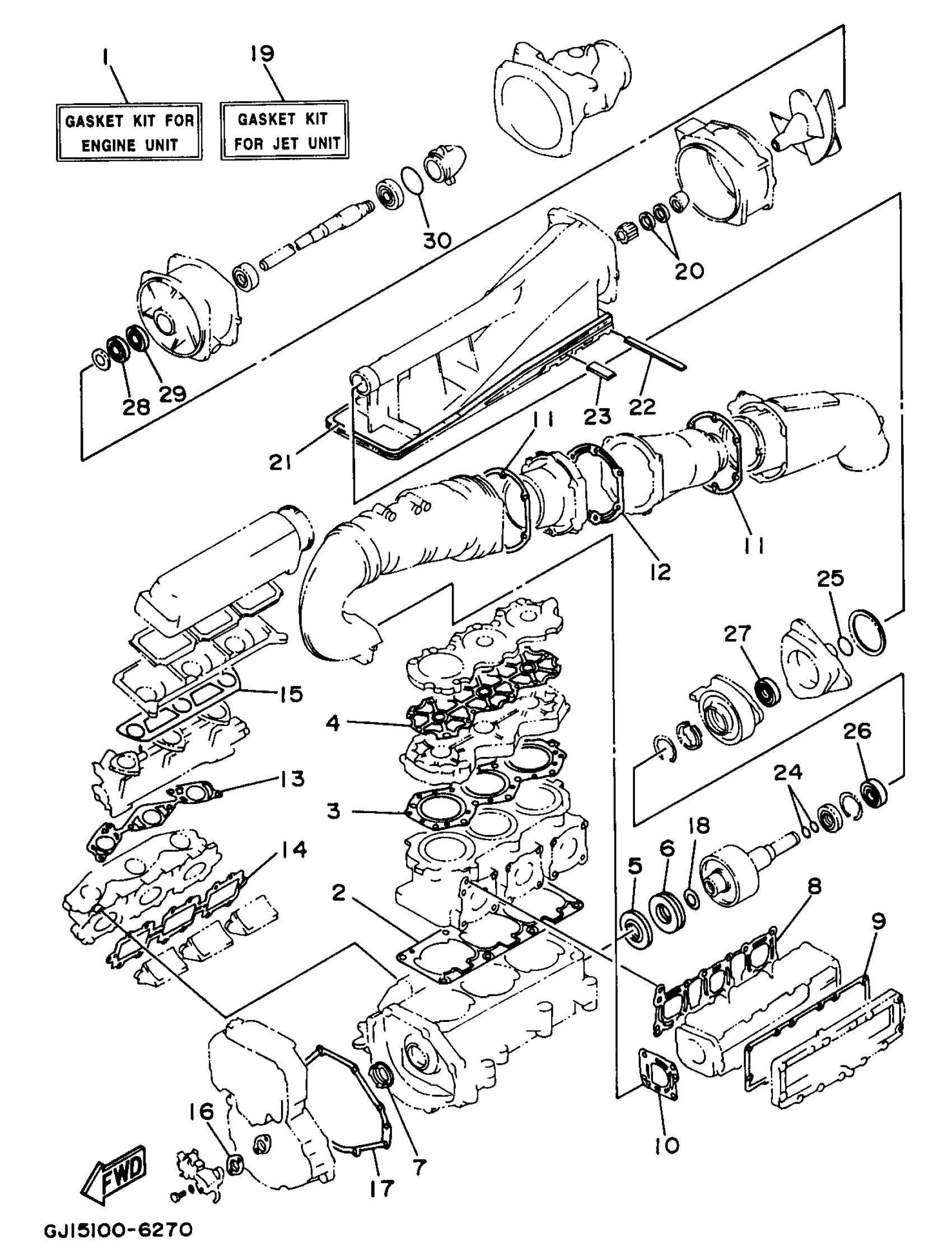

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT ENGINE

63M-W0001-01-00

Unavailable

2

GASKET, CYLINDER

63M-11351-01-00

$31.57

3

GASKET, CYLINDER HEAD 1

63M-11181-01-00

$124.23

4

GASKET, HEAD COVER 1

63M-11193-01-00

$53.99

5

. OIL SEAL

93102-36M33-00

$15.55

6

. OIL SEAL

93101-36M46-00

$17.41

7

. OIL SEAL

93103-32M01-00

$14.81

8

GASKET, EXHAUST PIPE

63M-14613-01-00

Unavailable

9

GASKET, MUFFLER DAMPER 1

63M-14739-00-00

$60.49

10

GASKET, MUFFLER DAMPER 2

63M-14749-01-00

$30.37

11

GASKET, EXHAUST OUTER COVER

63M-41114-00-00

$28.52

12

GASKET, EXHAUST INNER COVER

63M-41122-00-00

$31.11

13

GASKET, MANIFOLD

63M-13556-00-00

$39.38

14

GASKET

63M-13566-00-00

$37.86

15

GASKET, AIR COOLER COVER 1

63M-13674-00-00

$10.49

16

GASKET, PUMP CASE

63M-13116-00-00

$2.80

17

GASKET, HOLE COVER

63M-81365-00-00

$50.57

18

SEAL

62T-45127-01-00

Unavailable

19

GASKET KIT FOR JET UNIT

63M-W0001-20-00

Unavailable

20

OIL SEAL(6R8)

93102-18M35-00

Unavailable

21

. FELT, PACKING

6R8-51367-01-00

$10.36

22

. FELT, PACKING

63M-51367-00-00

$4.55

23

. FELT, PACKING

63M-51368-00-00

$3.64

24

O-RING(6R7)

93210-17MA4-00

Unavailable

25

O-RING

93210-35M72-00

Unavailable

26

OIL SEAL(62T)

93101-25M55-00

Unavailable

27

OIL SEAL

93101-24001-00

Unavailable

28

OIL SEAL(6R7)

93102-25M34-00

Unavailable

29

OIL SEAL(6R7)

93101-25M50-00

Unavailable

30

. O-RING

93210-46M16-00

$7.15
