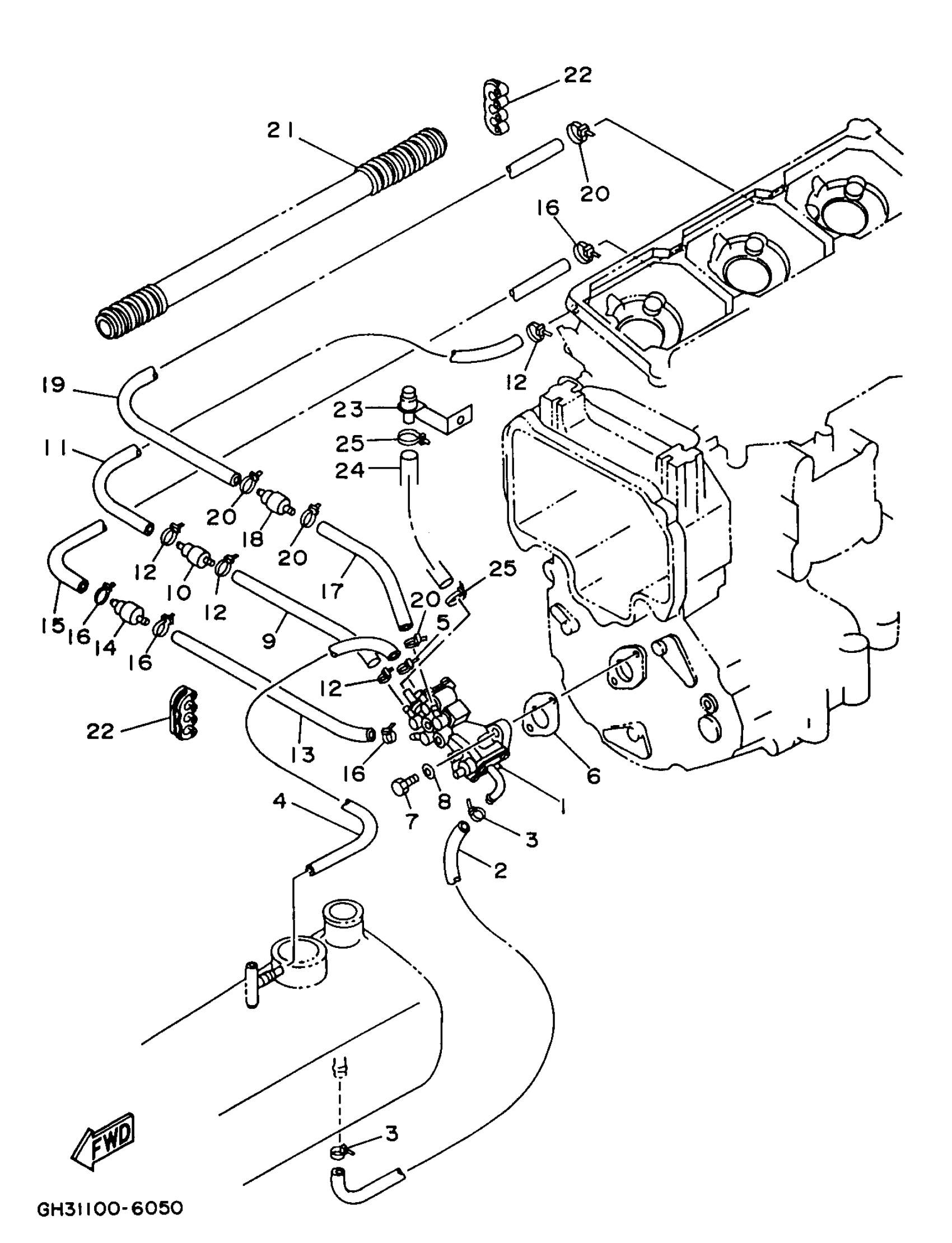

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSEMBLY

64T-13200-00-00

Unavailable

2

HOSE (L700)

90445-117F2-00

$22.86

3

CLAMP

90465-10098-00

$1.68

4

HOSE (L770)

90445-07006-00

$24.46

5

CLAMP

90465-10098-00

$1.68

6

GASKET, PUMP CASE

63M-13116-00-00

$2.80

7

BOLT(7U8)

97080-06020-00

$3.63

8

WASHER, PLAIN (646)

92990-06600-00

$1.84

9

HOSE(62T)

90446-07M48-00

Unavailable

10

VALVE, CHECK

6R3-13183-10-00

$39.61

11

HOSE(62T)

90446-07M48-00

Unavailable

12

CLAMP

90465-10098-00

$1.68

13

HOSE(62T)

90446-07M48-00

Unavailable

14

VALVE, CHECK

6R3-13183-10-00

$39.61

15

HOSE(62T)

90446-07M48-00

Unavailable

16

CLAMP

90465-10098-00

$1.68

17

HOSE(62T)

90446-07M48-00

Unavailable

18

VALVE, CHECK

6R3-13183-10-00

$39.61

19

HOSE(62T)

90446-07M48-00

Unavailable

20

CLAMP

90465-10098-00

$1.68

21

HOSE

90446-24M83-00

Unavailable

22

CLAMP

90464-07M05-00

$2.80

23

BOLT, BREATHER

64T-13185-00-00

Unavailable

24

HOSE (L390)

90445-115K6-00

Unavailable

25

CLAMP

90465-10098-00

$1.68
