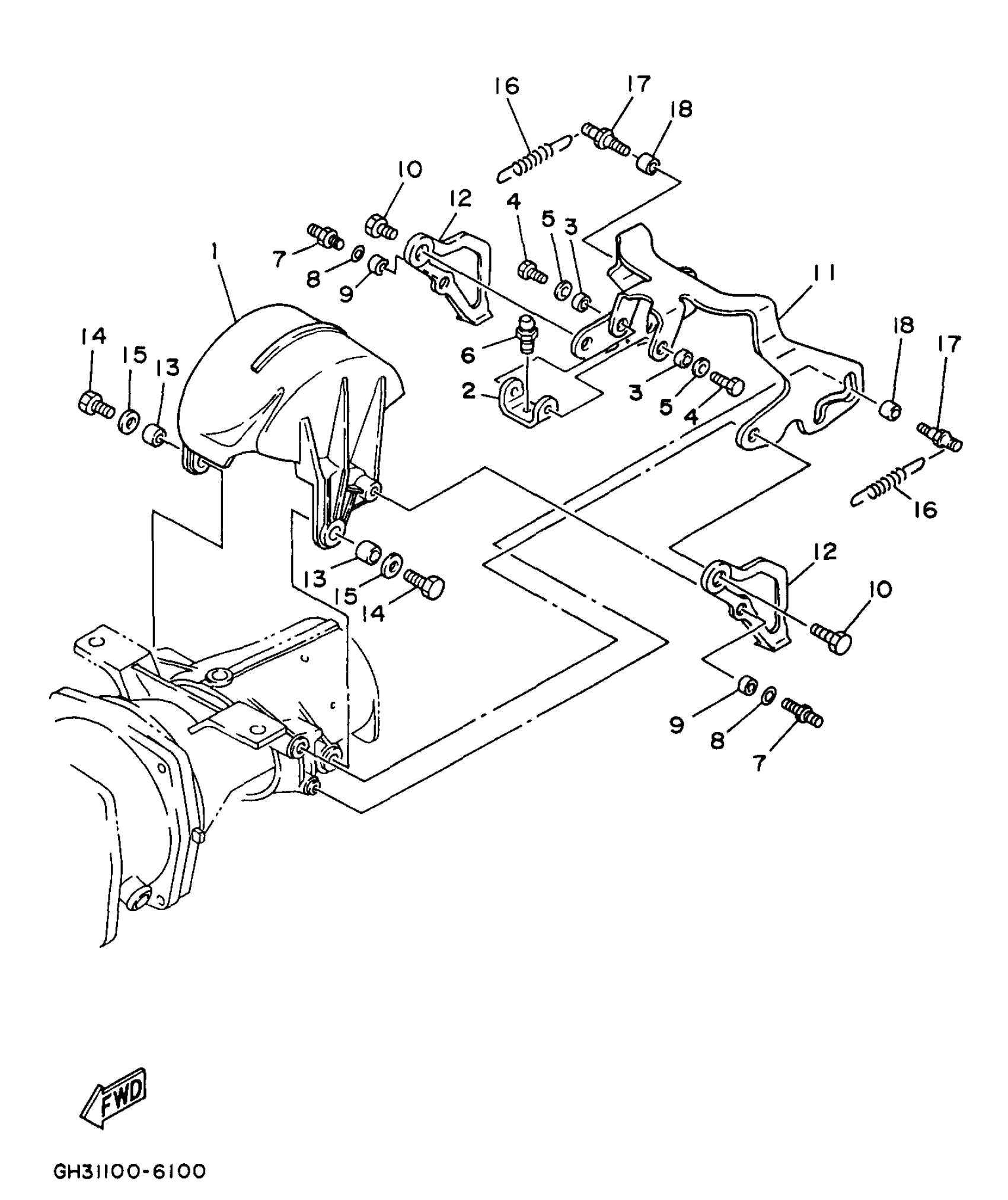

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 JET UNIT 3 Diagram

#

Description

Price

1

GATE, REVERSE

6R8-51314-02-94

Unavailable

2

LEVER, SHIFT ROD

6R8-44125-00-00

Unavailable

3

COLLAR(6R8)

90387-06M24-00

Unavailable

4

BOLT(GH1)

97080-06012-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

BOLT, JOINT

6R8-42316-00-00

Unavailable

7

PIN

6R8-44184-00-00

Unavailable

8

WASHER, PLATE

90201-06M31-00

Unavailable

9

COLLAR(6R8)

90387-06M30-00

Unavailable

10

BOLT

90109-08M73-00

Unavailable

11

LEVER, SHIFT ROD

64T-44121-00-00

Unavailable

12

PLATE 1

64T-51345-00-00

Unavailable

13

COLLAR

90387-08M27-00

Unavailable

14

BOLT (62G)

97095-08025-00

$8.49

15

.. WASHER, PLATE

92990-08600-00

Unavailable

16

SPRING, TENSION

90506-12M35-00

Unavailable

17

PIN

6R8-44137-A0-00

Unavailable

18

COLLAR(64T)

90387-08M26-00

Unavailable
