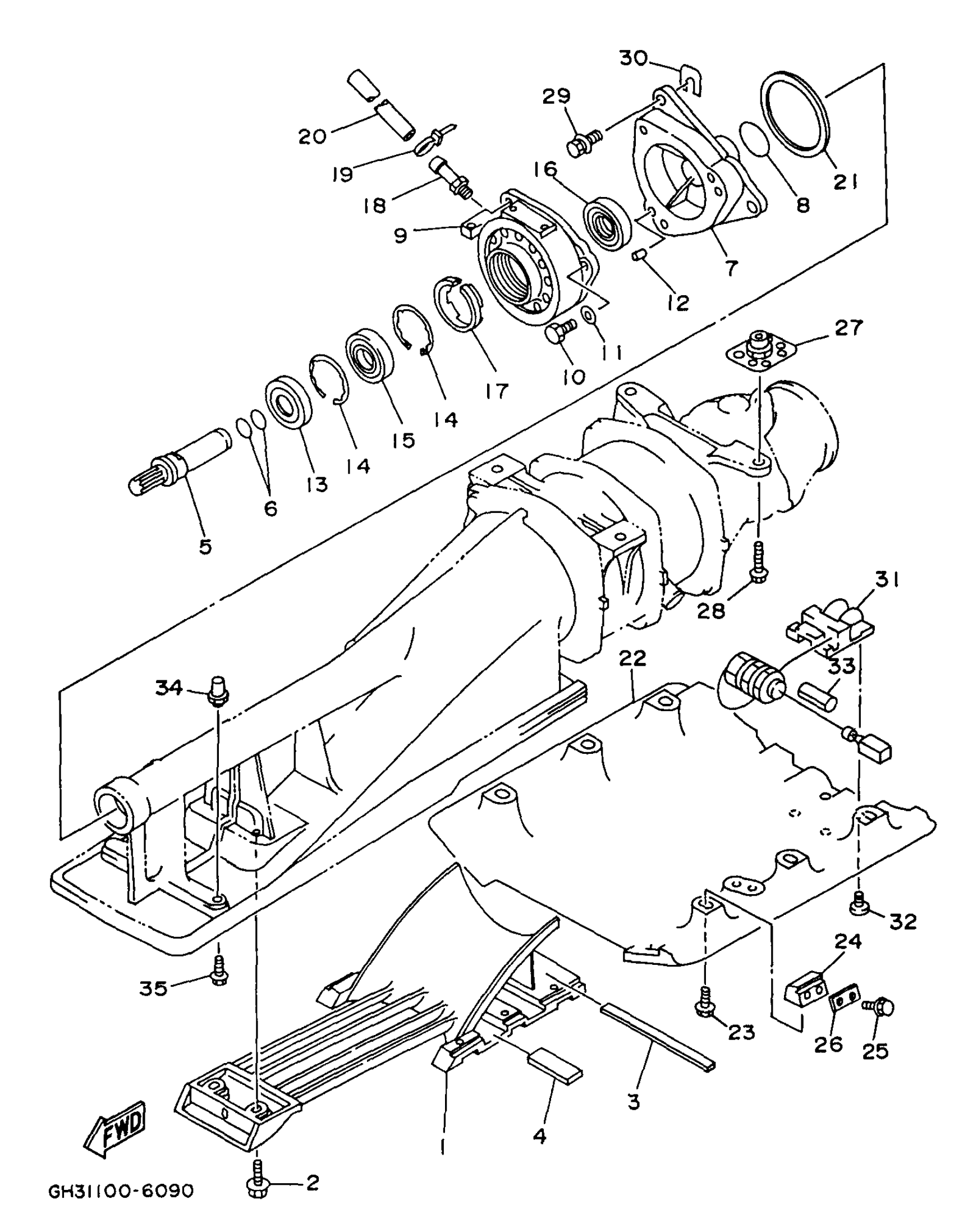

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 JET UNIT 2 Diagram

#

Description
Price

1

SCREEN, INTAKE

64T-51333-01-94

Unavailable

2

BOLT, WITH WASHER(6L4)

90119-06M19-00

Unavailable

3

. FELT, PACKING

63M-51367-00-00

$4.55

4

. FELT, PACKING

63M-51368-00-00

$3.64

5

SHAFT, COUPLER

63M-51323-01-00

$360.59

6

O-RING(6R7)

93210-17MA4-00

$4.65

7

HOUSING, BEARING

62G-45331-01-94

Unavailable

8

O-RING

93210-35M72-00

$11.39

9

HOUSING, BEARING

61X-G5332-00-00

$134.54

10

BOLT (62G)

97095-08025-00

$6.12

11

.. WASHER, PLATE

92990-08600-00

$2.17

12

PIN, DOWEL (614)

93606-12019-00

$3.05

13

OIL SEAL(62T)

93101-25M55-00

$24.36

14

CIRCLIP

93430-47M04-00

$5.18

15

BEARING(62G)

93306-205U6-00

$55.29

16

OIL SEAL

93101-24001-00

Unavailable

17

SPACER

63M-51348-00-00

Unavailable

18

NIPPLE, HOSE

61L-45378-00-00

$11.35

19

CLAMP

90465-10098-00

$1.68

20

HOSE (L445)

90445-09M21-00

Unavailable

21

SEAL

6K8-45127-00-00

$15.49

22

PLATE 2

GJ3-6273B-01-00

Unavailable

23

BOLT, WITH WASHER

90119-08829-00

$3.88

24

PACKING

GJ1-62733-00-00

$44.99

25

BOLT, WITH WASHER

90119-08907-00

$5.45

26

PACKING 1

GJ1-62663-00-00

Unavailable

27

NUT

90179-10925-00

$5.00

28

BOLT, WITH WASHER

90119-109U8-00

Unavailable

29

BOLT, WITH WASHER

90119-08907-00

$5.45

30

SHIM (T=0.5)

GD0-67249-A0-00

$4.99

30

SHIM (T=1.0)

GD0-67249-00-10

Unavailable

30

SHIM (0.5)

GD0-U7249-00-05

$1.94

30

SHIM (0.5)

GD0-U7249-00-05

$1.94

31

SENSOR SPEED

GJ1-U8K31-03-00

$131.73

32

SCREW, PAN HEAD(3YL)

98580-05014-00

$6.99

33

GR0MMET

GJ1-6822E-00-00

Unavailable

34

NUT(FJ0)

90179-06947-00

Unavailable

35

BOLT, WITH WASHER

90119-06896-00

$5.03
