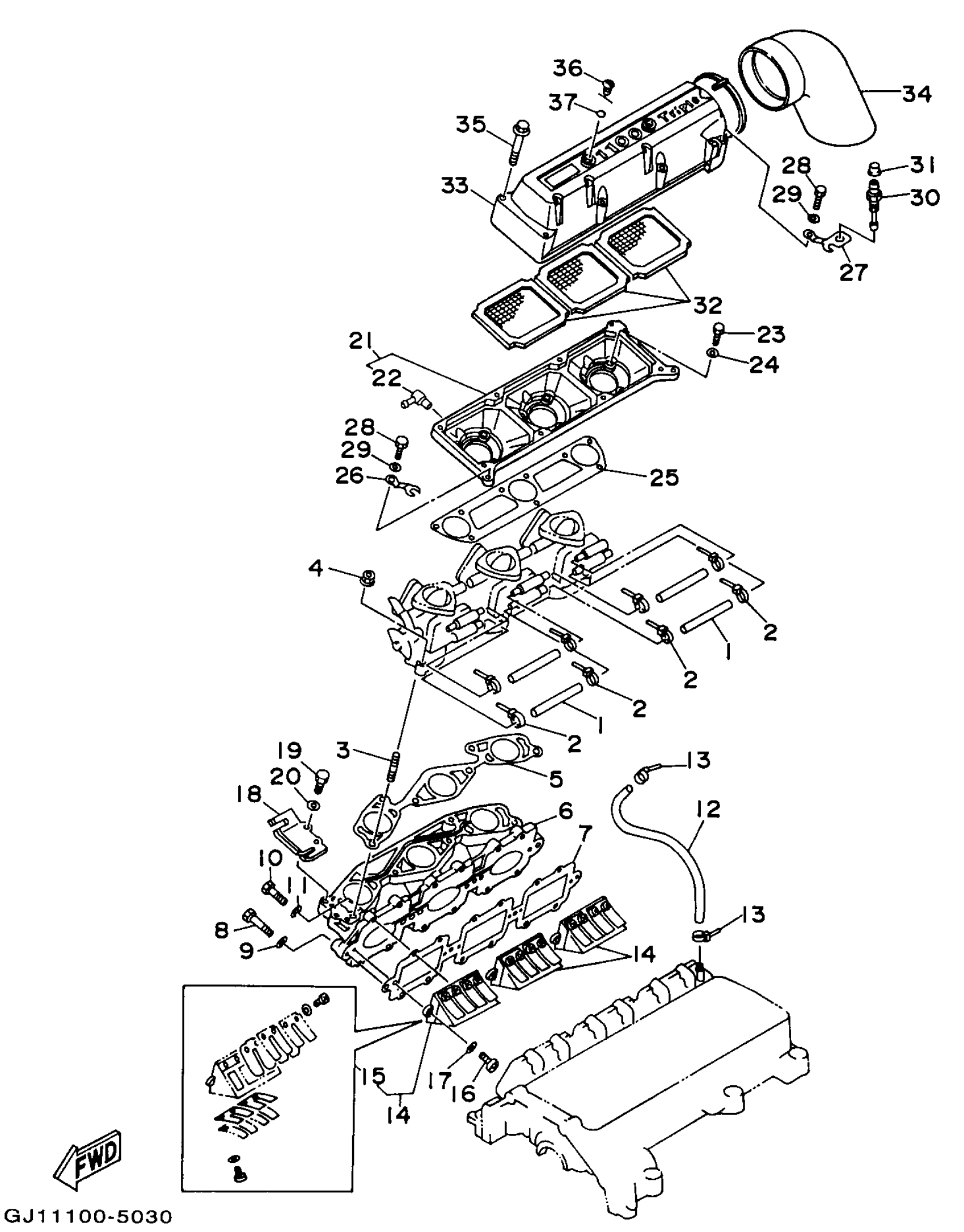

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 INTAKE Diagram
#
1
HOSE (L400)
90445-10M43-00
Unavailable
2
CLAMP
90465-10098-00
Unavailable
3
BOLT,STUD
90116-08M55-00
Unavailable
4
NUT
90179-08M15-00
Unavailable
5
GASKET, MANIFOLD
63M-13556-00-00
Unavailable
6
MANIFOLD, INTAKE
63M-13555-00-94
Unavailable
7
GASKET
63M-13566-00-00
Unavailable
8
BOLT(3RV)
97014-06035-00
$2.75
9
WASHER, PLAIN (646)
92990-06600-00
$2.80
10
BOLT(62Y)
97013-06025-00
$1.06
11
WASHER, PLAIN (646)
92990-06600-00
$2.80
12
PIPE 4
63M-24314-00-00
Unavailable
13
CLAMP
90465-10098-00
Unavailable
14
REED VALVE ASSEMBLY
63M-13610-00-00
Unavailable
15
. REED SET
63M-W0004-00-00
Unavailable
16
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
17
WASHER, PLAIN (646)
92990-05600-00
Unavailable
18
PLATE
62T-14527-01-00
Unavailable
19
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
20
WASHER, PLAIN (646)
92990-06600-00
$2.80
21
COVER, CARBURETOR 2
63M-14284-00-98
Unavailable
22
NIPPLE, HOSE
6E5-11372-01-00
Unavailable
23
BOLT(62Y)
97013-06020-00
Unavailable
24
WASHER, PLAIN (646)
92990-06600-00
$2.80
25
GASKET, AIR COOLER COVER 1
63M-13674-00-00
Unavailable
26
PLATE
63M-14255-00-00
Unavailable
27
PLATE
63M-14255-10-00
Unavailable
28
BOLT (661)
97013-06012-00
Unavailable
29
WASHER, PLAIN (646)
92990-06600-00
$2.80
30
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
31
CAP, GREASE NIPPLE
663-45119-01-00
Unavailable
32
ELEMENT, AIR CLEANER
62T-14451-00-00
Unavailable
33
COVER, CARBURETOR 1
63M-14283-00-00
Unavailable
34
PIPE
63M-14419-00-00
Unavailable
35
BOLT, WITH WASHER
90119-05M02-00
Unavailable
36
GROMMET
62T-14435-00-00
Unavailable
37
. O-RING
93210-13M63-00
Unavailable
