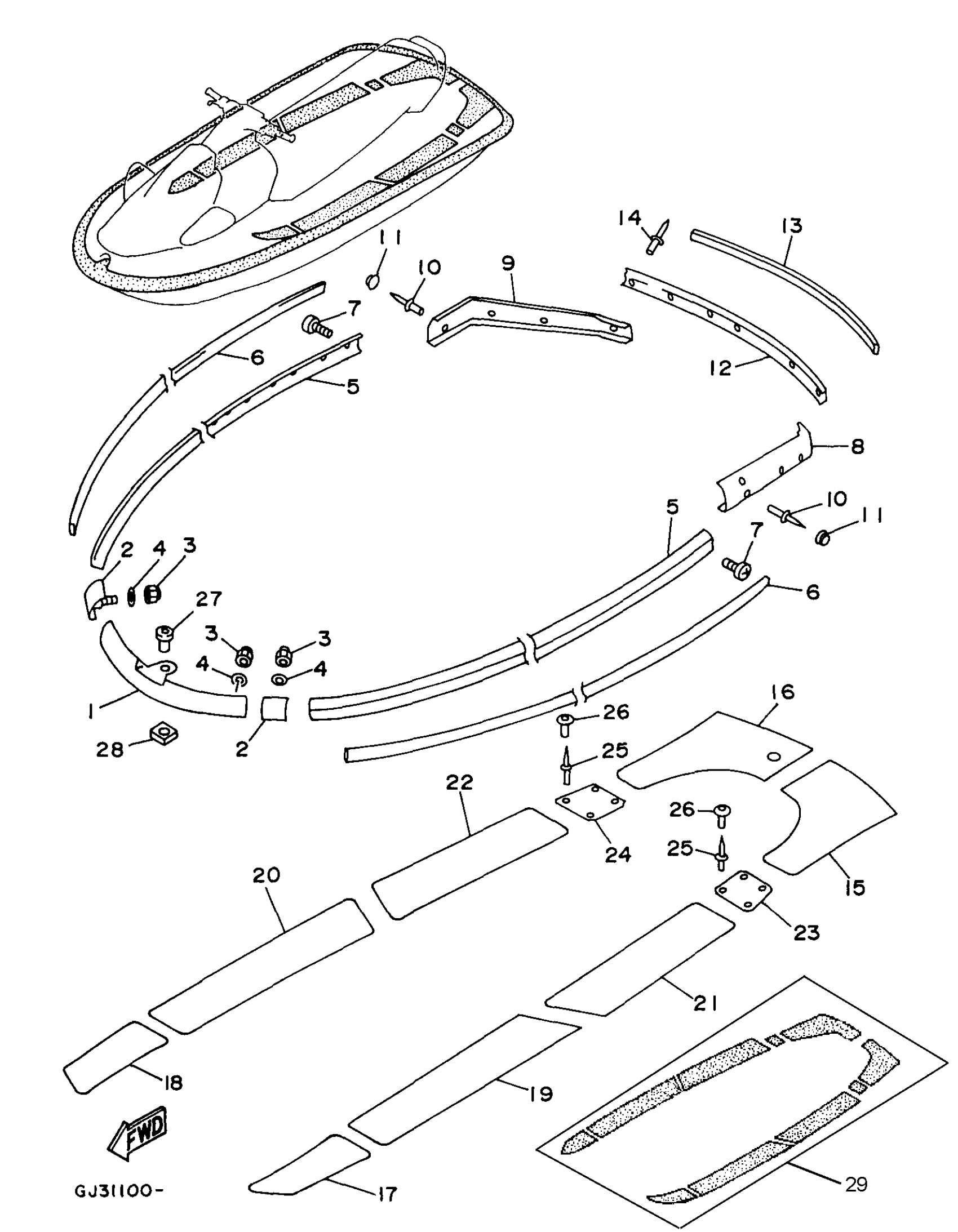

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 GUNWALE MAT Diagram

#

Description
Price

1

BOW GUNWALE COMP.

GJ3-U2501-10-00

Unavailable

2

J0INT, GUNWALE

GJ1-6252A-30-00

Unavailable

3

NUT, SELF-LOCKING

95720-06300-00

$1.82

4

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

5

GUNWALE, SIDE

GJ3-U2512-11-00

Unavailable

6

INNER, GUNWALE

GJ3-U2519-10-00

Unavailable

7

SCREW,TAPPING

90169-059U1-00

$1.05

8

GUNWALE, STERN 1(PURPLE)

GJ3-U251D-11-00

Unavailable

9

GUNWALE, STERN 2(PURPLE)

GJ3-U251E-11-00

Unavailable

10

RIVET, BLIND

90267-489U8-00

$0.99

11

CAP, HEAD

GH1-6354D-40-00

Unavailable

12

COVER, GUNWALE 1

GJ3-U252C-10-00

Unavailable

13

COVER, GUNWALE 2

GJ3-U252D-10-00

Unavailable

14

RIVET, BLIND

90267-489U8-00

$0.99

15

MAT, UPPER

GJ3-63581-31-00

$63.62

16

MAT, UPPER

GJ3-63581-41-00

$74.23

17

MAT, STEP 1

GJ3-U351H-11-00

Unavailable

18

MAT, STEP 1

GJ3-U351H-21-00

Unavailable

19

MAT, STEP 2

GJ3-U351J-11-00

Unavailable

20

MAT, STEP 2

GJ3-U351J-21-00

Unavailable

21

MAT, STEP 3

GJ3-U351K-30-00

Unavailable

22

MAT, STEP 3

GJ3-U351K-40-00

Unavailable

23

MAT, STEP 4

GJ3-6351M-30-00

Unavailable

24

MAT, STEP 4

GJ3-6351M-40-00

Unavailable

25

RIVET, BLIND

90267-48802-00

$1.98

26

PLUG, MUSHROOM

GJ3-U352E-20-00

Unavailable

27

ROPE HOLE

FN8-61651-01-00

$5.00

28

NUT

EU0-61652-00-00

$11.48

29

MAT KIT BLACK

GU2-MATKT-00-BK

Unavailable
