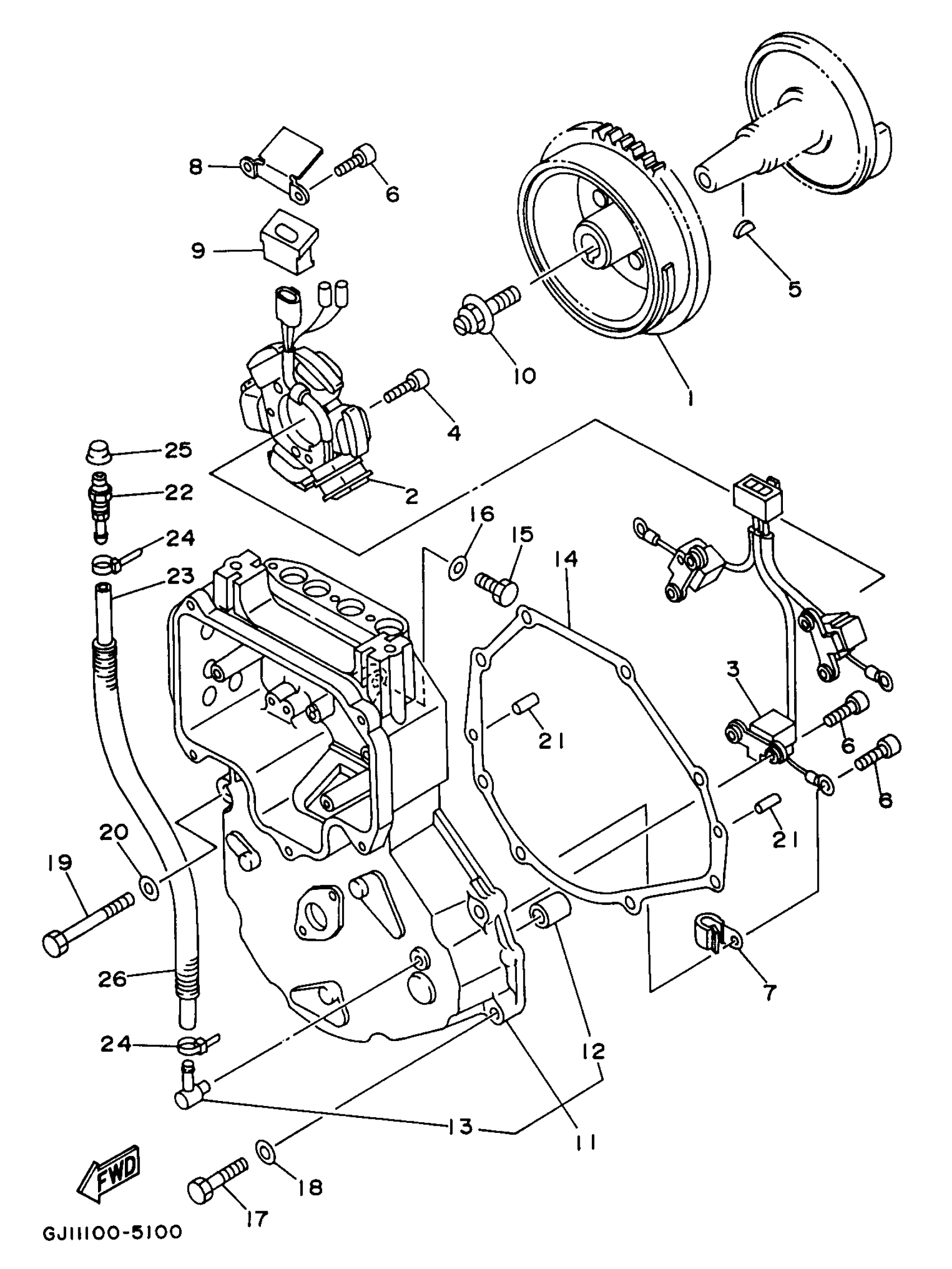

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSY

63M-85550-01-00

Unavailable

2

STATOR ASSEMBLY

63M-85510-00-00

Unavailable

3

COIL, PULSER

63M-85580-00-00

Unavailable

4

BOLT,SOCKET

91317-06025-00

$5.60

5

KEY, WOODRUFF

90280-05001-00

$12.49

6

BOLT,SOCKET

91318-06014-00

$0.38

7

. CLAMP

90465-06M28-00

Unavailable

8

CLAMP

63M-81328-00-00

Unavailable

9

GROMMET

63M-85564-00-00

Unavailable

10

BOLT(63M)

90109-10M72-00

Unavailable

11

COVER, FLYWHEEL

63M-81337-00-4D

Unavailable

12

. BUSH, SOLID

90380-12M29-00

Unavailable

13

. NIPPLE, HOSE

676-11372-00-00

Unavailable

14

GASKET, HOLE COVER

63M-81365-00-00

Unavailable

15

BOLT (62G)

97095-08025-00

$8.49

16

.. WASHER, PLATE

92990-08600-00

Unavailable

17

BOLT, HEXAGON (FJ1)

97080-08030-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

Unavailable

19

BOLT, HEXAGON

97095-08055-00

Unavailable

20

.. WASHER, PLATE

92990-08600-00

Unavailable

21

PIN, DOWEL (614)

93606-12019-00

Unavailable

22

NIPPLE, GREASE

61L-5169A-00-00

Unavailable

23

HOSE (L445)

90445-09M21-00

Unavailable

24

CLAMP

90465-10098-00

Unavailable

25

CAP, GREASE NIPPLE

663-45119-01-00

Unavailable

26

HOSE(6TC)

90446-14M45-00

Unavailable
