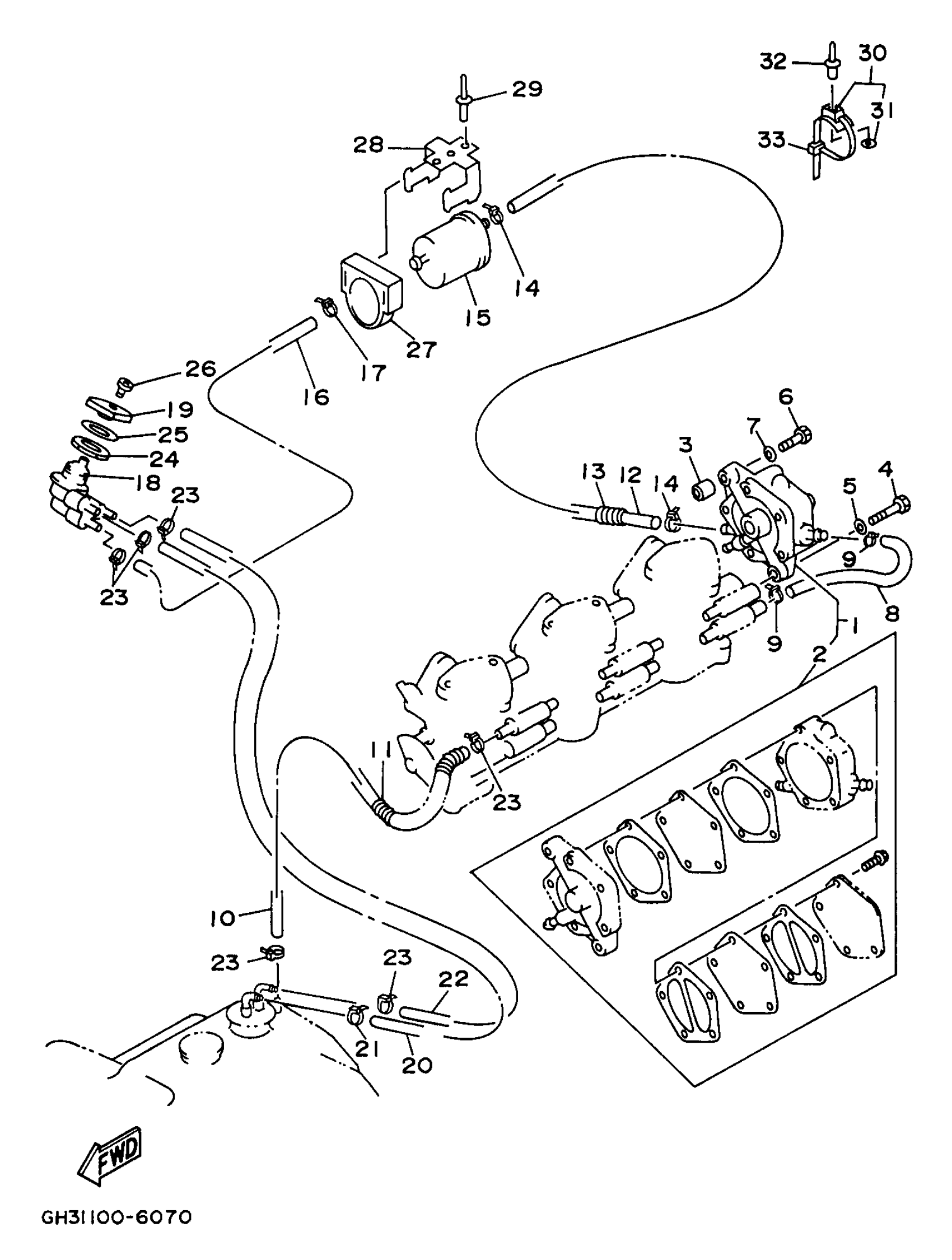

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 FUEL Diagram
#
1
FUEL PUMP ASSEMBLY
63M-24410-00-00
Unavailable
2
. FUEL PUMP REPAIR KIT
63M-W2442-00-00
Unavailable
3
COLLAR
90387-06M44-00
Unavailable
4
BOLT(J52)
97080-06035-00
Unavailable
5
WASHER, PLAIN (646)
92990-06600-00
$2.80
6
BOLT
97095-06022-00
Unavailable
7
WASHER, PLAIN (646)
92990-06600-00
$2.80
8
PIPE 3
63M-24313-00-00
Unavailable
9
CLAMP
90465-10098-00
Unavailable
10
HOSE (L1040)
90445-10MA9-00
$68.99
11
HOSE(6TC)
90446-14M51-00
$7.49
12
HOSE (L590)
90445-10020-00
Unavailable
13
HOSE(64T)
90446-14M62-00
$7.49
14
CLAMP
90465-10098-00
Unavailable
15
FILTER ASSY
6K8-24560-21-00
Unavailable
16
HOSE (L1700)
90445-10M87-00
Unavailable
17
CLAMP
90465-10098-00
Unavailable
18
FUEL COCK ASSY 1
6K8-24500-03-00
Unavailable
19
LEVER, COCK
6R7-24524-00-00
Unavailable
20
HOSE (L400)
90445-10M43-00
Unavailable
21
CLAMP
90465-10098-00
Unavailable
22
HOSE (L400)
90445-10M43-00
Unavailable
23
CLAMP
90465-10098-00
Unavailable
24
NUT, HEXAGON (1E6)
90170-22187-00
Unavailable
25
WASHER, PLATE
90202-229U1-00
Unavailable
26
SCREW, BIND
98980-04008-00
Unavailable
27
HOLDER
EU0-67817-00-00
Unavailable
28
BRACKET, FUEL FILTER
FN8-67816-00-00
Unavailable
29
RIVET (EU0)
90267-48938-00
Unavailable
30
CLAMP COMP (EU0)
90600-91736-00
Unavailable
31
. WASHER, PLAIN
90201-05925-00
Unavailable
32
RIVET, BLIND
90267-48802-00
Unavailable
33
BAND (EU0)
90601-20009-00
Unavailable
