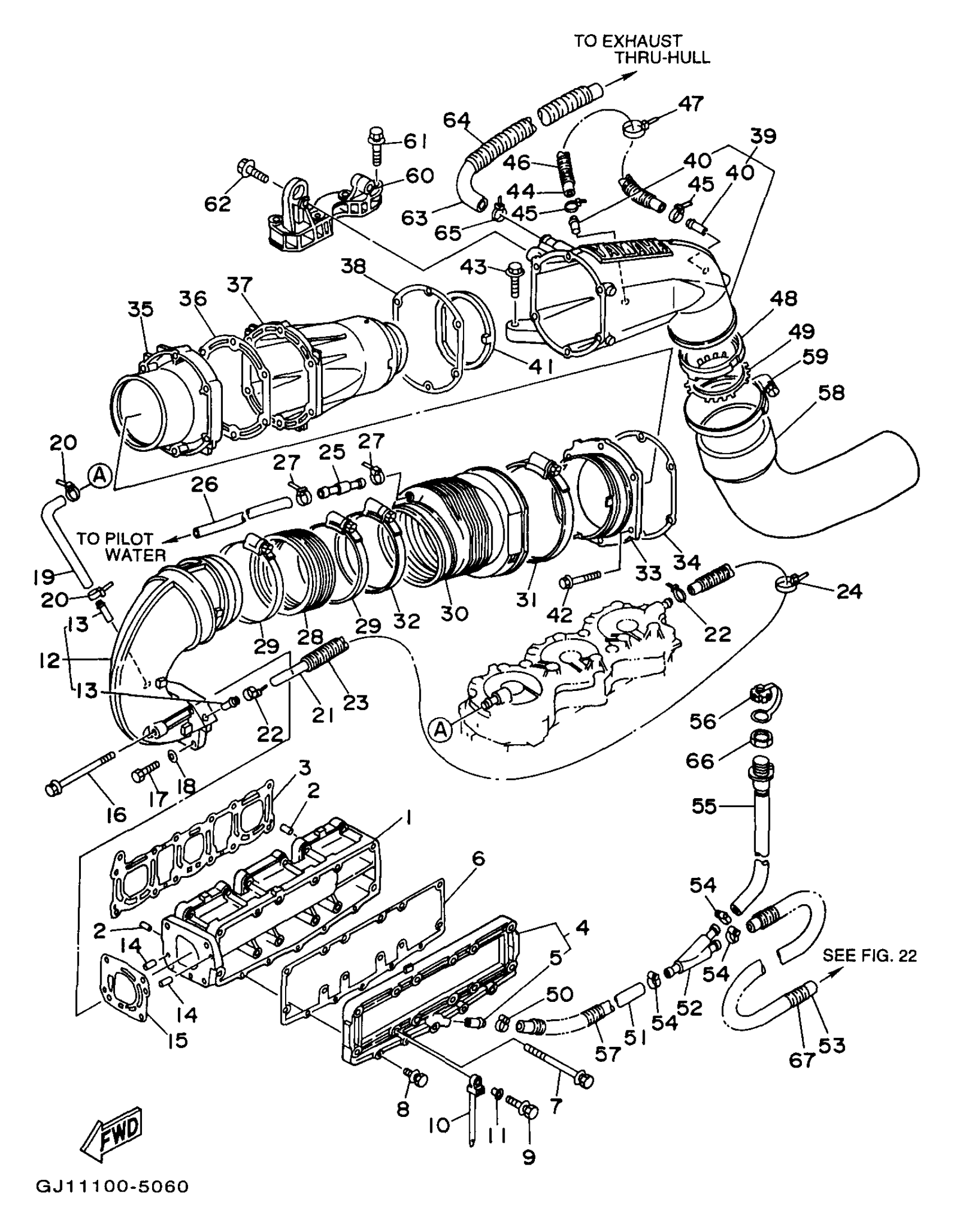

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 EXHAUST 1 Diagram
#
1
MUFFLER 1
63M-14711-00-00
Unavailable
2
PIN, DOWEL(62T)
93605-12M21-00
Unavailable
3
GASKET, EXHAUST PIPE
63M-14613-01-00
Unavailable
4
PROTECTOR, MUFFLER 1
63M-14718-00-8S
Unavailable
5
. NIPPLE
63M-51129-00-00
Unavailable
6
GASKET, MUFFLER DAMPER 1
63M-14739-00-00
Unavailable
7
BOLT, WITH WASHER
90119-08M98-00
Unavailable
8
BOLT, WITH WASHER(63M)
97513-06530-00
Unavailable
9
BOLT, WITH WASHER(6L2)
90119-06M05-00
$1.86
10
CLAMP
90465-12M53-00
Unavailable
11
COLLAR
90387-06M05-00
Unavailable
12
RING, JOINT
63M-14712-00-00
Unavailable
13
. NIPPLE
6K8-51129-00-00
Unavailable
14
PIN, DOWEL(62T)
93605-12M21-00
Unavailable
15
GASKET, MUFFLER DAMPER 2
63M-14749-01-00
Unavailable
16
BOLT, WITH WASHER
90119-08155-00
Unavailable
17
BOLT, HEXAGON
97013-08030-00
Unavailable
18
.. WASHER, PLATE
92990-08600-00
Unavailable
19
HOSE 1
63M-12576-00-00
Unavailable
20
CLAMP
90465-10098-00
Unavailable
21
HOSE 2
63M-12577-00-00
Unavailable
22
CLAMP
90465-10098-00
Unavailable
23
HOSE
90446-20M53-00
Unavailable
24
BAND, SWITCH CORD
437-83936-11-00
Unavailable
25
PIPE, JOINT 2
6R3-24377-00-00
Unavailable
26
HOSE
90445-14M03-00
Unavailable
27
CLAMP
90465-10098-00
Unavailable
28
JOINT, EXHAUST 2
62T-14625-00-00
Unavailable
29
HOSE CLAMP ASSY(62T)
90450-99M06-00
Unavailable
30
JOINT, EXHAUST 1
63M-14615-00-00
Unavailable
31
HOSE CLAMP ASSY
90450-99M18-00
Unavailable
32
HOSE CLAMP ASSY(62T)
90450-99M02-00
Unavailable
33
OUTER COVER, EXHAUST
63M-41113-00-8S
Unavailable
34
GASKET, EXHAUST OUTER COVER
63M-41114-00-00
Unavailable
35
MUFFLER 2
63M-14721-00-8S
Unavailable
36
GASKET, EXHAUST INNER COVER
63M-41122-00-00
Unavailable
37
INNER COVER,EXHAUST
63M-41121-00-8S
Unavailable
38
GASKET, EXHAUST OUTER COVER
63M-41114-00-00
Unavailable
39
OUTER COVER, EXHAUST
63M-41123-00-8S
Unavailable
40
. NIPPLE
6K8-51129-00-00
Unavailable
41
SEAL, RUBBER 1
63M-15761-00-00
Unavailable
42
BOLT, FLANGE
90105-08M66-00
Unavailable
43
BOLT, FLANGE
90105-10M60-00
Unavailable
44
HOSE (L240)
90445-14M05-00
Unavailable
45
CLAMP
90465-10098-00
Unavailable
46
HOSE
90446-20M39-00
Unavailable
47
BAND, SWITCH CORD
437-83936-11-00
Unavailable
48
SEAL, EXT 1
63M-41138-00-00
Unavailable
49
STOPPER
63M-14680-00-00
Unavailable
50
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
51
HOSE
90445-18M16-00
Unavailable
52
JOINT, HOSE 1
63M-12581-00-00
Unavailable
53
HOSE
90445-18M00-00
Unavailable
54
HOSE CLAMP ASSY
90450-18M09-00
Unavailable
55
JOINT ASSY
64T-12580-00-00
Unavailable
56
CAP,1
682-84385-01-00
Unavailable
57
HOSE
90446-24M81-00
Unavailable
58
PIPE, OUTLET
64T-14752-00-00
Unavailable
59
HOSE CLAMP ASSY(62T)
90450-99M02-00
Unavailable
60
STAY, MUFFLER 1
63M-14771-00-00
Unavailable
61
BOLT, WITH WASHER
90119-10M72-00
Unavailable
62
BOLT, WASHER BASED
90105-10M45-00
Unavailable
63
HOSE 3
63M-12578-00-00
Unavailable
64
HOSE(63M)
90446-27M55-00
Unavailable
65
BAND
90601-200U1-00
Unavailable
66
NUT
EU0-61652-00-00
Unavailable
67
HOSE
90446-24M83-00
Unavailable
