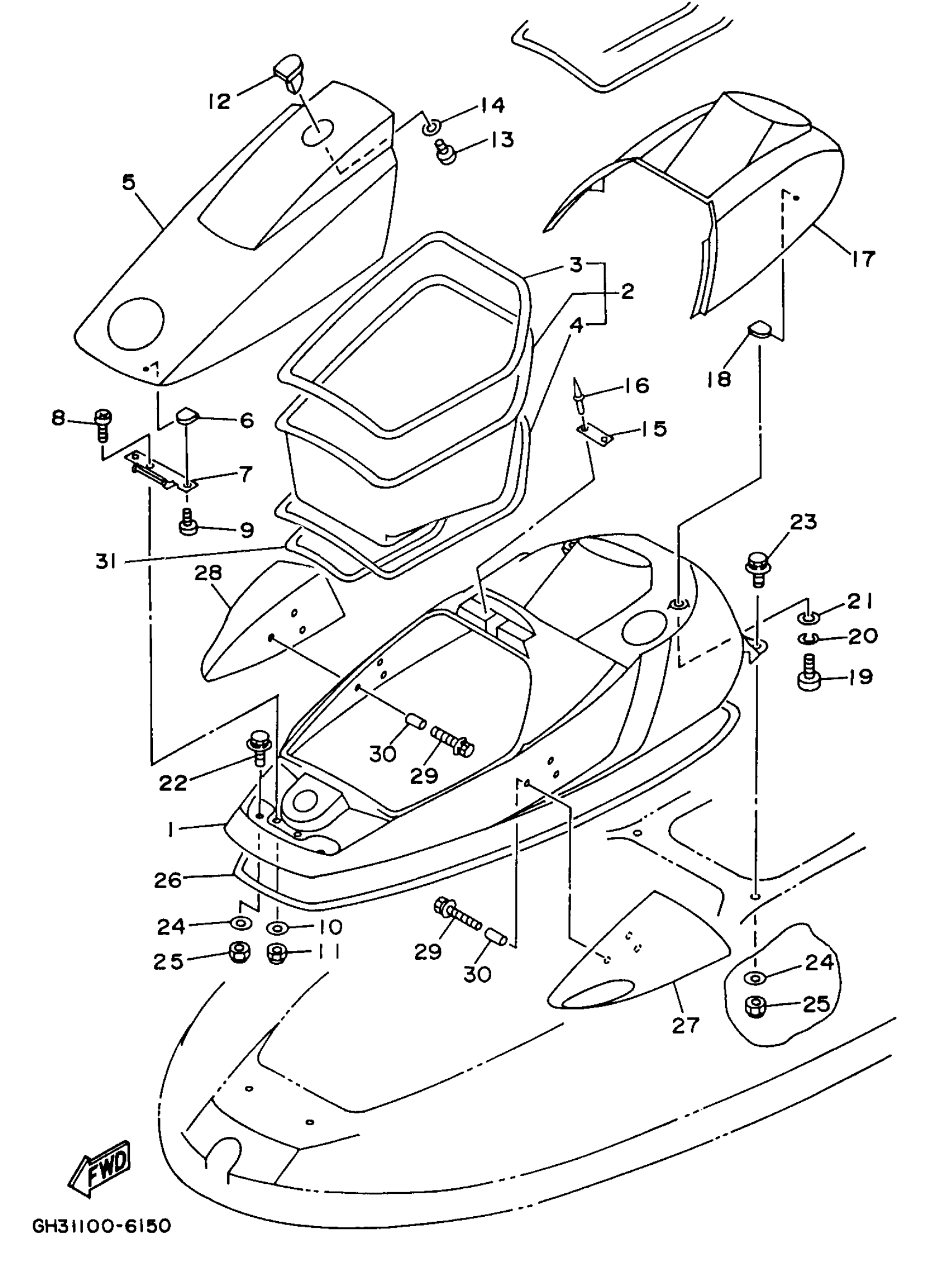

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 ENGINE HATCH Diagram

#

Description
Price

1

ENGINE HATCH COMP.

GJ3-U516A-00-P0

Unavailable

2

BOW LOCKER ASSEMBLY

GJ3-U475A-00-00

Unavailable

3

PACKING 4

GJ3-U266C-31-00

Unavailable

4

PACKING 4

GJ3-U266C-31-00

Unavailable

5

LID, ENGINE HATCH

GJ3-6517B-00-P0

Unavailable

6

NUT, SPRING(GJ3)

90183-06902-00

$8.53

7

HINGE, LID

GJ3-6517D-01-00

Unavailable

8

SCREW PAN HEAD

98580-06020-00

$4.89

9

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

10

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

11

NUT, SELF-LOCKING

95720-06300-00

$1.82

12

LOCK, LID

GJ3-6517C-01-00

Unavailable

13

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

14

. WASHER, PLAIN

92990-05200-00

$4.29

15

HOOK, LID LOCK

GJ3-6517F-00-00

Unavailable

16

RIVET (EU0)

90267-48938-00

$5.00

17

COVER, ENGINE HATCH

GJ3-6516N-00-P0

Unavailable

18

NUT, SPRING(GJ3)

90183-06902-00

$8.53

19

SCREW PAN HEAD

98580-06020-00

$4.89

20

WASHER, SPRING

92995-06100-00

$2.95

21

WASHER, PLAIN (646)

92990-06600-00

Unavailable

22

BOLT, WITH WASHER

90119-089U2-00

$3.11

23

BOLT, WITH WASHER(GA7)

90119-08932-00

Unavailable

24

WASHER (FJ0)

90201-08929-00

Unavailable

25

. NUT, SELF-LOCKING

95720-08300-00

$3.33

26

PACKING 1

GJ3-U2663-01-00

Unavailable

27

MIRROR (L.H)

GH1-6596B-40-00

Unavailable

28

MIRROR (R.H)

GH1-6596C-40-00

Unavailable

29

BOLT, HEX (MIRROR)

90119-06924-00

Unavailable

30

COLLAR

90387-06915-00

Unavailable

31

PACKING, FLOATATION

GJ3-U897F-01-00

Unavailable
