- WVT1100U (WAVE VENTURE 1100) 1996
ELECTRICAL 1

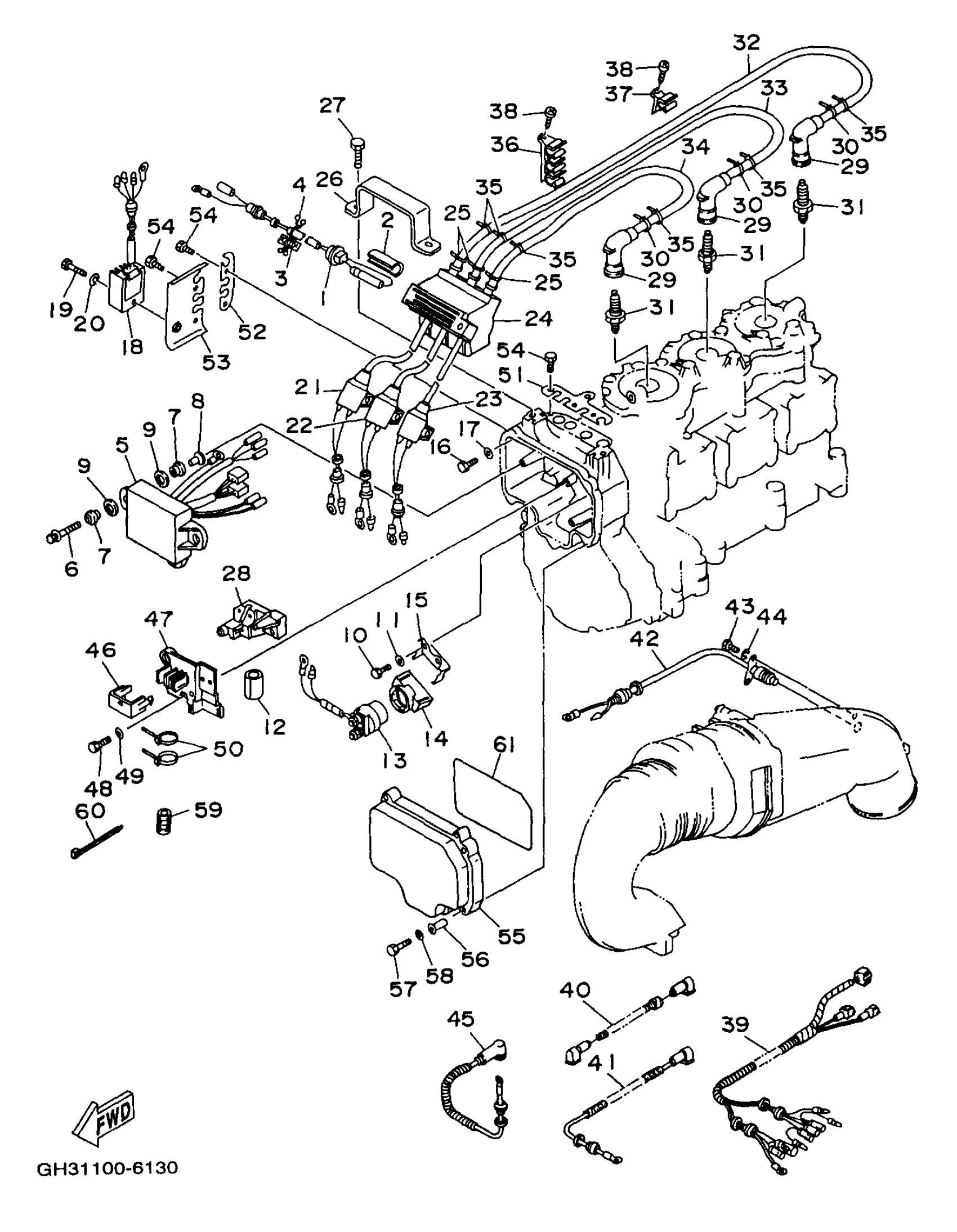

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 ELECTRICAL 1 Diagram
#
1
FUSE HOLDER ASSEMBLY
63M-82150-00-00
Unavailable
2
DAMPER
63M-82176-00-00
Unavailable
3
FUSE SPEAR
63M-82159-00-00
Unavailable
4
CLAMP
90464-07M44-00
Unavailable
5
CDI UNIT ASSY
99999-03255-00
Unavailable
6
BOLT, WITH WASHER
90119-06293-00
Unavailable
7
GROMMET
90480-09M25-00
Unavailable
8
COLLAR
90387-06M03-00
Unavailable
9
WASHER, PLATE
90201-16M00-00
Unavailable
10
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
11
WASHER, PLAIN (646)
92990-06600-00
$2.80
12
PROTECTER, WIRE HARNESS
63M-82589-00-00
Unavailable
13
STARTER RELAY ASSY
6G1-81941-10-00
Unavailable
14
HOLDER, RELAY
6H4-81952-00-00
Unavailable
15
PLATE, SWITCH FITTING
63M-81945-00-00
Unavailable
16
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
17
WASHER, PLAIN (646)
92990-06600-00
$2.80
18
RECTIFIER & REGULATOR ASSY
63M-81960-00-00
Unavailable
19
BOLT(GH1)
97080-06012-00
Unavailable
20
WASHER, PLAIN (646)
92990-06600-00
$2.80
21
IGNITION COIL ASSEMBLY
63M-85570-00-00
Unavailable
22
IGNITION COIL ASSEMBLY
63M-85570-10-00
Unavailable
23
IGNITION COIL ASSEMBLY
63M-85570-20-00
Unavailable
24
DAMPER
63M-85547-00-00
Unavailable
25
CLAMP
90465-10098-00
Unavailable
26
BRACKET
63M-85542-00-00
Unavailable
27
BOLT (682)
97013-08025-00
Unavailable
28
GROMMET
63M-85516-00-00
Unavailable
29
PLUG CAP ASSY
63M-82370-00-00
Unavailable
30
CLAMP
90465-10098-00
Unavailable
31
BR8HS NGK SCREW TOP PLUG 4PK
BR8-HS000-00-00
Unavailable
32
TUBE, CORD
63M-82351-00-00
Unavailable
33
TUBE, CORD
63M-82351-00-00
Unavailable
34
TUBE, CORD
63M-82351-00-00
Unavailable
35
CLAMP
90465-10098-00
Unavailable
36
CLAMP, CORD
63M-81317-00-00
Unavailable
37
CLAMP, CORD
63M-81317-10-00
Unavailable
38
SCREW, PANHEAD (97701-50515-00)
90149-059U1-00
Unavailable
39
EXTENSION, WIRE LEAD
63M-82553-00-00
Unavailable
40
WIRE, LEAD
63N-82117-00-00
Unavailable
41
WIRE, LEAD
64T-82117-10-00
Unavailable
42
THERMO SWITCH ASSEMBLY
63M-82560-00-00
Unavailable
43
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
44
WASHER, SPRING
92995-06100-00
Unavailable
45
WIRE, LEAD
63M-82117-20-00
Unavailable
46
BAND
63M-85546-00-00
Unavailable
47
HOLDER
63M-85548-00-00
Unavailable
48
BOLT, HEXAGON DEEP RECESS
97D95-06014-00
Unavailable
49
WASHER, PLAIN (646)
92990-06600-00
$2.80
50
CLAMP
90465-13M60-00
Unavailable
51
COVER
63M-85599-01-00
Unavailable
52
COVER
63M-85525-00-00
Unavailable
53
PLATE
63M-85644-00-00
Unavailable
54
BOLT(GH1)
97080-06012-00
Unavailable
55
COVER, IGNITION COIL
63M-82314-00-00
Unavailable
56
COLLAR (3H5)
90387-060A3-00
Unavailable
57
BOLT, HEXAGON
97013-05020-00
Unavailable
58
WASHER, PLAIN (646)
92990-05600-00
Unavailable
59
HOSE(64X)
90446-14M66-00
Unavailable
60
CLAMP
90465-11M59-00
Unavailable
61
MARK 3
63M-83623-00-00
Unavailable
