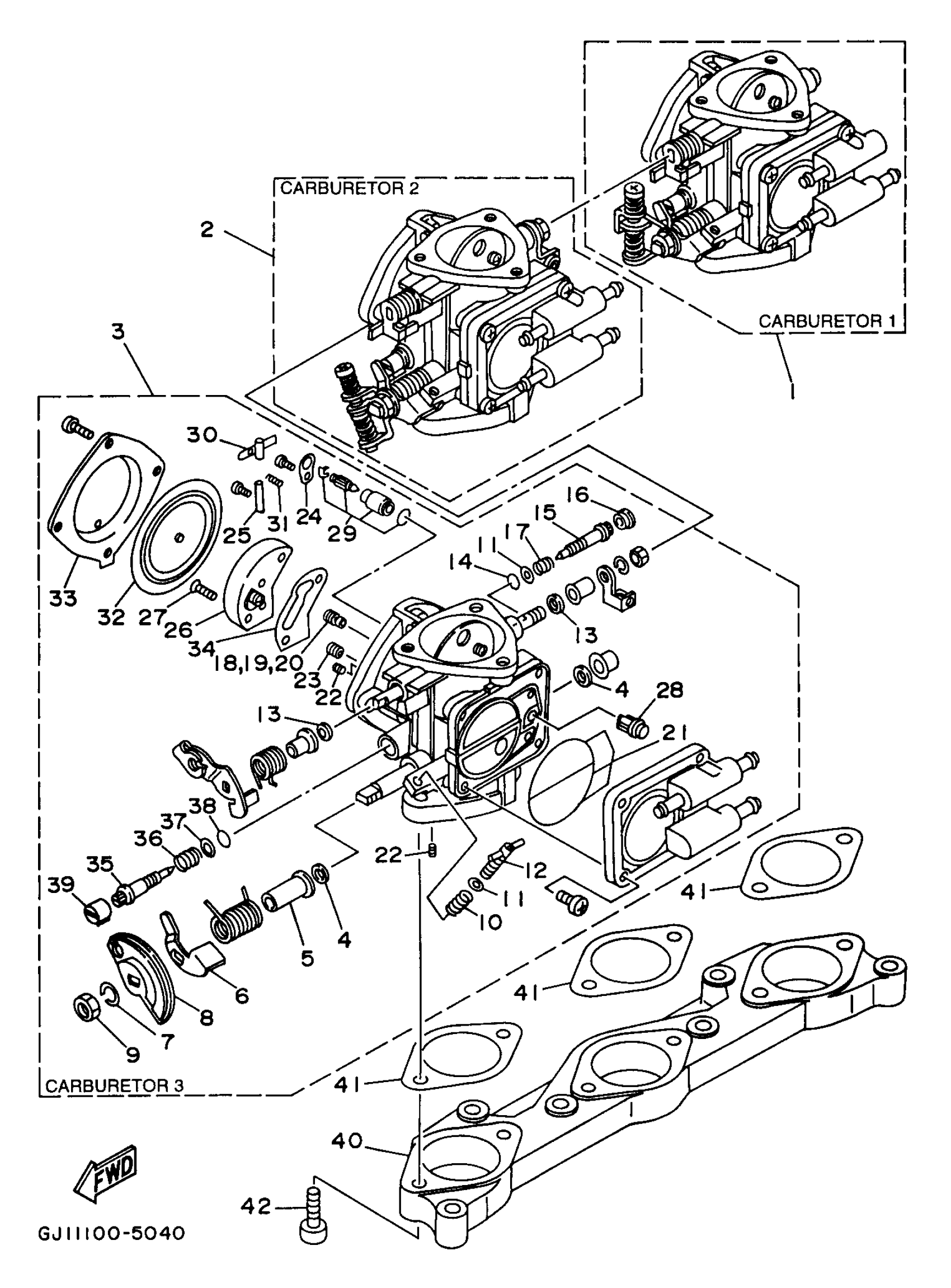

Yamaha WVT1100U (WAVE VENTURE 1100) 1996 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASY 1

64T-14301-01-00

Unavailable

2

CARBURETOR ASSY 2

64T-14302-01-00

Unavailable

3

CARBURETOR ASSY 3

64T-14303-01-00

$557.56

4

. WASHER

6R7-14596-01-00

Unavailable

5

. COLLAR

6K8-14534-10-00

$19.68

6

. BRACKET, THROTTLE 1

6K8-14926-10-00

$19.68

7

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

8

. THROTTLE SHAFT ASSEMBLY

6K8-14930-00-00

Unavailable

9

. NUT

95380-08700-00

$3.05

10

. SPRING, ADJUST SCREW

6K8-14531-00-00

Unavailable

11

WASHER,NEEDLE

812-14235-00-00

$2.44

12

SCREW,ADJUST

6M6-14521-01-00

Unavailable

13

. WASHER

6K8-14597-11-00

Unavailable

14

. O-RING

6K8-14562-00-00

$1.88

15

. PLATE, NEEDLE FITTING

63M-14946-00-00

$18.49

16

. CAP, CARBURETOR

6K8-14471-10-00

$8.17

17

. SPRING, ADJUST SCREW

6K8-14533-00-00

Unavailable

18

JET,MAIN #107.5

3G2-1423A-72-00

Unavailable

19

JET, MAIN (# 95)

3G2-14231-19-00

Unavailable

20

JET,MAIN #107.5

3G2-1423A-72-00

Unavailable

21

. O-RING

6K8-14564-00-00

$8.51

22

. SCREW

6K8-14521-10-00

$34.49

23

. JET, MAIN (# 75)

830-14231-15-00

Unavailable

24

. PLATE

6K8-14527-11-00

$11.35

25

. PIN, FLOAT

6K8-14579-00-00

Unavailable

26

. BODY 1

6R7-24412-01-00

$23.36

27

SCREW, STOP

6K8-14523-12-00

Unavailable

28

. STRAINER

6R7-14569-00-00

$11.48

29

NEEDLE

61X-14916-16-00

$22.90

30

. ARM, FLOAT

6K8-14547-01-00

$8.26

31

. SPRING

6R7-14253-00-00

$2.49

32

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

33

. BODY, PUMP 1

6R7-14542-00-00

$56.05

34

. GASKET

6K8-14536-11-00

$8.14

35

. SCREW, PILOT

63M-14923-00-00

Unavailable

36

. SPRING

6K8-14589-00-00

$3.70

37

. WASHER

6K8-14537-00-00

$3.18

38

O-RING

583-14561-00-00

Unavailable

39

. CAP, CARBURETOR

6K8-14481-10-00

Unavailable

40

PLATE

63M-14243-00-00

Unavailable

41

GASKET

63M-14398-00-00

$16.66

42

BOLT, HOLDING

63M-14162-00-00

Unavailable
