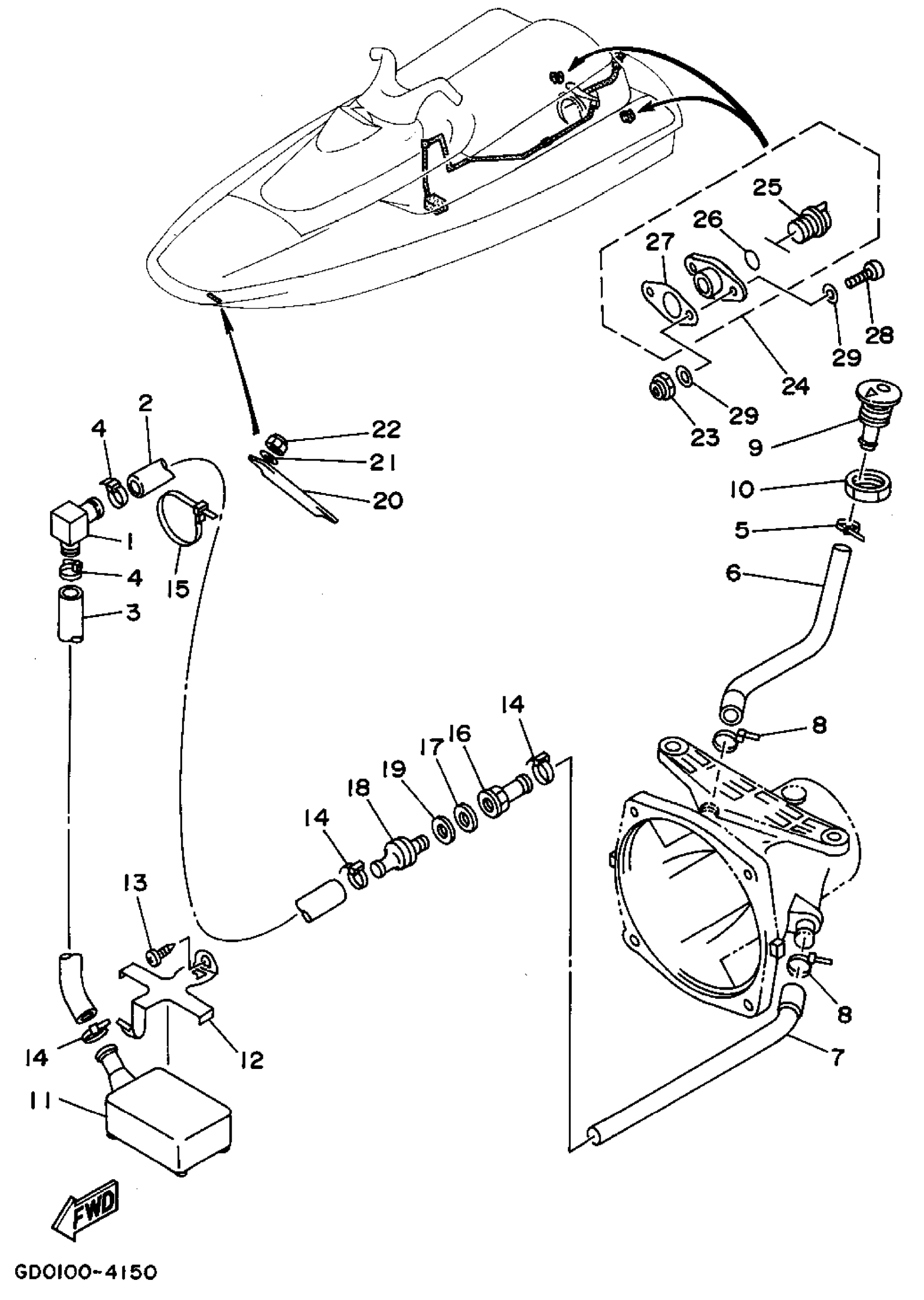

Yamaha WRB700S (WAVE RUNNER PRO VXR) GD05 1994 HULL - DECK Diagram
#
1
JOINT, HOSE
61X-51162-00-00
Unavailable
2
HOSE
90445-19M03-00
Unavailable
3
HOSE
90445-19M01-00
Unavailable
4
CLAMP
90465-10098-00
Unavailable
5
CLAMP
90465-10098-00
Unavailable
6
PIPE 1
61X-51673-00-00
Unavailable
7
HOSE (L380)
90445-14M25-00
$24.99
8
CLAMP
90465-10098-00
Unavailable
9
SPOUT
FN8-6269B-00-00
Unavailable
10
NUT
EU0-61652-00-00
Unavailable
11
STRAINER, BILGE
GD0-6761D-00-00
Unavailable
12
BASE, STRAINER BLIGE
EW2-67618-00-00
Unavailable
13
SCREW, PANHEAD TAPPING (682)
97780-50514-00
Unavailable
14
CLAMP
90465-10098-00
Unavailable
15
BAND (EU0)
90601-20009-00
Unavailable
16
CONNECTION, THRU-HULL 1/4
90604-80759-00
Unavailable
17
GASKET
90430-13909-00
Unavailable
18
CONNECTION, THROUGH HALL (GD0)
90604-80775-00
Unavailable
19
GASKET
90430-13909-00
Unavailable
20
BOWEYE 1
FN8-U1624-00-00
Unavailable
21
WASHER, PLAIN
92990-08200-00
Unavailable
22
. NUT, SELF-LOCKING
95720-08300-00
Unavailable
23
NUT, FLANGE
95720-05300-00
Unavailable
24
DRAIN PLUG ASSY
EU0-62280-00-00
Unavailable
25
. PLUG, DRAIN
EU0-62282-00-00
Unavailable
26
. O-RING
EU0-62283-00-00
Unavailable
27
. PACKING DRAIN (EU0)
EU0-62285-01-00
Unavailable
28
SCREW, PAN HEAD
98580-05020-00
Unavailable
29
. WASHER, PLAIN
92990-05200-00
Unavailable
