GUNWALE - MAT

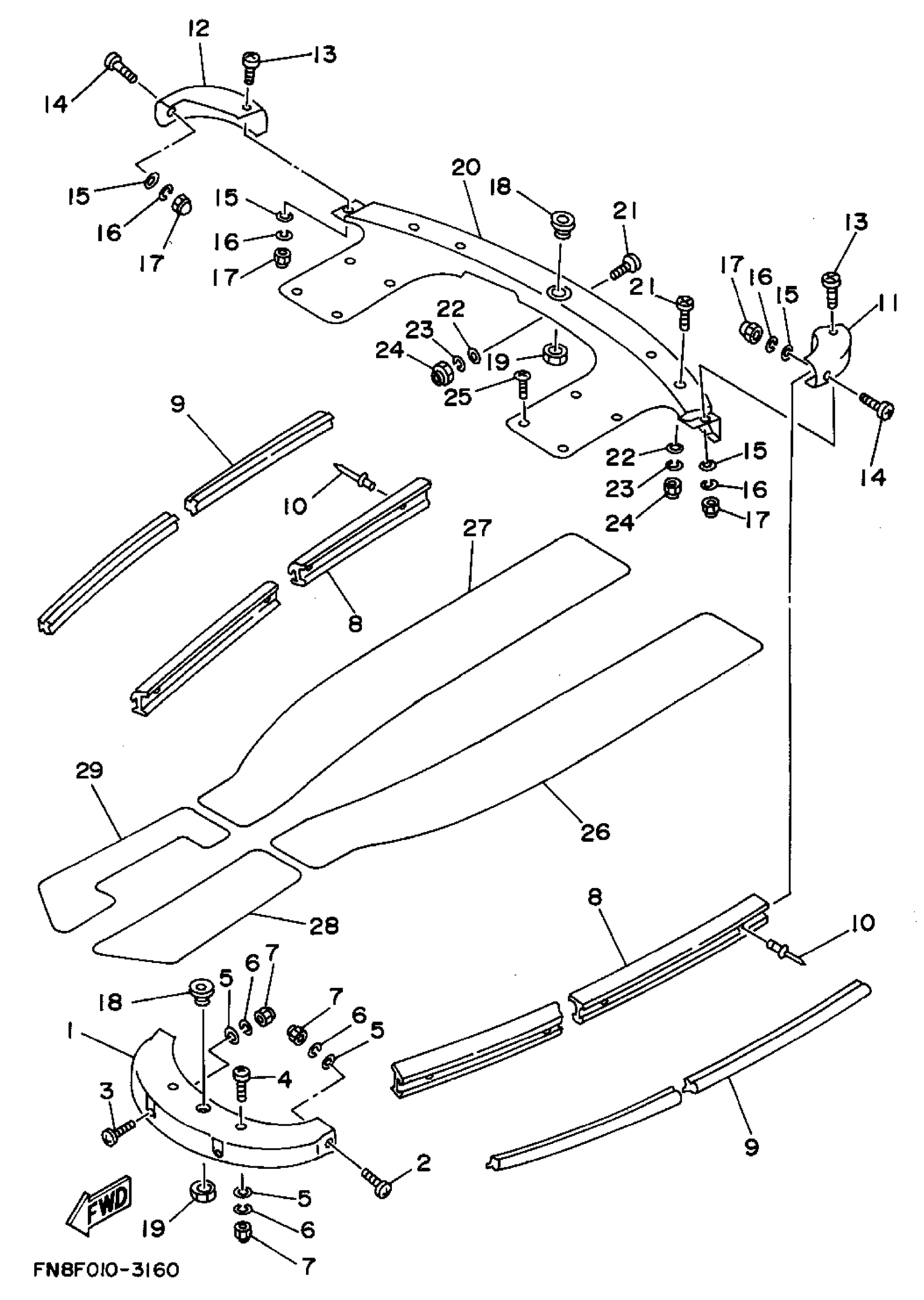

Yamaha WRB700S (WAVE RUNNER PRO VXR) GD05 1994 GUNWALE - MAT Diagram
#
1
BOW GUNWALE COMP.
FN8-U2501-00-00
Unavailable
2
SCREW
90149-06976-00
Unavailable
3
SCREW,BINDING
90154-06818-00
Unavailable
4
SCREW
90149-06968-00
Unavailable
5
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
6
WASHER, SPRING
92995-06100-00
Unavailable
7
NUT (J17)
95380-06800-00
$8.49
8
GUNWALE,SIDE
FN8-U2512-11-00
Unavailable
9
GUNWALE RUBBER
FN8-U2519-10-00
Unavailable
10
RIVET, BLIND
90267-489U8-00
Unavailable
11
GUNWALE, STERN (L.H)
FN8-62513-11-00
Unavailable
12
GUNWALE, STERN (R.H)
FN8-62513-21-00
Unavailable
13
SCREW
90149-06973-00
Unavailable
14
SCREW
90149-06971-00
Unavailable
15
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
16
WASHER, SPRING
92995-06100-00
Unavailable
17
NUT (J17)
95380-06800-00
$8.49
18
ROPE HOLE
FN8-61651-01-00
Unavailable
19
NUT
EU0-61652-00-00
Unavailable
20
MAT, UPPER COMP.
FN8-U3580-01-00
Unavailable
21
SCREW
90149-06968-00
Unavailable
22
YBS66-6 WASHER, PLAIN
92990-06200-00
$3.78
23
WASHER, SPRING
92995-06100-00
Unavailable
24
NUT (J17)
95380-06800-00
$8.49
25
SCREW
90149-06967-00
Unavailable
26
MAT 1
FN8-6759B-11-00
Unavailable
27
MAT 1
FN8-6759B-21-00
Unavailable
28
MAT 2
FN8-6759C-11-00
Unavailable
29
MAT 2
FN8-6759C-21-00
Unavailable
