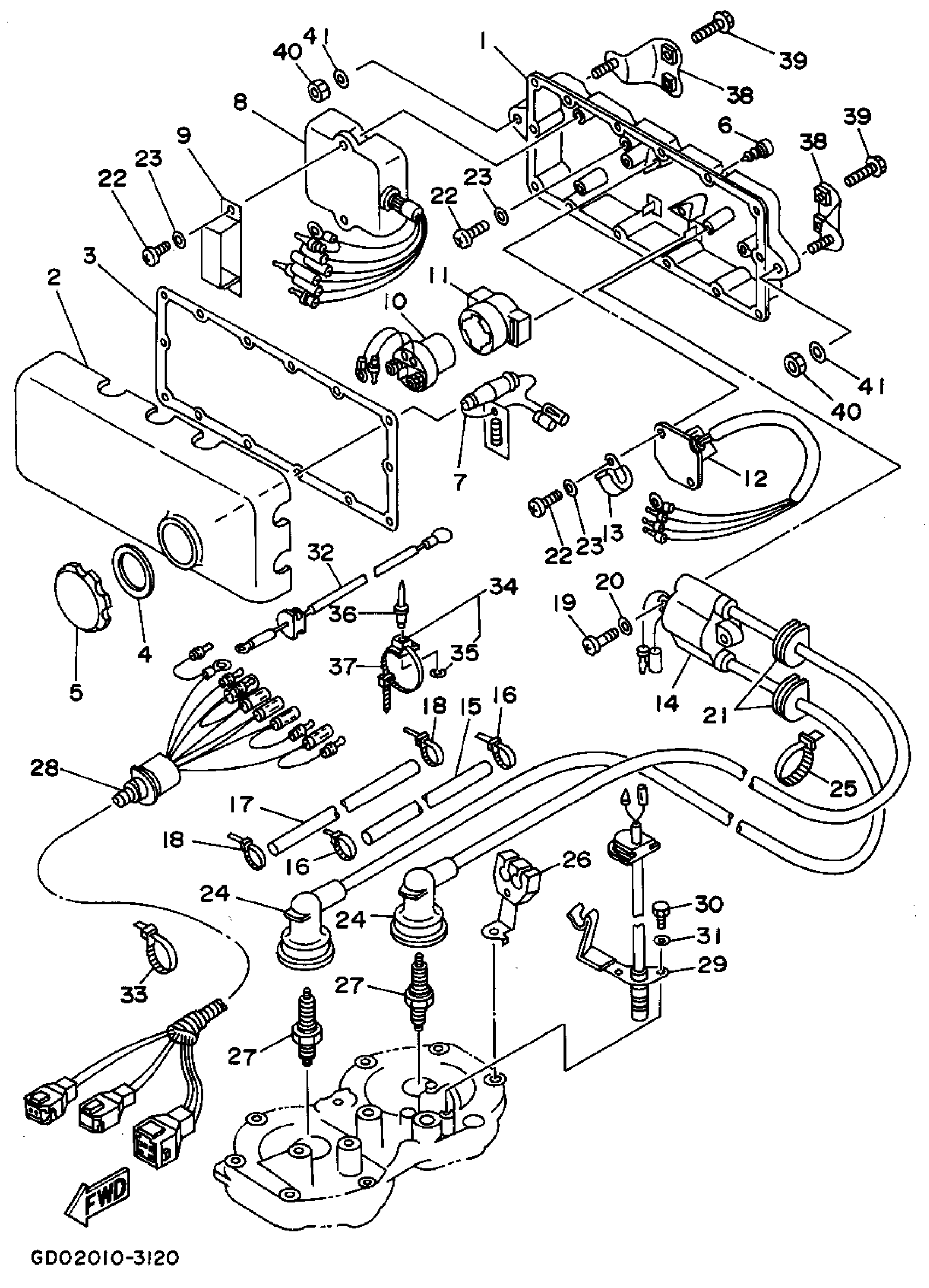

Yamaha WRB700S (WAVE RUNNER PRO VXR) GD05 1994 ELECTRICAL 1 Diagram
#
1
HOUSING
6M6-8552A-01-8P
Unavailable
2
COVER, CASE
6M6-8552E-01-00
Unavailable
3
GASKET, TERMINAL
6M6-81921-00-00
Unavailable
4
GASKET
6M6-81844-00-00
Unavailable
5
CAP
6M6-8132W-00-00
Unavailable
6
SCREW, TAPPING(65J)
97780-60625-00
Unavailable
7
FUSE HOLDER ASSY
6K8-82150-02-00
$38.99
8
C.D.I. UNIT ASSY
6M6-85540-02-00
Unavailable
9
CLAMP
90464-06M29-00
Unavailable
10
STARTER RELAY ASSY
6G1-81941-10-00
Unavailable
11
HOLDER, RELAY
6M6-81952-01-00
Unavailable
12
RECTIFIER & REGULATOR ASSY
6M6-81960-A0-00
Unavailable
13
CLAMP
90465-08028-00
Unavailable
14
IGNITION COIL ASSEMBLY
61L-85570-00-00
Unavailable
15
TUBE, CORD 2
6R8-82352-00-00
Unavailable
16
CLAMP
90465-10098-00
Unavailable
17
TUBE, CORD 2
6R8-82352-00-00
Unavailable
18
CLAMP
90465-10098-00
Unavailable
19
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
20
WASHER, PLAIN (646)
92990-06600-00
Unavailable
21
GROMMET
90480-06M43-00
Unavailable
22
SCREW, PAN
98507-06014-00
Unavailable
23
WASHER, PLAIN (646)
92990-06600-00
Unavailable
24
PLUG CAP ASSY
63M-82370-00-00
Unavailable
25
CLAMP
90465-10098-00
Unavailable
26
CLAMP, CORD
6R7-82361-00-00
Unavailable
27
BR8HS NGK SCREW TOP PLUG 4PK
BR8-HS000-00-00
Unavailable
28
EXTENSION, WIRE LEAD
61X-82553-00-00
Unavailable
29
THERMO SWITCH ASSY
6R7-82560-00-00
Unavailable
30
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
31
WASHER, SPRING
92995-06100-00
Unavailable
32
WIRE, LEAD
62E-82117-20-00
Unavailable
33
CLAMP
90465-10098-00
Unavailable
34
CLAMP COMP (EU0)
90600-91736-00
Unavailable
35
. WASHER, PLAIN
90201-05925-00
Unavailable
36
RIVET, BLIND
90267-489UE-00
Unavailable
37
BAND (EU0)
90601-20009-00
Unavailable
38
BRACKET, ELECTRIC BOX
EW2-68156-00-00
Unavailable
39
BOLT,FLANGE (EW2)
90105-06903-00
Unavailable
40
. NUT
95380-08700-00
Unavailable
41
WASHER, PLAIN
92990-08200-00
Unavailable
