CYLINDER - CRANKCASE

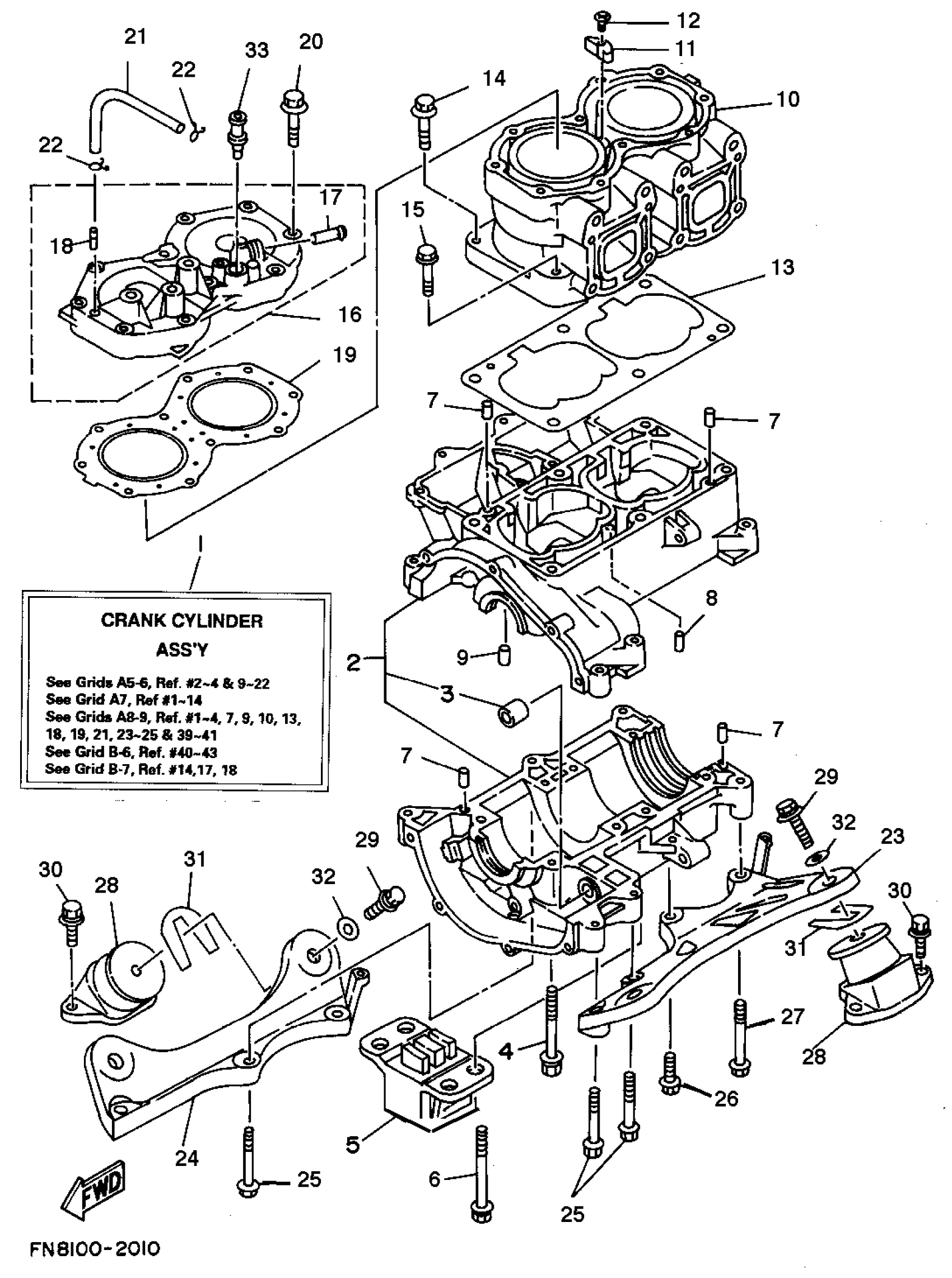

Yamaha WRB700S (WAVE RUNNER PRO VXR) GD05 1994 CYLINDER - CRANKCASE Diagram
#
1
CRANK CYLINDER ASSY
61X-W0090-03-8S
Unavailable
2
CRANKCASE ASSY
61X-15100-00-8S
Unavailable
3
. BUSH, SOLID
90380-12M29-00
Unavailable
4
BOLT, WITH WASHER
90119-08M55-00
Unavailable
5
STOPPER, UPPER MOUNT
61L-44532-00-00
Unavailable
6
BOLT, WITH WASHER
90119-08M56-00
Unavailable
7
PIN, DOWEL (614)
93606-12019-00
$4.24
8
PIN (2H7)
93603-10049-00
Unavailable
9
PIN, DOWEL (8H1)
93604-07141-00
$2.17
10
CYLINDER 1
61X-11311-01-8S
Unavailable
11
ANODE
6E5-11325-00-00
Unavailable
12
SCREW, FLAT HEAD
98780-04016-00
Unavailable
13
GASKET, CYLINDER
6M6-11351-A2-00
Unavailable
14
BOLT, WITH WASHER
90119-10M56-00
Unavailable
15
BOLT (6F5)
90119-10M07-00
$4.82
16
HEAD, CYLINDER 1
61X-11111-09-8S
Unavailable
17
. NIPPLE
6K8-51129-00-00
Unavailable
18
. PIPE, JOINT
6R7-14485-00-00
Unavailable
19
GASKET, CYLINDER HEAD 1
61X-11181-A1-00
Unavailable
20
BOLT, WITH WASHER
90119-08019-00
Unavailable
21
HOSE (L200)
90445-07M19-00
Unavailable
22
CLIP
90467-06016-00
Unavailable
23
BRACKET, FRONT UPPER 1
6R7-21415-01-00
Unavailable
24
BRACKET, REAR UPPER 1
6R7-21425-01-00
Unavailable
25
BOLT, WITH WASHER
90119-10M23-00
Unavailable
26
BOLT, WITH WASHER
90119-10M00-00
Unavailable
27
BOLT, WITH WASHER
90119-10M03-00
Unavailable
28
MOUNT RUBBER
6M6-44517-A2-94
Unavailable
29
BOLT, WITH WASHER
90119-08904-00
Unavailable
30
BOLT, WITH WASHER
90119-08038-00
Unavailable
31
PLATE
EU0-67324-00-00
Unavailable
32
SHIM (T=0.1)
EU0-67354-A0-00
Unavailable
32
SHIM (T=0.3)
EU0-67354-B0-00
Unavailable
32
SHIM (T=0.5)
EU0-67354-C0-00
Unavailable
32
SHIM (T=1.0)
EU0-67354-D0-00
Unavailable
32
SHIM (T=2.0)
EU0-67354-E0-00
Unavailable
33
JET DRIVE FLUSH
ABB-FLUSH-JD-00
Unavailable
