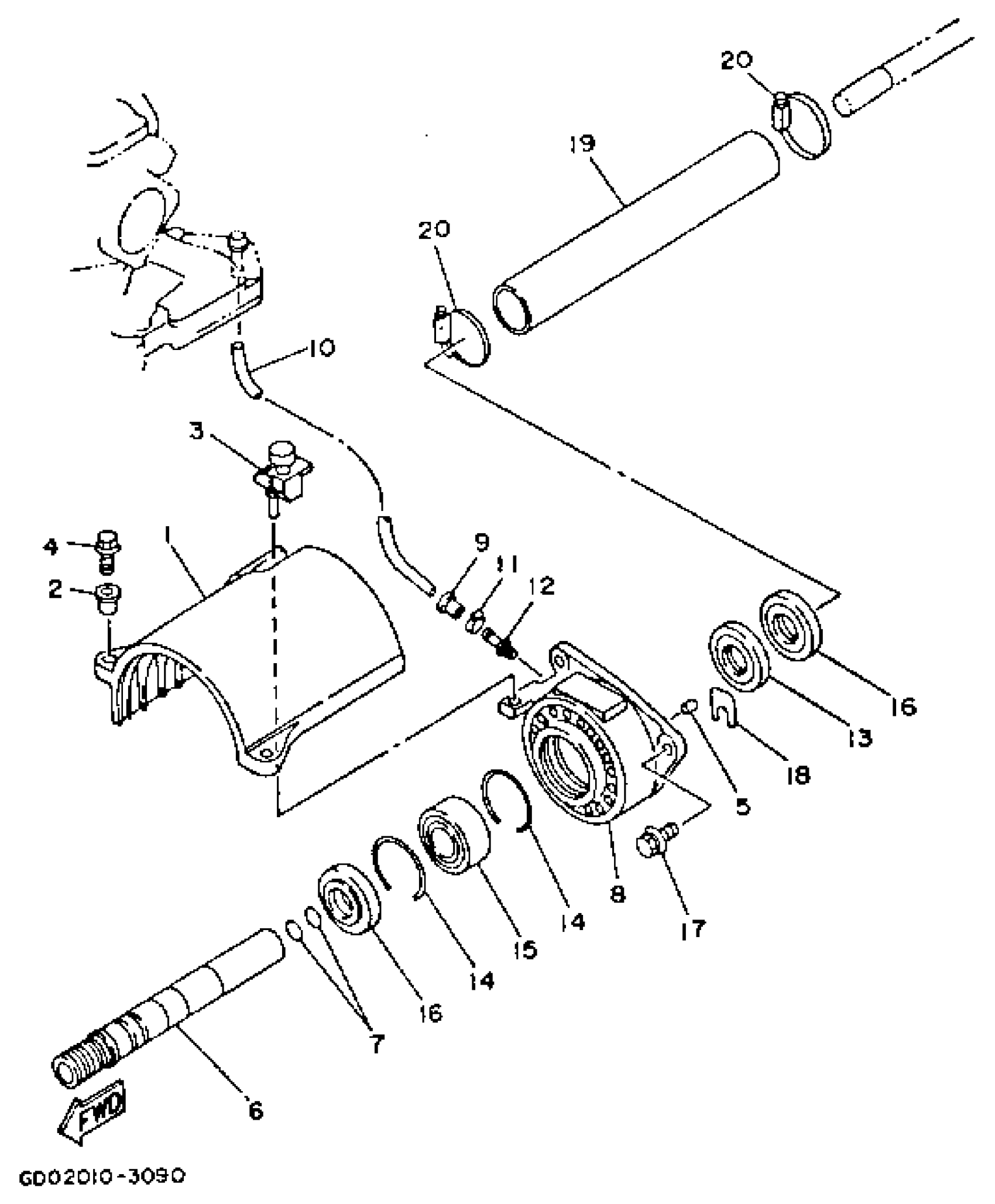

Yamaha WRB700R (WAVE RUNNER PRO VXR) 1993 JET UNIT 2 Diagram

#

Description
Price

1

COVER

61X-51381-00-00

$26.49

2

COLLAR

90387-06M60-00

$6.37

3

GROMMET(GD0)

90480-06M69-00

$51.86

4

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

$1.00

5

PIN, DOWEL(6R7)

93606-07M17-00

$6.76

6

SHAFT, COUPLOR

61X-51323-00-00

Unavailable

7

O-RING(6R7)

93210-17MA4-00

$4.65

8

HOUSING SET, BEARING (61X-00)

99999-02643-00

$431.80

9

BUSH

90386-08006-00

$2.80

10

HOSE

90445-09M23-00

Unavailable

11

CLAMP, HOSE(61L)

90460-11M17-00

$16.66

12

NIPPLE, HOSE

61L-45378-00-00

$11.35

13

OIL SEAL(62T)

93101-25M55-00

$24.36

14

CIRCLIP

93430-47M04-00

$5.18

15

BEARING

93305-205U0-00

Unavailable

16

OIL SEAL

93101-24001-00

Unavailable

17

BOLT, WITH WASHER

90119-08907-00

$5.45

18

SHIM (T=0.5)

GD0-67249-A0-00

$4.99

18

SHIM (T=1.0)

GD0-67249-00-10

Unavailable

19

PIPE 1

FN8-6883B-01-00

Unavailable

20

BAND, HOSE 52

90601-152U3-00

$5.67
