1993 Yamaha Wave Runner PRO VXR (WRB700R) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1993 Yamaha Wave Runner PRO VXR (WRB700R), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

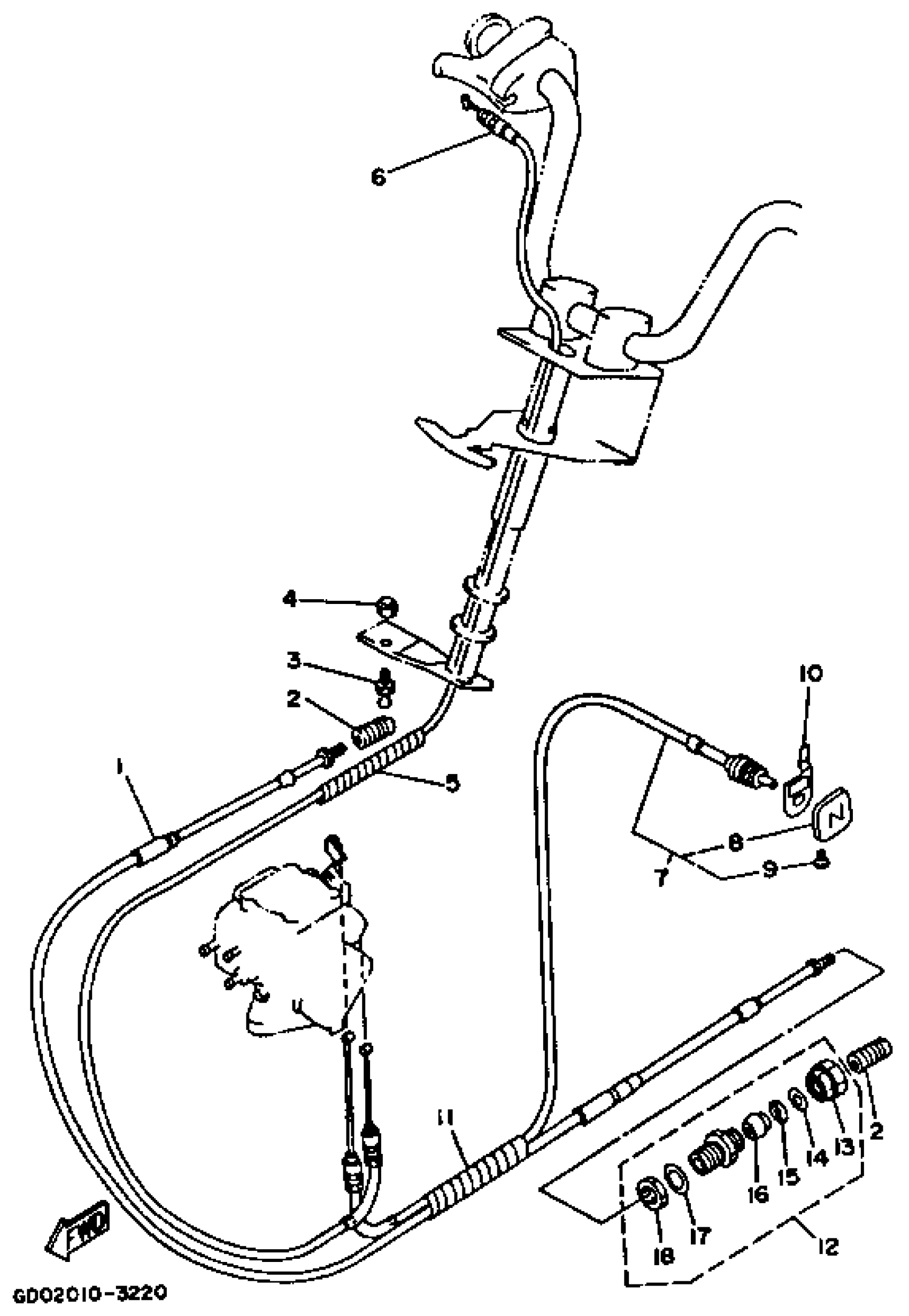

1993 Yamaha Wave Runner PRO VXR (WRB700R) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

FN8-U1481-00-00

1
Out of stock

2

SHAFT,JOINT BALL

EU0-61461-30-00

1

$45.13

In stock

3

SHAFT, JOINT BALL

EU0-U1461-10-00

1

$29.91

In stock

4

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

5

SPIRAL TUBE

90699-U1100-00

1
Out of stock

6

CABLE, THROTTLE 1

EU0-U7252-01-00

1

$131.70

In stock

7

CABLE, CHOKE

FN8-U7242-00-00

1
Out of stock

8

. KNOB

EW2-67243-00-00

1

$17.99

In stock

9

. SCREW

90149-03930-00

1

$1.38

In stock

10

PLATE, CHOKE

FN8-67243-00-00

1
Out of stock

11

SPIRAL TUBE 11

90699-36U02-00

1
Out of stock

12

CONNECTOR, CABLE

EU0-67267-00-00

1

$43.19

In stock

13

. CAP

EU0-62694-00-00

1

$14.49

In stock

14

. WASHER 30

EU0-61446-00-00

1

$4.62

In stock

15

. STOPPER

EU0-61486-00-00

1

$5.93

In stock

16

. SEAL, PIPE 30

EU0-61435-00-00

1

$8.70

In stock

17

. PACKING (C)

EU0-61438-00-00

1

$8.45

In stock

18

. NUT, DRAIN 1

EU0-62241-30-00

1

$10.49

In stock
← JET Unit 2 Steering 1 →
