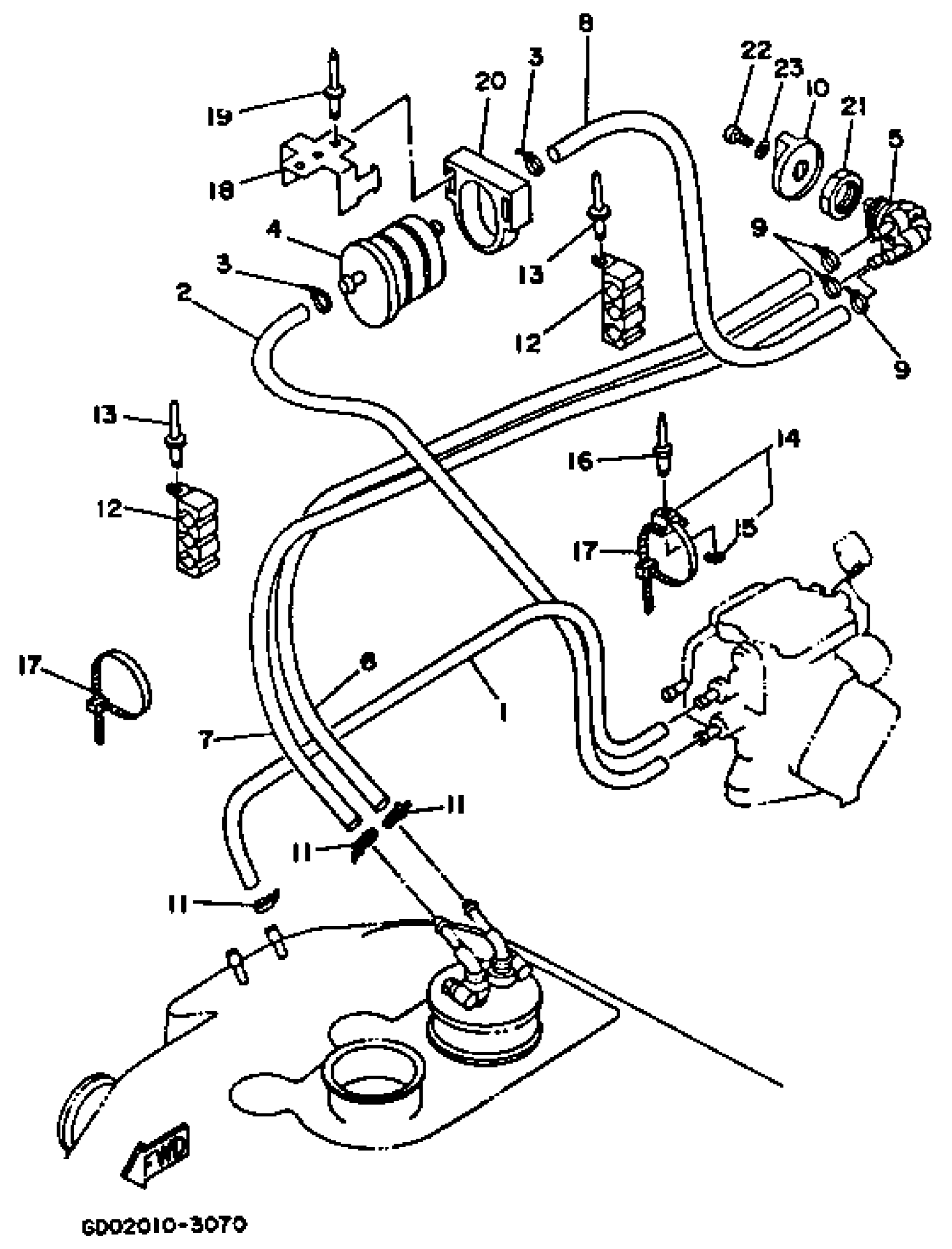

Yamaha WRB700R (WAVE RUNNER PRO VXR) 1993 FUEL FILTER Diagram

#

Description

Price

1

HOSE (L1040)

90445-10MA9-00

$68.99

2

HOSE (L1040)

90445-10MA9-00

$68.99

3

CLAMP

90465-10098-00

Unavailable

4

FILTER ASSY

6K8-24560-21-00

Unavailable

5

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

6

HOSE (L1700)

90445-10M87-00

Unavailable

7

HOSE (L1700)

90445-10M87-00

Unavailable

8

HOSE (L1040)

90445-10MA9-00

$68.99

9

CLAMP

90465-10098-00

Unavailable

10

LEVER, COCK

6K8-24524-10-00

Unavailable

11

CLAMP

90465-10098-00

Unavailable

12

HOLDER,PIPE 2

EW2-67812-00-00

Unavailable

13

RIVET, BLIND

90267-489U7-00

Unavailable

14

CLAMP COMP (EU0)

90600-91736-00

$8.49

15

. WASHER, PLAIN

90201-05925-00

Unavailable

16

RIVET, BLIND

90267-489U6-00

Unavailable

17

BAND (EU0)

90601-20009-00

Unavailable

18

BRACKET, FUEL FILTER

FN8-67816-00-00

Unavailable

19

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

20

HOLDER

EU0-67817-00-00

Unavailable

21

NUT

90170-22M11-00

Unavailable

22

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

23

WASHER, PLAIN (646)

92990-04600-00

Unavailable
