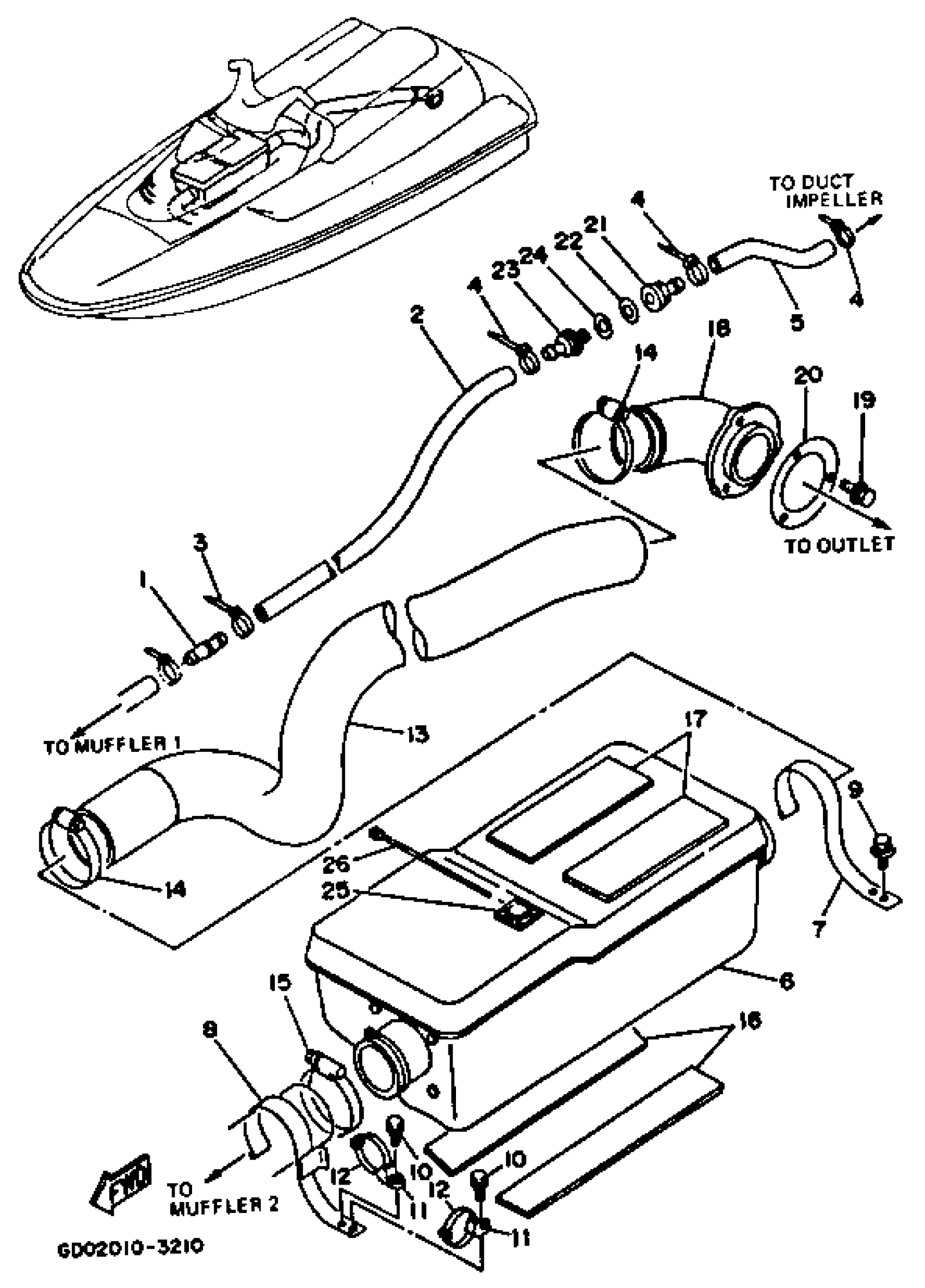

Yamaha WRB700R (WAVE RUNNER PRO VXR) 1993 EXHAUST 2 Diagram
#
Description
Price
1
CONNECTION
6M6-51142-00-00
Unavailable
2
HOSE
90445-14M03-00
Unavailable
3
CLAMP
90465-10098-00
Unavailable
4
CLAMP
90465-10098-00
Unavailable
5
HOSE
90445-14M17-00
Unavailable
6
WATER LOCK
GD0-U7550-00-00
Unavailable
7
CLIP, HOSE EXHAUST
FN8-67559-00-00
Unavailable
8
CLIP, EXHAUST H0SE
GD0-6755K-00-00
Unavailable
9
BOLT, WITH WASHER
90119-06913-00
Unavailable
10
BOLT, WITH WASHER
90119-06908-00
Unavailable
11
BASE CLAMP
90600-90005-00
Unavailable
12
CLAMP
90465-10098-00
Unavailable
13
HOSE, EXHAUST
GD0-U7555-00-00
Unavailable
14
BAND, HOSE 68
90601-168U7-00
Unavailable
15
BAND, HOSE 79
90601-179U8-00
Unavailable
16
MAT 2
EU0-U7593-30-00
Unavailable
17
MAT
EU0-U7593-50-00
Unavailable
18
THRU-HULL
FN8-67565-01-00
Unavailable
19
BOLT, WITH WASHER (EW3)
90119-05912-00
Unavailable
20
PACKING
FN8-U7525-01-00
Unavailable
21
CONNECTION, THRU-HULL 1/4
90604-80757-00
Unavailable
22
GASKET
90430-13909-00
Unavailable
23
CONNECTION, THRU-HULL 1/4
90604-80758-00
Unavailable
24
GASKET
90430-13909-00
Unavailable
25
BASE, CLAMP (FA8A)
90600-90004-00
Unavailable
26
BAND
90601-20024-00
Unavailable
