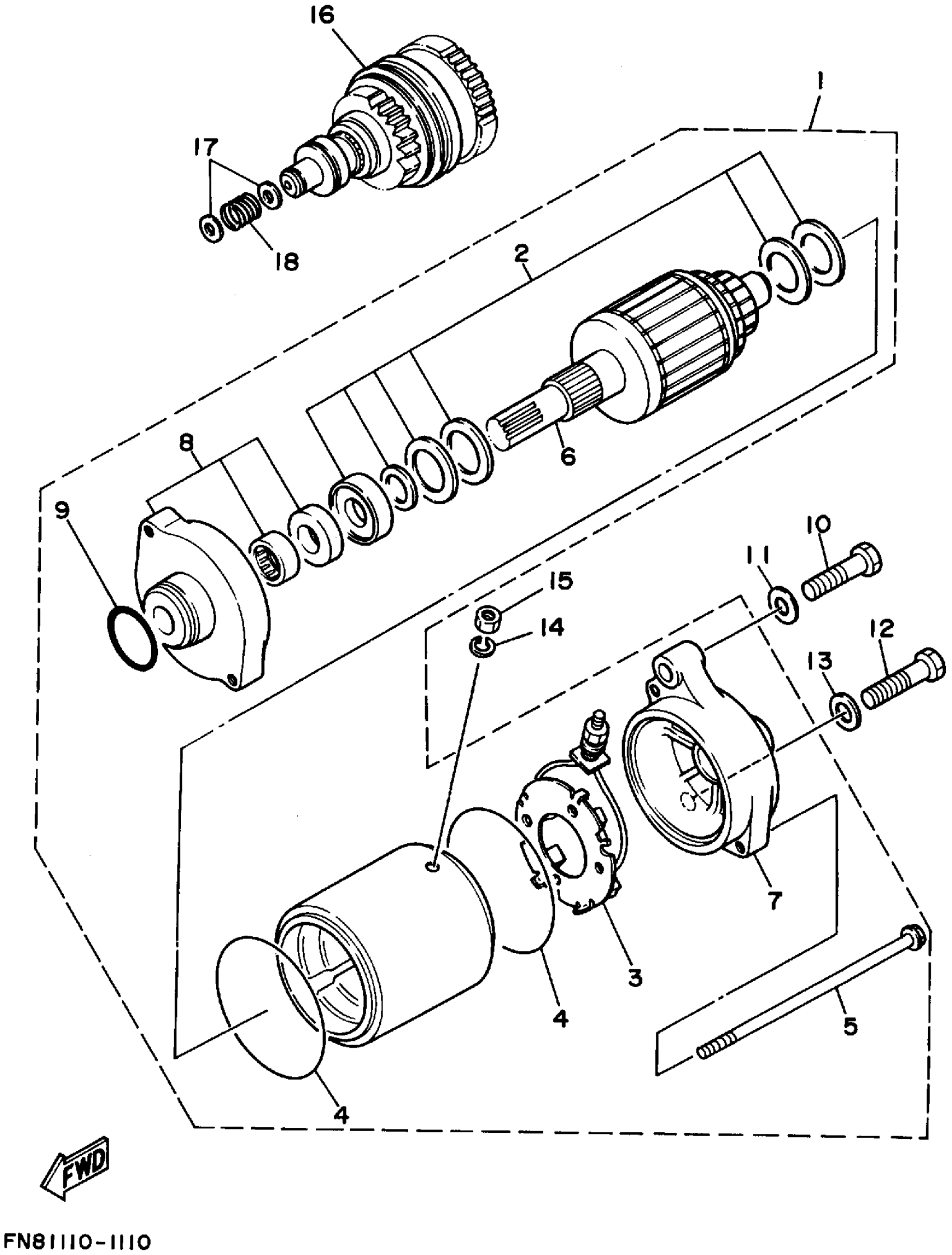

Yamaha WRB650T (WAVE RUNNER VXR) FN8M 1995 STARTING MOTOR Diagram

Description

Price

STARTING MOTOR ASSY

6M6-81800-10-00

$367.90

WASHER KIT

3AJ-81809-00-00

Unavailable

. BRUSH HOLDER ASSY

6M6-81840-10-00

$122.71

GASKET

35C-81844-00-00

Unavailable

. BOLT

6M6-81826-00-00

$8.51

. ARMATURE ASSY

6M6-81850-00-00

$487.86

. REAR BRACKET ASSY

6M6-81820-00-00

$171.20

. FRONT BRACKET ASSY

6M6-81830-00-00

$136.35

O-RING (437)

93210-24235-00

$5.34

BOLT

97014-08040-00

$4.90

.. WASHER, PLATE

92990-08600-00

$2.17

BOLT

97013-08035-00

$4.48

.. WASHER, PLATE

92990-08600-00

$2.17

WASHER, SPRING

92995-06100-00

$2.95

NUT(650)

95380-06700-00

$5.75

IDLE GEAR COMP.

6M6-8183E-01-00

$431.80

WASHER, PLAIN (646)

92990-06600-00

Unavailable

SPRING, COMPRESSION

90501-14M73-00

$7.40
