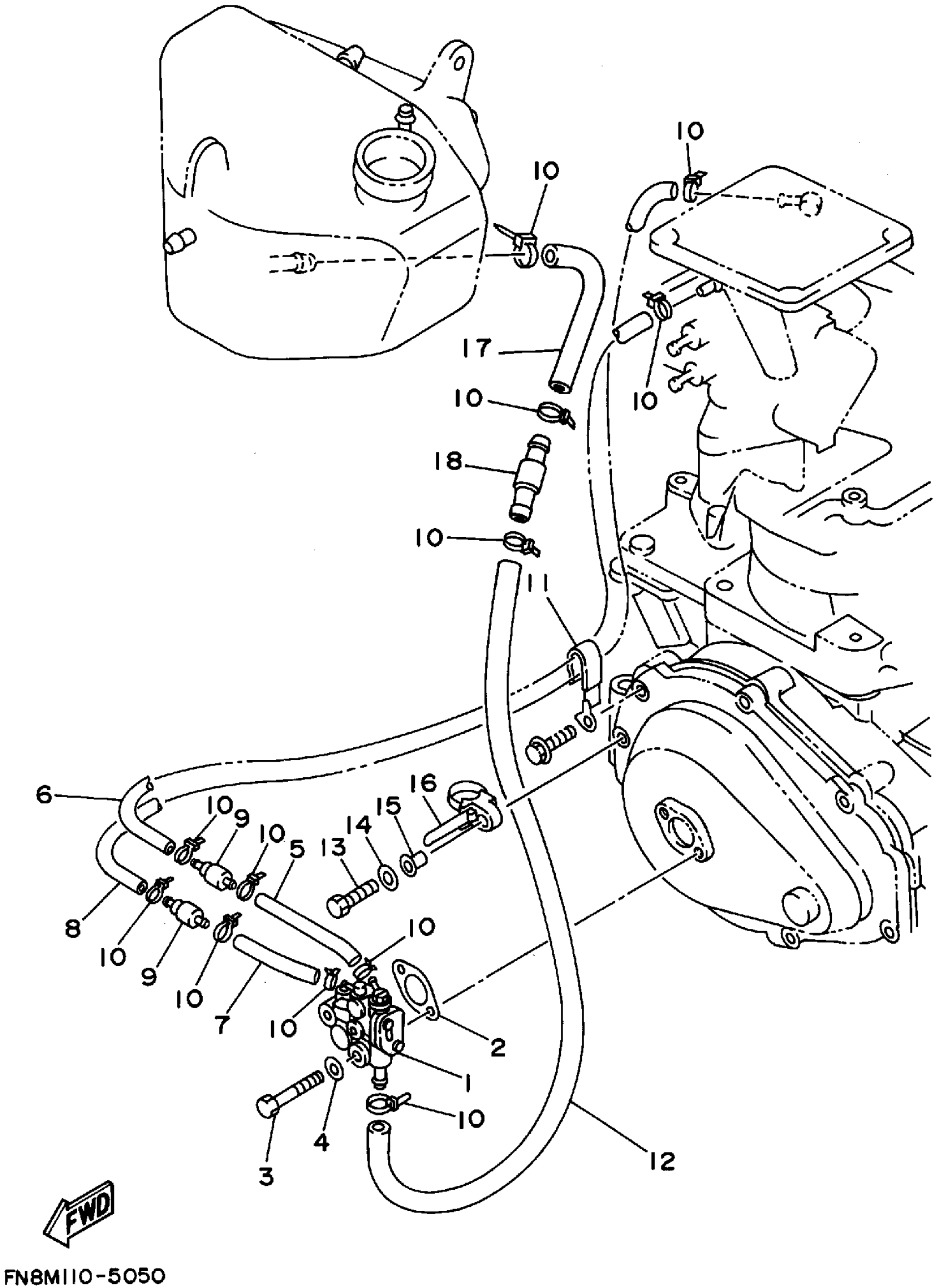

Yamaha WRB650T (WAVE RUNNER VXR) FN8M 1995 OIL PUMP (FOR OIL INJECTION) Diagram

#

Description

Price

1

OIL INJECTION PUMP ASSEMBLY

61L-13200-10-00

Unavailable

2

. GASKET, PUMP CASE

6R8-13116-A0-00

Unavailable

3

BOLT(J52)

97080-06035-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

HOSE(62T)

90446-07M48-00

Unavailable

6

HOSE(62T)

90446-07M48-00

Unavailable

7

HOSE(62T)

90446-07M48-00

Unavailable

8

HOSE(62T)

90446-07M48-00

Unavailable

9

VALVE, CHECK

6R3-13183-10-00

Unavailable

10

CLAMP

90465-10098-00

Unavailable

11

CLAMP

90465-08M37-00

Unavailable

12

HOSE (L390)

90445-115K6-00

$14.99

13

BOLT(J52)

97080-06035-00

Unavailable

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

COLLAR

90387-06M05-00

Unavailable

16

CLAMP

90465-12M53-00

Unavailable

17

HOSE (L390)

90445-115K6-00

$14.99

18

PIPE, JOINT 2

6R3-24377-00-00

Unavailable
