Description

Price

1

COVER

61X-51381-00-00

Unavailable

2

COLLAR

90387-06M60-00

Unavailable

3

GROMMET(6R7)

90480-06M46-00

$12.49

4

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

Unavailable

5

PIN, DOWEL (614)

93606-12019-00

$4.24

6

SHAFT, COUPLER

62E-51323-00-00

Unavailable

7

O-RING(6R7)

93210-17MA4-00

$7.49

8

HOUSING, BEARING

61L-45332-01-CA

Unavailable

9

HOSE (L445)

90445-09M21-00

$26.99

10

CLAMP, HOSE(61L)

90460-11M17-00

$20.99

11

NIPPLE, HOSE

61L-45378-00-00

Unavailable

12

OIL SEAL(62T)

93101-25M55-00

$30.99

13

CIRCLIP

93430-47M04-00

Unavailable

14

BEARING

93305-205U0-00

Unavailable

15

OIL SEAL

93101-24001-00

$31.99

16

BOLT, WITH WASHER

90119-08907-00

Unavailable

17

SHIM (T=0.5)

GD0-67249-A0-00

Unavailable

17

SHIM (T=1.0)

GD0-67249-00-10

Unavailable

18

PIPE 1

FN8-6883B-01-00

Unavailable

19

BAND, HOSE 52

90601-152U3-00

Unavailable

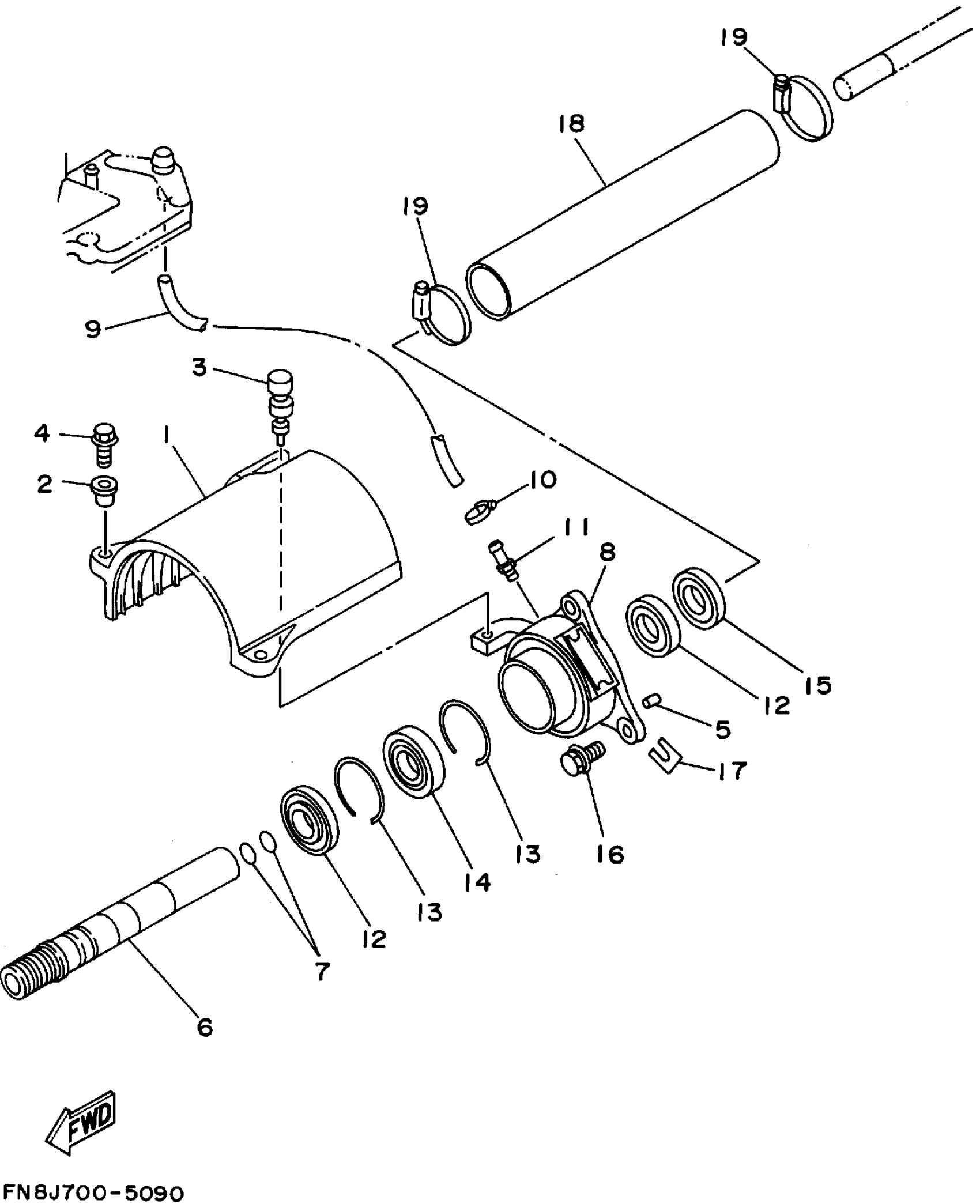

Yamaha WRB650T (WAVE RUNNER VXR) FN8M 1995 JET UNIT 2 Diagram

COVER

COLLAR

GROMMET(6R7)

BOLT, HEXAGON W/W DEEP RECESS

PIN, DOWEL (614)

SHAFT, COUPLER

O-RING(6R7)

HOUSING, BEARING

HOSE (L445)

CLAMP, HOSE(61L)

NIPPLE, HOSE

OIL SEAL(62T)

CIRCLIP

BEARING

OIL SEAL

BOLT, WITH WASHER

SHIM (T=0.5)

SHIM (T=1.0)

PIPE 1

BAND, HOSE 52
