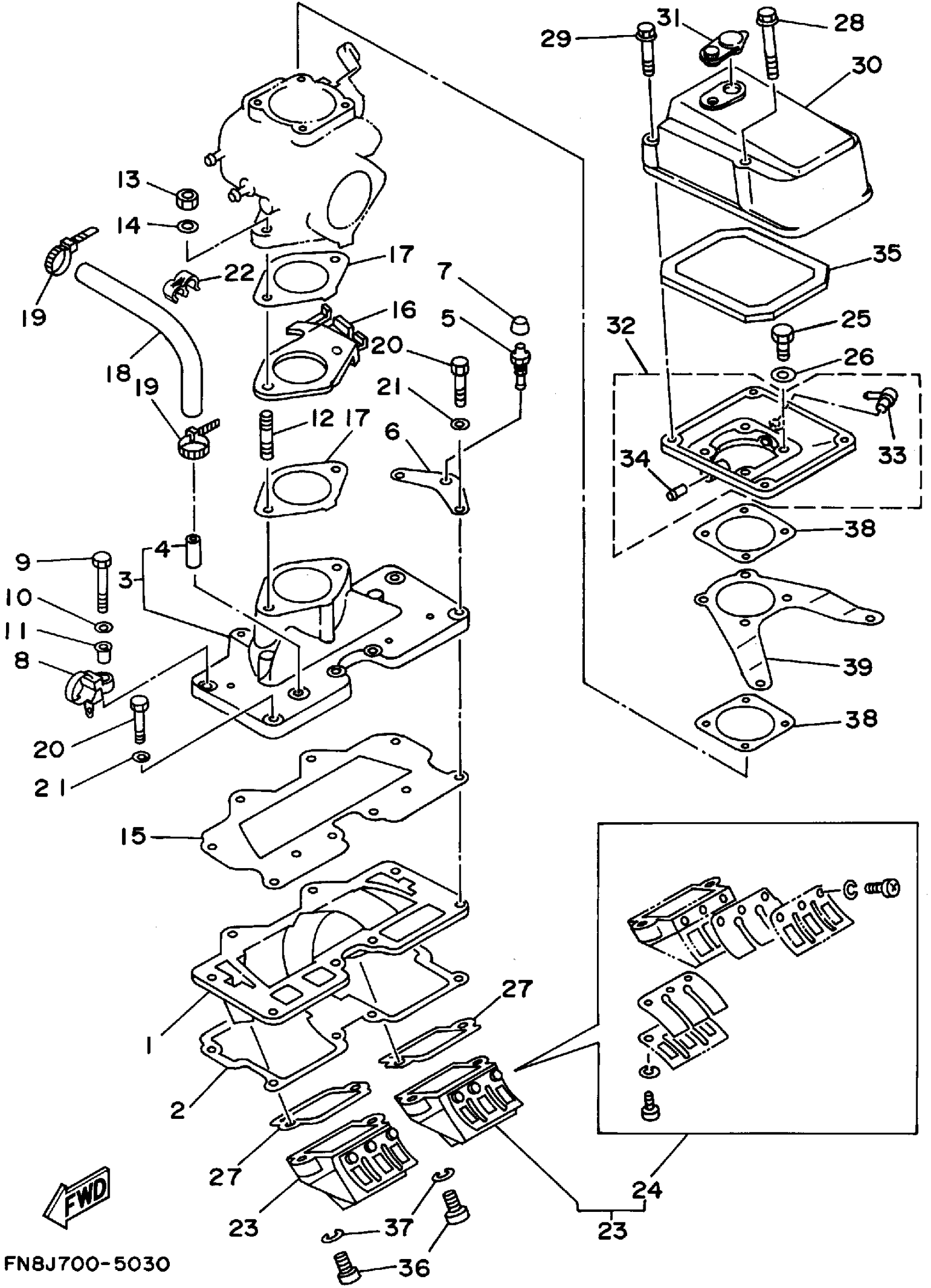

Yamaha WRB650T (WAVE RUNNER VXR) FN8M 1995 INTAKE Diagram
#
1
MANIFOLD 1
6M6-13641-00-94
Unavailable
2
GASKET
6M6-13566-A2-00
Unavailable
3
MANIFOLD,INTAKE
6M6-13555-01-94
Unavailable
4
. PIPE, JOINT 4
652-24461-00-00
Unavailable
5
NIPPLE, GREASE
61L-5169A-00-00
Unavailable
6
PLATE
61L-14243-00-00
Unavailable
7
CAP, GREASE NIPPLE
663-45119-01-00
$2.24
8
CLAMP
90465-12M53-00
Unavailable
9
BOLT, HEXAGON
97080-06045-00
$4.46
10
WASHER, PLAIN (646)
92990-06600-00
$2.80
11
COLLAR
90387-06M05-00
Unavailable
12
BOLT, STUD
90116-08M14-00
Unavailable
13
NUT (661)
95380-08600-00
$7.49
14
.. WASHER, PLATE
92990-08600-00
Unavailable
15
GASKET
6M6-13563-A1-00
Unavailable
16
PLATE
6M6-14527-02-94
Unavailable
17
GASKET, MANIFOLD
6M6-13556-A1-00
Unavailable
18
HOSE (L400)
90445-10M43-00
Unavailable
19
CLAMP
90465-10098-00
Unavailable
20
BOLT(3RV)
97014-06035-00
Unavailable
21
WASHER, PLAIN (646)
92990-06600-00
$2.80
22
CLAMP(6R8)
90464-10M38-00
Unavailable
23
REED VALVE ASSEMBLY
6R7-13610-01-00
Unavailable
24
. REED SET
6R7-W0004-00-00
Unavailable
25
BOLT(7U8)
97080-06020-00
Unavailable
26
WASHER, PLAIN (646)
92990-06600-00
$2.80
27
GASKET, VALVE SEAT
6M6-13621-A1-00
Unavailable
28
BOLT, WITH WASHER
90119-05M02-00
Unavailable
29
BOLT, WITH WASHER
90119-05M01-00
Unavailable
30
COVER, CARBURETOR 1
61L-14283-01-00
Unavailable
31
GROMMET
6K8-14435-00-00
Unavailable
32
COVER, CARBURETOR 2
6R8-14284-00-98
Unavailable
33
NIPPLE, HOSE
6E5-11372-01-00
Unavailable
34
. PIPE, JOINT
6H1-14485-00-00
Unavailable
35
ELEMENT, AIR CLEANER
6M6-14451-00-00
Unavailable
36
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
37
WASHER, PLAIN (646)
92990-05600-00
Unavailable
38
GASKET, AIR COOLER COVER 1
6M6-13674-A1-00
Unavailable
39
PLATE
6R7-14255-00-00
Unavailable
