1994 Yamaha Wave Runner VXR (WRB650S) Electrical 2 Diagram

← All diagrams

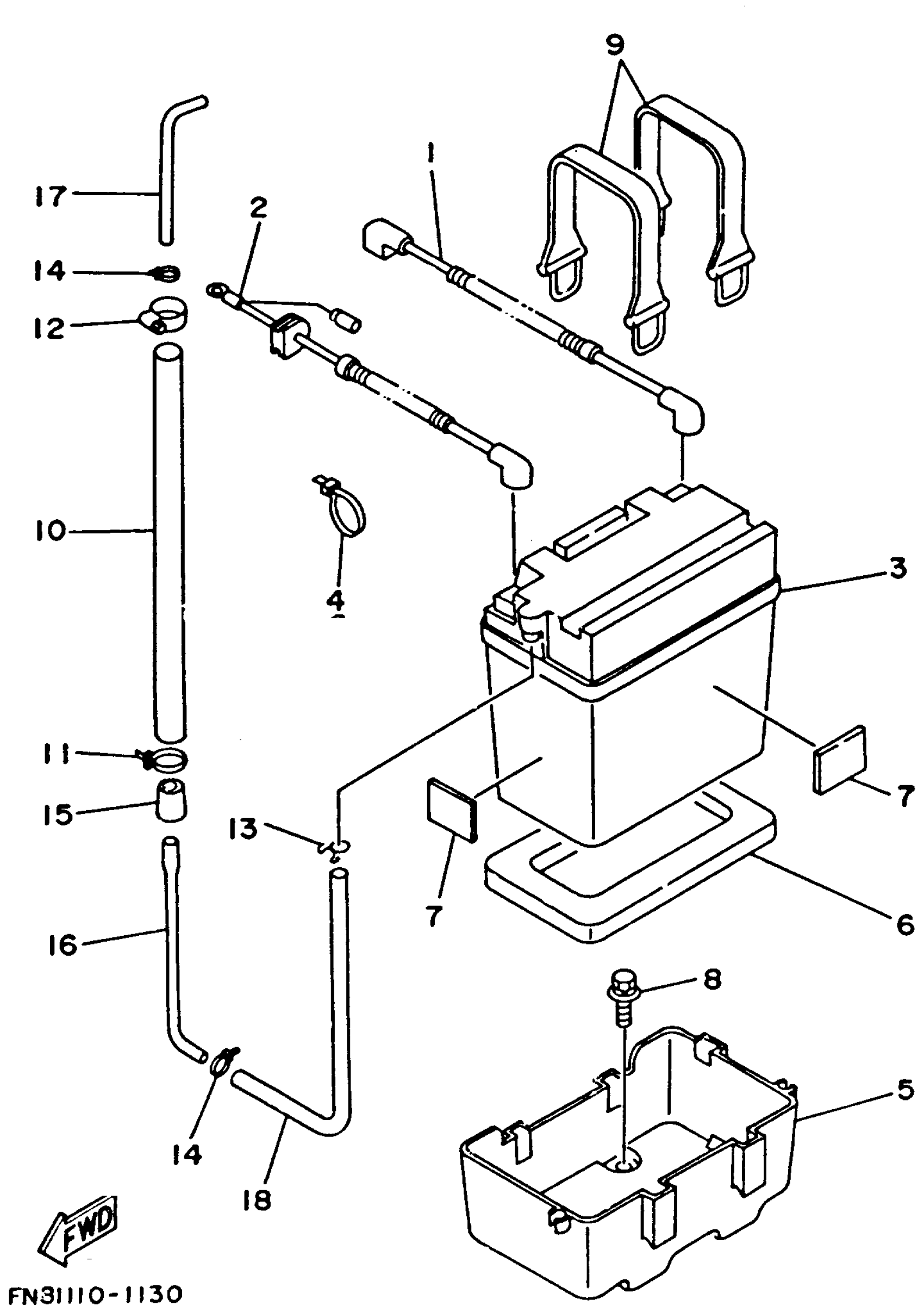

Find the part on the Electrical 2 diagram for your 1994 Yamaha Wave Runner VXR (WRB650S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Wave Runner VXR (WRB650S) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRE, LEAD

61L-82117-00-00

1

$106.99

In stock

2

WIRE, LEAD

61L-82117-10-00

1
Out of stock

3

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

1

$180.91

In stock

4

BAND (EU0)

90601-20009-00

1

$6.46

In stock

5

CASE, BATTERY

EW2-68211-00-00

1

$38.49

In stock

6

PAD, BATTERY

F1S-U8221-00-00

1

$3.00

In stock

7

PAD, BATTERY 2

EU0-68221-30-00

1

$46.99

In stock

8

BOLT WITH WASHER (EW2)

90119-06920-00

1

$4.74

In stock

9

BAND,BATTERY

EU0-68218-04-00

1

$40.53

In stock

10

HOSE 1

90669-03003-00

1
Out of stock

11

BAND

90601-200U1-00

1

$2.89

In stock

12

HOSE CLAMP ASSY

90450-32097-00

1

$13.99

In stock

13

CLIP

90467-08M10-00

1
Out of stock

14

CLAMP

90465-10098-00

1

$2.24

In stock

15

CAP

EU0-62155-00-00

1
Out of stock

16

ELBOW VENT 12

EU0-62156-32-00

1
Out of stock

17

ELBOW, VENTILATER 14

FN8-62156-50-00

1

$16.99

In stock

18

HOSE, AIR VENT 5

FJ0-67856-40-00

1

$16.99

In stock
