1994 Yamaha Wave Runner VXR (WRB650S) Electrical 1 Diagram

← All diagrams

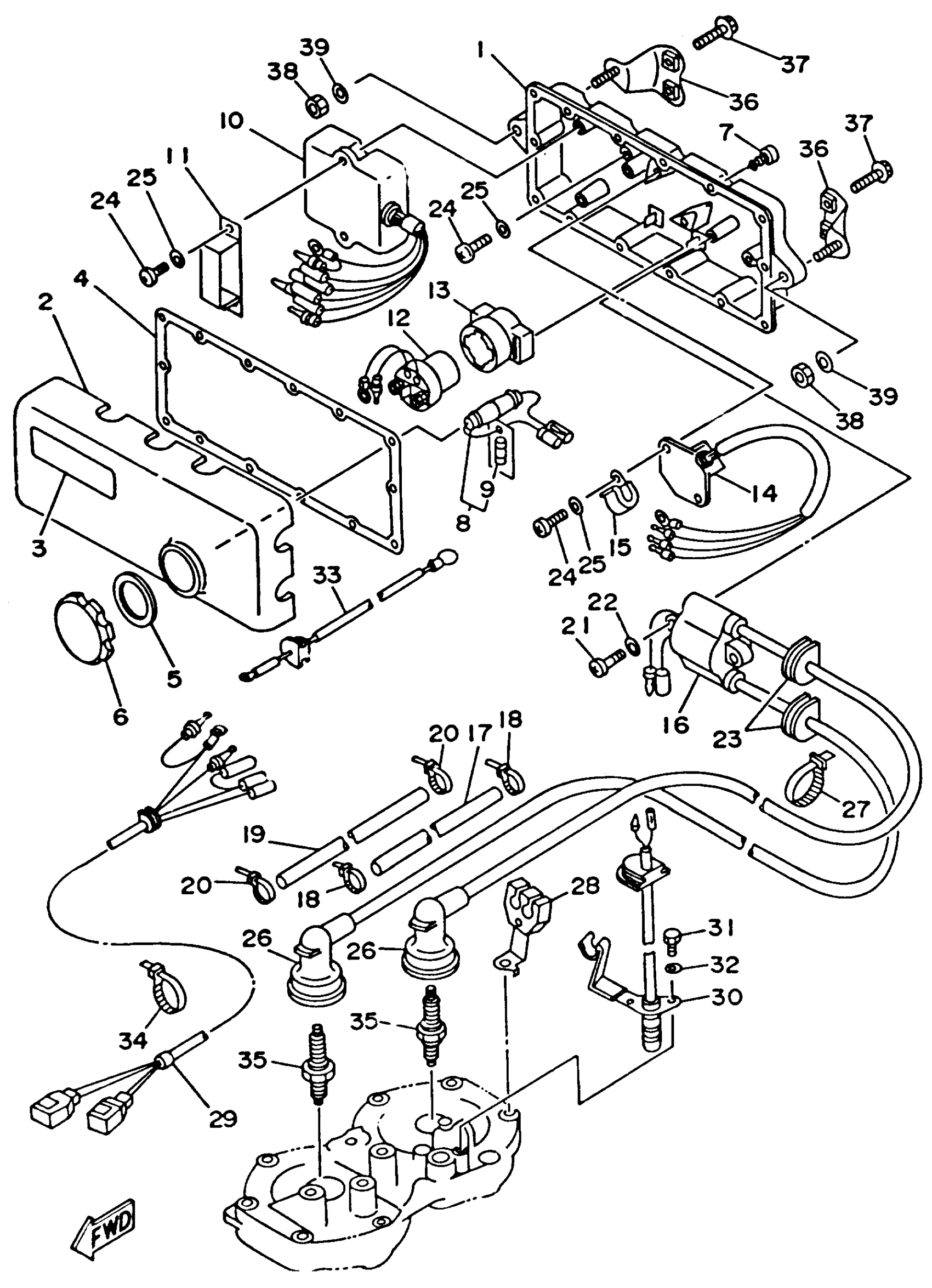

Find the part on the Electrical 1 diagram for your 1994 Yamaha Wave Runner VXR (WRB650S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Wave Runner VXR (WRB650S) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING

6M6-8552A-01-8P

1

$138.99

In stock

2

COVER, CASE

6M6-8552E-01-00

1

$79.49

In stock

3

MARK 3

6R7-83623-40-00

1

$7.38

In stock

4

GASKET, TERMINAL

6M6-81921-00-00

1

$20.98

In stock

5

GASKET

6M6-81844-00-00

1

$10.99

In stock

6

CAP

6M6-8132W-00-00

1

$14.49

In stock

7

SCREW, TAPPING(65J)

97780-60625-00

1

$2.75

In stock

8

FUSE HOLDER ASSY

6K8-82150-02-00

1
Out of stock

9

FUSE (10A)

1E6-82151-00-00

1

$6.22

In stock

10

C.D.I. UNIT ASSY

6M6-85540-02-00

—
Out of stock

11

CLAMP

90464-06M29-00

1

$6.46

In stock

12

STARTER RELAY ASSY

6G1-81941-10-00

1

$71.27

In stock

13

HOLDER, RELAY

6M6-81952-01-00

1
Out of stock

14

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

1

$89.88

In stock

15

CLAMP

90465-08028-00

1

$4.62

In stock

16

IGNITION COIL ASSEMBLY

61L-85570-00-00

1
Out of stock

17

TUBE, CORD 2

6R8-82352-00-00

1
Out of stock

18

CLAMP

90465-10098-00

1

$2.24

In stock

19

TUBE, CORD 2

6R8-82352-00-00

1
Out of stock

20

CLAMP

90465-10098-00

1

$2.24

In stock

21

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

GROMMET

90480-06M43-00

1

$5.93

In stock

24

SCREW, PAN

98507-06014-00

—

$6.18

In stock

25

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

26

PLUG CAP ASSEMBLY

6K8-82370-00-00

1
Out of stock

27

CLAMP

90465-10098-00

1

$2.24

In stock

28

CLAMP, CORD

6R7-82361-00-00

1
Out of stock

29

EXTENSION, WIRE LEAD

61L-82553-00-00

1
Out of stock

30

THERMO SWITCH ASSY

6R7-82560-00-00

1
Out of stock

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

WIRE, LEAD

62E-82117-20-00

1

$89.49

In stock

34

CLAMP

90465-10098-00

1

$2.24

In stock

35

1

$4.21

In stock

36

BRACKET, ELECTRIC BOX

EW2-68156-00-00

1

$19.79

In stock

37

BOLT,FLANGE (EW2)

90105-06903-00

—

$5.20

In stock

38

. NUT

95380-08700-00

1

$3.07

In stock

39

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock
