STEERING 1

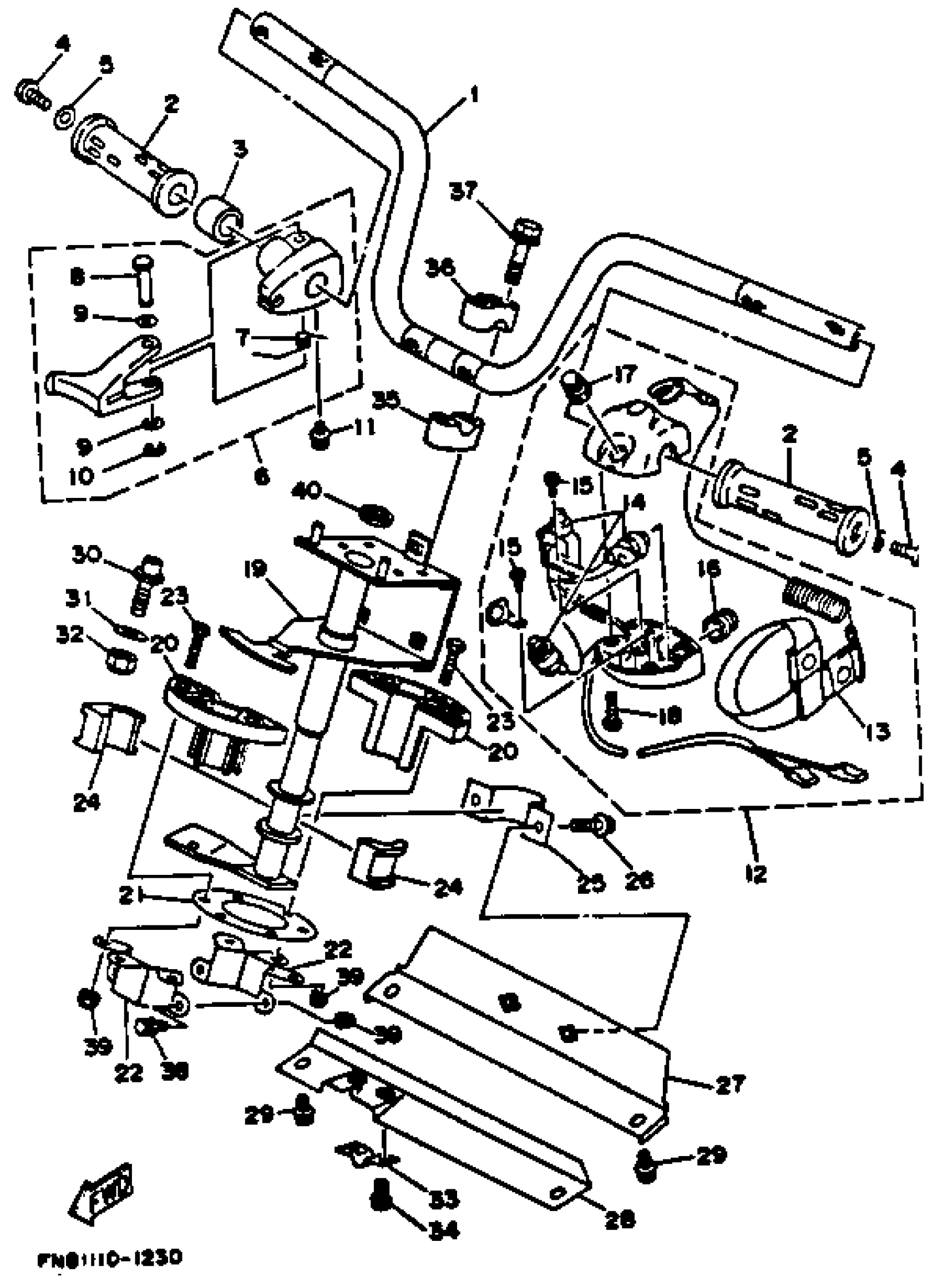

1993 Yamaha WRB650RA Steering 1 Diagram
Find the part on the Steering 1 diagram for your 1993 Yamaha WRB650RA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HANDLE
FN8-U1552-01-00
9
WASHER, PLAIN (646)
92990-05600-00
19
COLUMN, STEERING
FN8-61541-01-00
20
BEARING, COLUMN
EU0-61417-00-00
21
SEAL, RUBBER
EU0-61439-30-00
22
JOINT, BEARING 1
FN8-6158B-01-00
25
JOINT, BEARING
EU0-61588-00-00
26
BOLT, WITH WASHER
90119-08903-00
27
BRACKET, BEARING
FN8-61433-00-00
28
BRACKET, STOPPER CABLE
FN8-61467-00-00
29
BOLT, WITH WASHER
90119-08903-00
33
STOPPER CABLE
EU0-U1468-00-00
34
BOLT, WITH WASHER
90119-06926-00
37
BOLT, WITH WASHER
90119-08925-00
40
PACKING, STEERING COLUMN
EU0-61469-00-00
