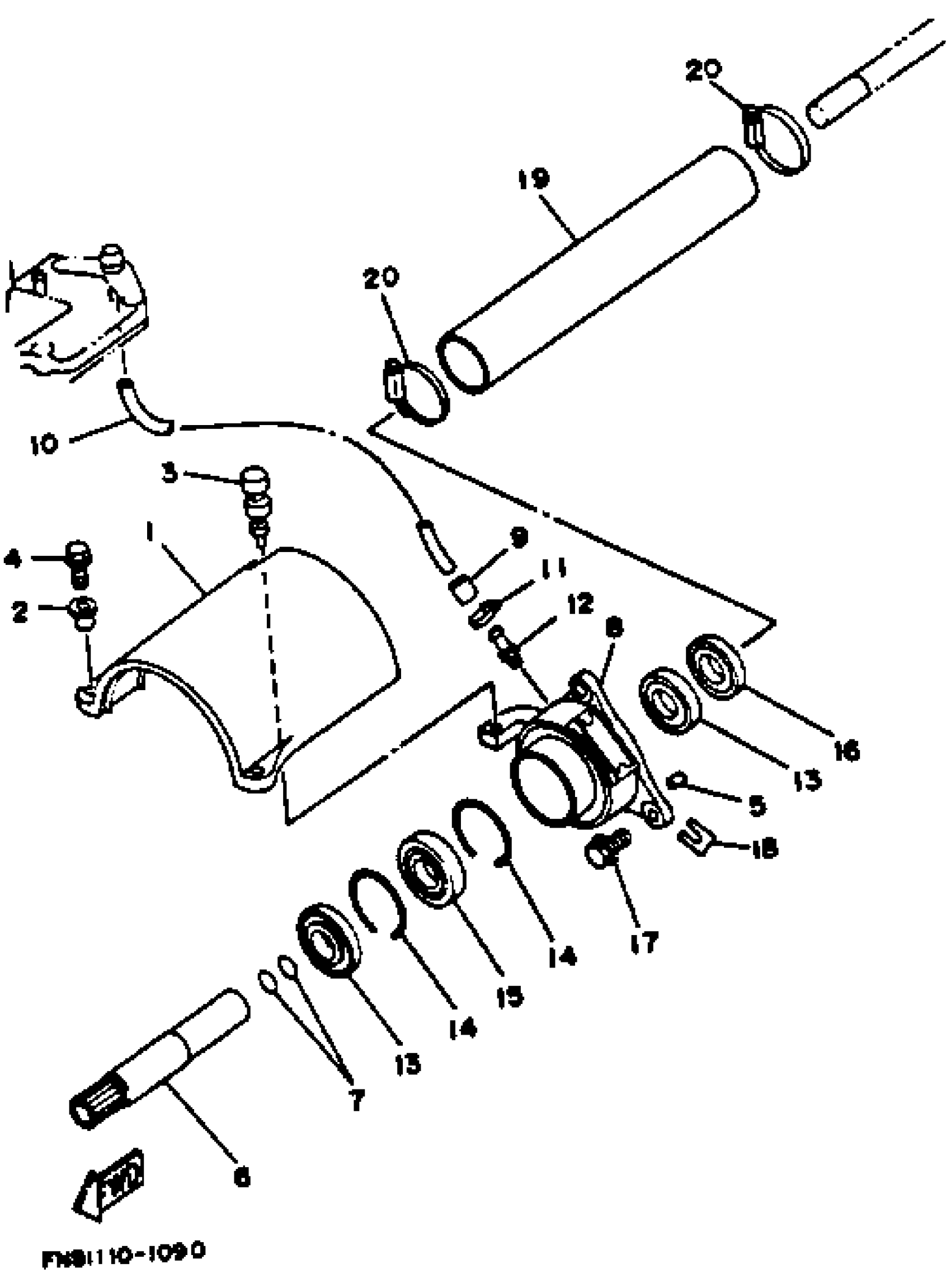

Find the part on the JET Unit 2 diagram for your 1993 Yamaha WRB650RA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha WRB650RA JET Unit 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

61X-51381-00-00

1

$23.60

In stock

2

COLLAR

90387-06M60-00

1

$8.99

In stock

3

GROMMET(6R7)

90480-06M46-00

1

$9.97

In stock

4

1

$0.94

In stock

5

PIN, DOWEL(6R7)

93606-07M17-00

1
Out of stock

6

SHAFT, COUPLER

61L-51323-01-00

1
Out of stock

7

O-RING(6R7)

93210-17MA4-00

1

$4.84

In stock

8

HOUSING,BEARING

99999-02642-00

1
Out of stock

9

BUSH

90386-08006-00

1

$2.77

In stock

10

HOSE (L445)

90445-09M21-00

1

$22.46

In stock

11

CLAMP, HOSE(61L)

90460-11M17-00

1

$17.86

In stock

12

NIPPLE, HOSE

61L-45378-00-00

1

$9.10

In stock

13

OIL SEAL(62T)

93101-25M55-00

1

$26.00

In stock

14

CIRCLIP

93430-47M04-00

1

$5.53

In stock

15

BEARING

93305-205U0-00

1
Out of stock

16

OIL SEAL

93101-24001-00

—

$31.99

In stock

17

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

18

SHIM (T=0.3) (EU0-67354-30-03)

EU0-U7354-30-03

1
Out of stock

18

SHIM (T=0.5) (EU0-67354-30-05)

EU0-U7354-30-05

1
Out of stock

18

SHIM (T=1.0) (EU0-67354-30-10)

EU0-U7354-30-10

1
Out of stock

19

PIPE 1

FN8-6883B-01-00

1
Out of stock

20

BAND, HOSE 52

90601-152U3-00

1

$6.38

In stock
