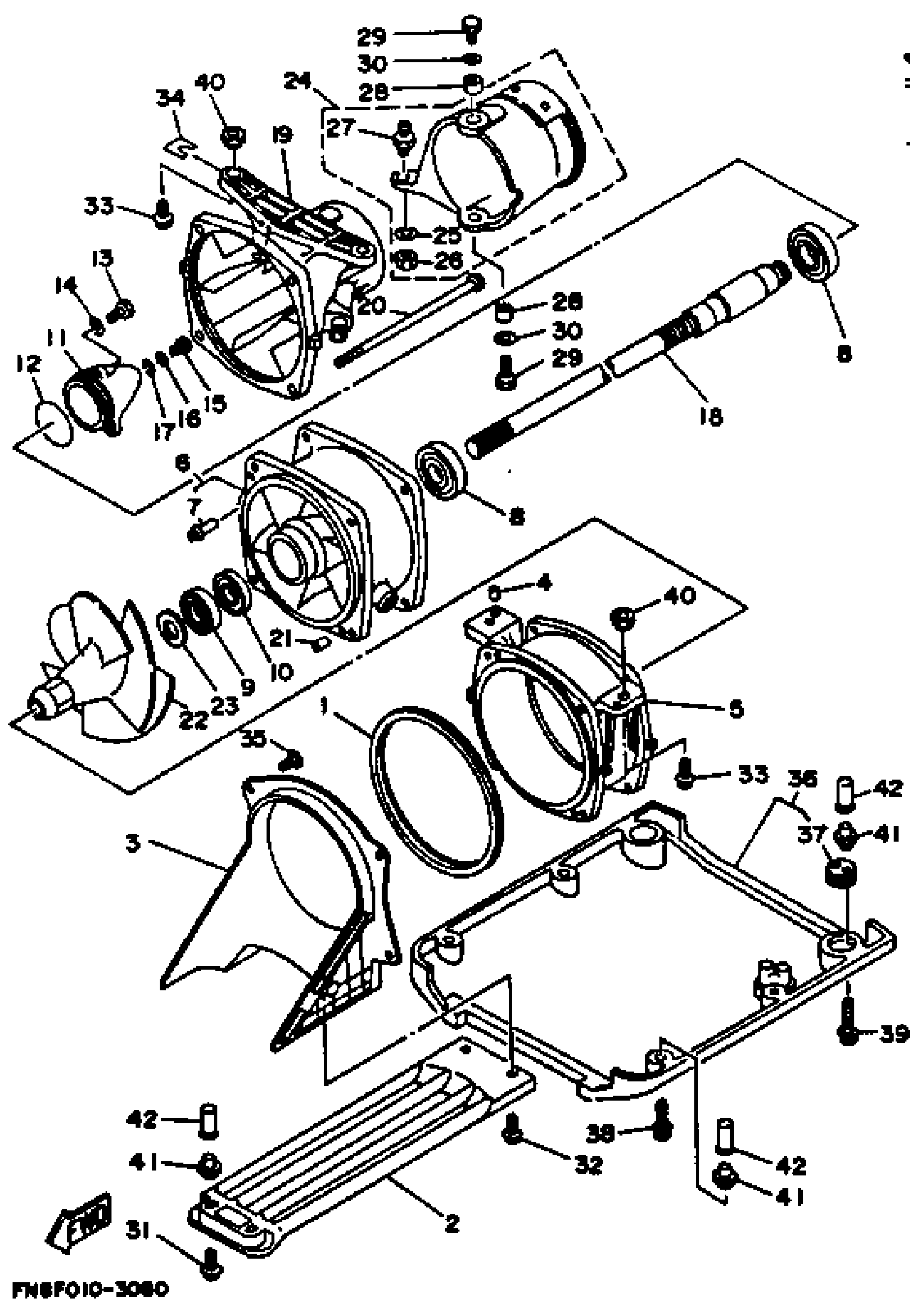

Find the part on the JET Unit 1 diagram for your 1993 Yamaha WRB650RA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Yamaha WRB650RA JET Unit 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. PACKING

6R7-51117-01-00

1

$31.67

In stock

2

SCREEN, INTAKE

61L-51333-00-CA

1
Out of stock

3

DUCT, INTAKE

61L-51311-01-00

1
Out of stock

4

PIN, DOWEL(61L)

93606-09M19-00

1
Out of stock

5

HOUSING, IMPELLER

6R7-51312-03-00

1

$266.13

In stock

6

DUCT, IMPELLER

62T-51315-01-00

1
Out of stock

7

. NIPPLE

6K8-51129-00-00

1

$12.99

In stock

8

BEARING (6K8)

93306-205U1-00

1

$21.14

In stock

9

OIL SEAL(6R7)

93102-25M34-00

1

$14.64

In stock

10

OIL SEAL(6R7)

93101-25M50-00

—

$22.28

In stock

11

CAP

62T-51326-00-00

1

$71.49

In stock

12

. O-RING

93210-46M16-00

1

$7.91

In stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

14

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

15

BOLT(GH1)

97080-06012-00

1
Out of stock

16

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

17

. GASKET

90430-06M03-00

1

$2.97

In stock

18

SHAFT, DRIVE

61L-45511-00-00

1
Out of stock

19

NOZZLE

99999-02872-00

1
Out of stock

20

BOLT, WITH WASHER

90119-06M70-00

1

$7.91

In stock

21

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

22

IMPELLER

61L-51321-00-CA

1
Out of stock

23

SPACER

62T-51348-00-00

1

$48.10

In stock

24

NOZZLE DEFLECOR

61L-51313-00-00

1

$53.14

In stock

25

WASHER, PLATE

90201-06M02-00

1

$2.23

In stock

26

NUT(650)

95380-06700-00

—

$6.17

In stock

27

. BOLT, JOINT

6R7-42316-00-00

1

$34.49

In stock

28

COLLAR(6R7)

90387-08M06-00

—

$8.97

In stock

29

BOLT, HEXAGON

97095-08018-00

1

$3.23

In stock

30

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

31

BOLT, WITH WASHER

90119-06896-00

1

$5.62

In stock

32

BOLT, WITH WASHER

90119-06908-00

1

$2.77

In stock

33

BOLT

90119-10906-00

1
Out of stock

34

SHIM (T=0.1)

EW2-67354-00-01

1
Out of stock

34

SHIM (T=0.3)

EW2-67354-00-03

1
Out of stock

34

SHIM (T=0.5)

EW2-67354-00-05

1
Out of stock

34

SHIM (T=1.0)

EW2-67354-00-10

1
Out of stock

35

SCREW, TAPPING

97780-60520-00

1

$4.15

In stock

36

PLATE 2 ASSEMBLY

FN8-62730-00-00

1
Out of stock

37

BOLT, JACK

FK7-62732-01-00

1
Out of stock

38

BOLT, WITH WASHER

90119-06896-00

1

$5.62

In stock

39

BOLT, WITH WASHER

90119-06914-00

1

$2.77

In stock

40

NUT

90179-10925-00

1

$5.08

In stock

41

NUT

90179-06931-00

1
Out of stock

42

CLING

90190-06014-00

1
Out of stock
