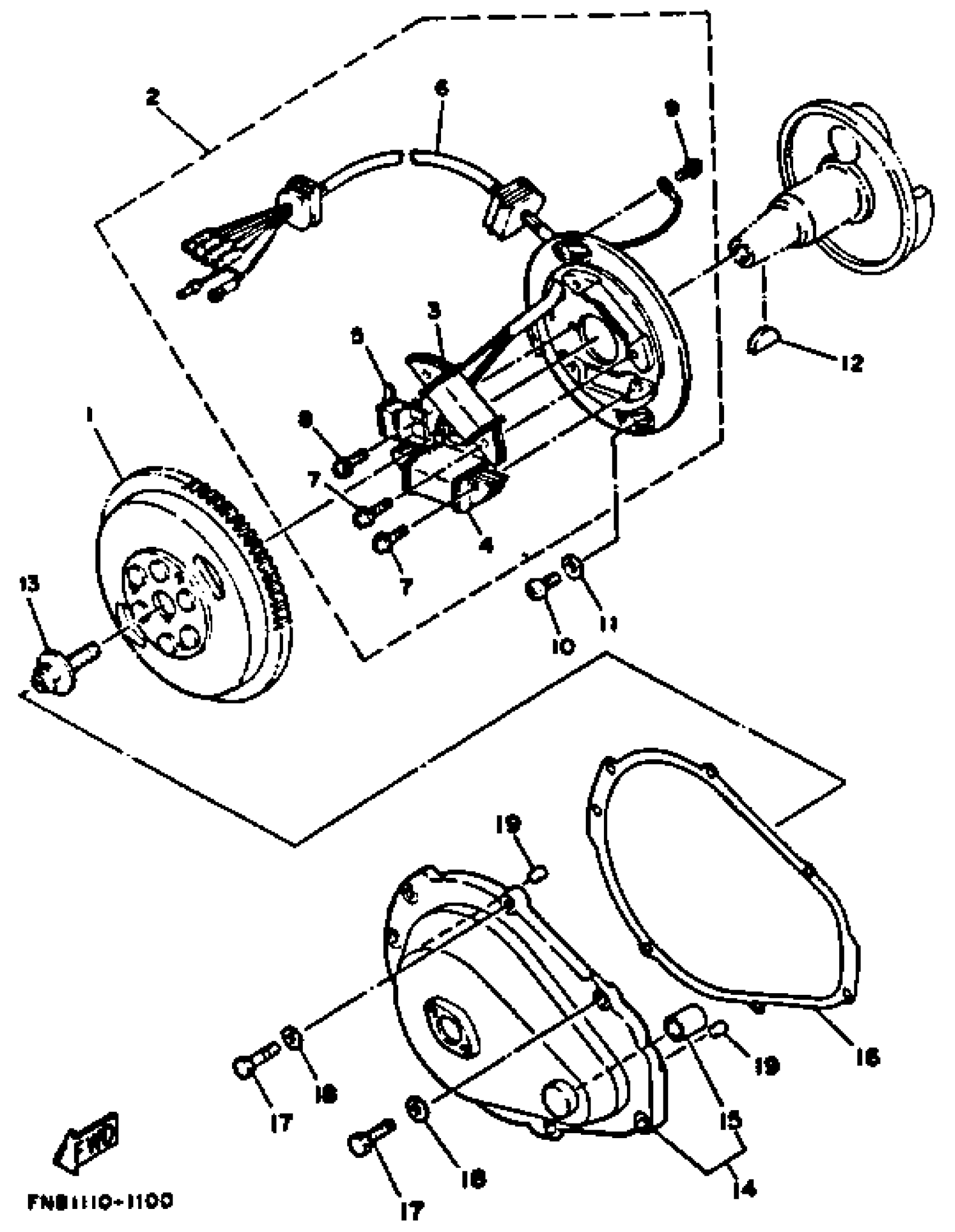

Yamaha WRB650RA 1993 GENERATOR Diagram

#

Description

Price

1

ROTOR ASSEMBLY

6R7-85550-00-00

Unavailable

2

BASE ASSEMBLY

6R8-85560-00-00

Unavailable

3

. COIL, CHARGE

6M6-85520-00-00

Unavailable

4

. COIL, LIGHTING

6M6-85533-00-00

Unavailable

5

. COIL, PULSER

6M6-85580-00-00

Unavailable

6

. LEAD WIRE ASSEMBLY

6R8-85515-00-00

Unavailable

7

. SCREW, WITH WASHER

97902-05125-00

Unavailable

8

. SCREW, WITH WASHER

97902-04122-00

Unavailable

9

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

10

SCREW, PAN HEAD

98580-06016-00

Unavailable

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

KEY, WOODRUFF

90280-05001-00

$12.49

13

BOLT

90109-10M47-00

Unavailable

14

COVER, FLYWHEEL

6R8-81337-00-8S

Unavailable

15

. BUSH, SOLID

90380-12M29-00

Unavailable

16

. GASKET, HOLE COVER

6M6-81365-A0-00

Unavailable

17

BOLT

90101-06M27-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

$2.80

19

PIN, DOWEL (614)

93606-12019-00

Unavailable
