CYLINDER - CRANKCASE

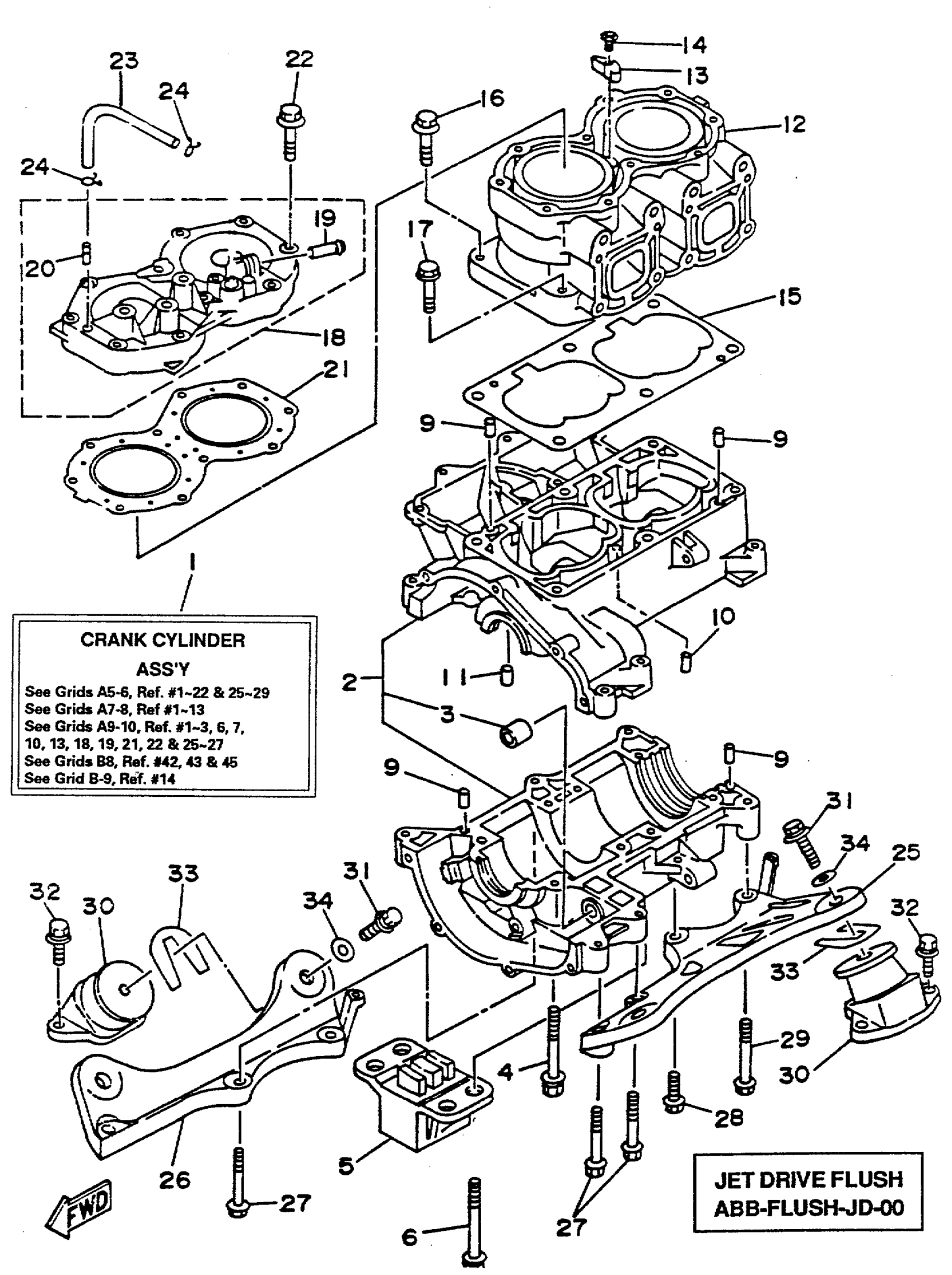

Yamaha WRB650RA 1993 CYLINDER - CRANKCASE Diagram
#
1
CRANK CYLINDER ASSY
61L-W0090-05-8P
Unavailable
2
CRANKCASE ASSY
6M6-15100-00-8S
Unavailable
3
. BUSH, SOLID
90380-12M29-00
Unavailable
4
BOLT, WITH WASHER
90119-08M55-00
Unavailable
5
STOPPER, UPPER MOUNT
61L-44532-00-00
Unavailable
6
BOLT
90109-08M56-00
Unavailable
9
PIN, DOWEL (614)
93606-12019-00
$4.24
10
PIN (2H7)
93603-10049-00
Unavailable
11
PIN, DOWEL (8H1)
93604-07141-00
$2.17
12
CYLINDER 1
61L-11311-01-8S
Unavailable
13
ANODE
6E5-11325-00-00
Unavailable
14
SCREW, FLAT HEAD
98780-04016-00
Unavailable
15
GASKET, CYLINDER
6M6-11351-A2-00
Unavailable
16
BOLT, WITH WASHER
90119-10M56-00
Unavailable
17
BOLT (6F5)
90119-10M07-00
$4.82
18
HEAD, CYLINDER 1
6R7-11111-09-8S
Unavailable
19
. NIPPLE
6K8-51129-00-00
Unavailable
20
. PIPE, JOINT
6R7-14485-00-00
Unavailable
21
GASKET, CYL. HEAD
6R7-11181-A1-00
Unavailable
22
BOLT, WITH WASHER
90119-08019-00
Unavailable
23
HOSE (L200)
90445-07M19-00
Unavailable
24
CLIP
90467-06016-00
Unavailable
25
BRACKET, FRONT UPPER 1
6R7-21415-01-00
Unavailable
26
BRACKET, REAR UPPER 1
6R7-21425-01-00
Unavailable
27
BOLT, WITH WASHER
90119-10M23-00
Unavailable
28
BOLT, WITH WASHER
90119-10M00-00
Unavailable
29
BOLT, WITH WASHER
90119-10M03-00
Unavailable
30
MOUNT RUBBER
6M6-44517-A2-94
Unavailable
31
BOLT, WITH WASHER
90119-08904-00
Unavailable
32
BOLT, WITH WASHER
90119-08038-00
Unavailable
33
PLATE
EU0-67324-00-00
Unavailable
34
SHIM (T=0.1)
EU0-67354-A0-00
Unavailable
34
SHIM (T=0.3)
EU0-67354-B0-00
Unavailable
34
SHIM (T=0.5)
EU0-67354-C0-00
Unavailable
34
SHIM (T=1.0)
EU0-67354-D0-00
Unavailable
34
SHIM (T=2.0)
EU0-67354-E0-00
Unavailable
