1993 Yamaha WRB650RA AIR Filter Diagram

← All diagrams

Find the part on the AIR Filter diagram for your 1993 Yamaha WRB650RA, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

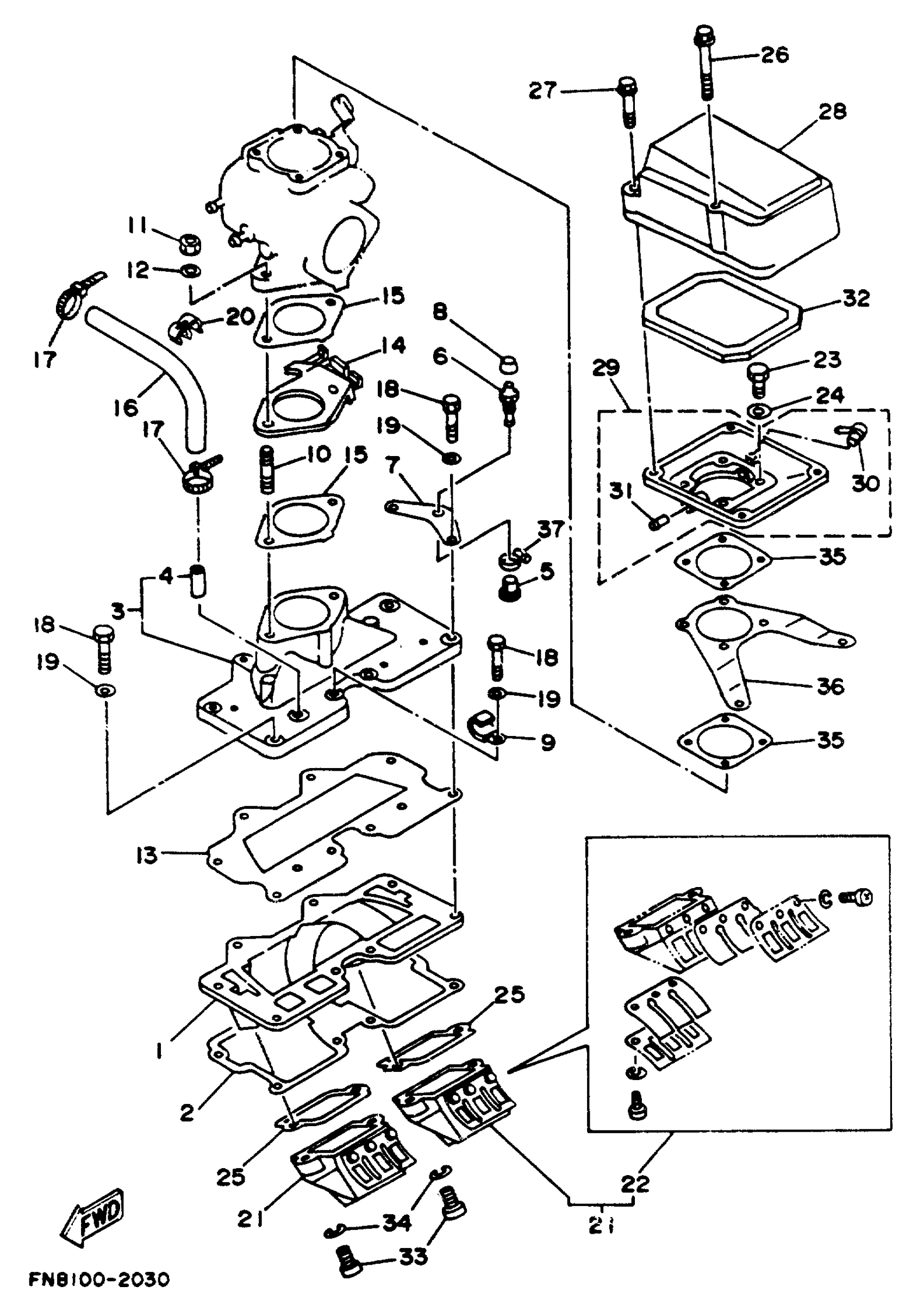

1993 Yamaha WRB650RA AIR Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD 1

6M6-13641-00-94

1
Out of stock

2

GASKET

6M6-13566-A2-00

1
Out of stock

3

MANIFOLD,INTAKE

6M6-13555-01-94

1
Out of stock

4

. PIPE, JOINT 4

652-24461-00-00

1

$4.74

In stock

5

BUSH

90386-08006-00

1

$2.77

In stock

6

NIPPLE, GREASE

61L-5169A-00-00

1

$9.22

In stock

7

PLATE

61L-14243-00-00

1
Out of stock

8

CAP, GREASE NIPPLE

663-45119-01-00

1

$1.86

In stock

9

CLAMP

90465-08028-00

1

$4.62

In stock

10

BOLT, STUD

90116-08M14-00

1

$5.53

In stock

11

NUT (661)

95380-08600-00

1

$6.23

In stock

12

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

13

GASKET

6M6-13563-A1-00

1
Out of stock

14

PLATE

6M6-14527-02-94

1
Out of stock

15

GASKET, MANIFOLD

6M6-13556-A1-00

1

$6.00

In stock

16

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

17

CLAMP

90465-10098-00

1

$2.24

In stock

18

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

19

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

20

CLAMP(6R8)

90464-10M38-00

—

$7.49

In stock

21

REED VALVE ASSEMBLY

6R7-13610-01-00

1
Out of stock

22

. REED SET

6R7-W0004-00-00

1
Out of stock

23

BOLT(7U8)

97080-06020-00

1
Out of stock

24

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

25

GASKET, VALVE SEAT

6M6-13621-A1-00

1
Out of stock

26

BOLT, WITH WASHER

90119-05M02-00

1

$3.16

In stock

27

BOLT, WITH WASHER

90119-05M01-00

1
Out of stock

28

COVER,CARBURETOR

99999-02650-00

1
Out of stock

29

COVER, CARBURETOR 2

6R8-14284-00-98

1
Out of stock

30

NIPPLE, HOSE

6E5-11372-01-00

1

$9.35

In stock

31

. PIPE, JOINT

6H1-14485-00-00

1

$7.15

In stock

32

ELEMENT, AIR CLEANER

6M6-14451-00-00

1
Out of stock

33

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

34

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

35

GASKET, AIR COOLER COVER 1

6M6-13674-A1-00

1

$5.08

In stock

36

PLATE

6R7-14255-00-00

1
Out of stock

37

CLAMP, HOSE(61L)

90460-11M17-00

—

$17.86

In stock
