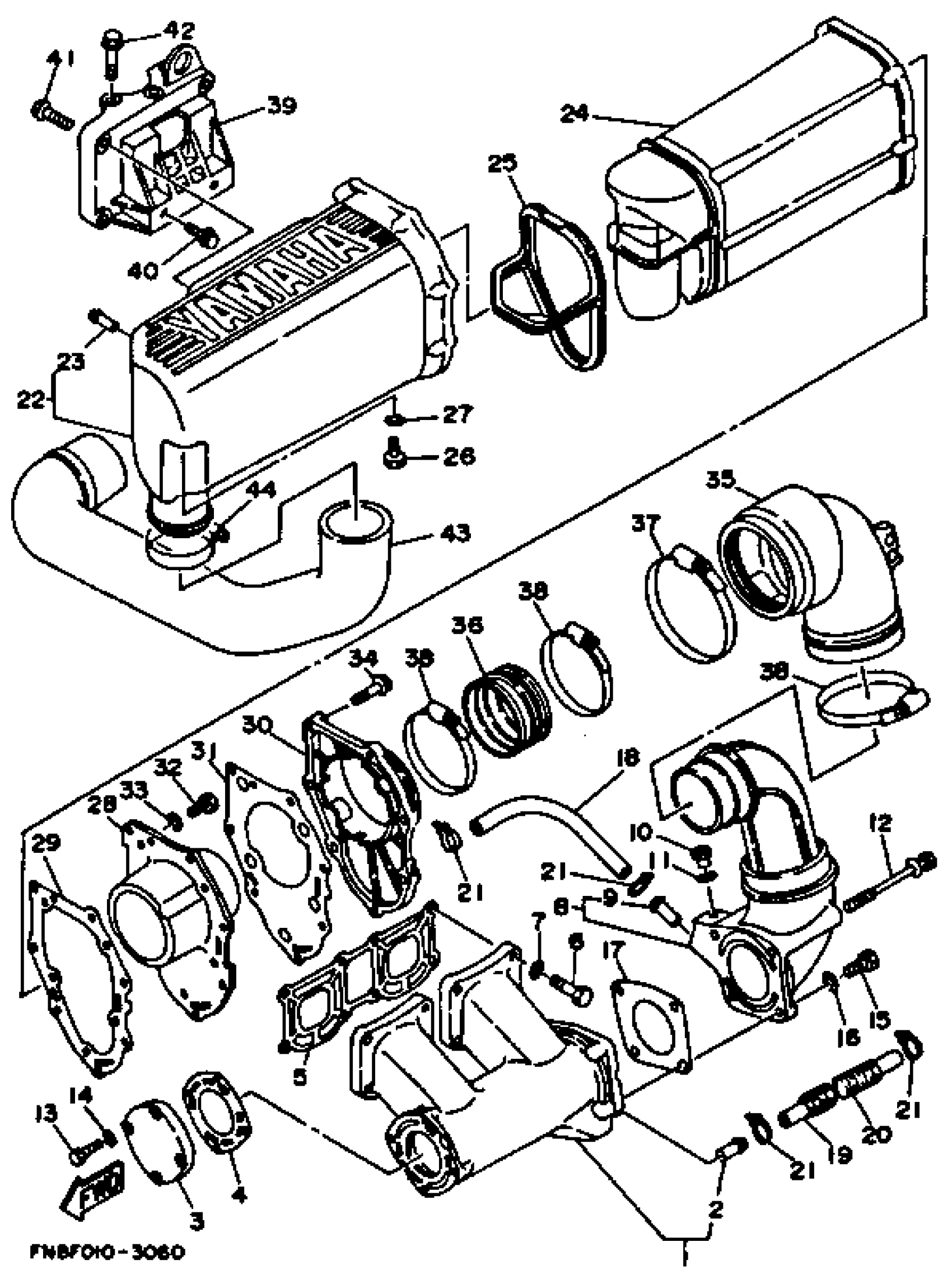

Yamaha WRB650R_61L_020601 FN8B 1993 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

6R7-14711-01-9M

$499.99

2

. NIPPLE

6K8-51129-00-00

$9.87

3

PROTECTOR, MUFFLER 1

6M6-14718-01-8S

$56.70

4

GASKET, MUFFLER DAMPER 1

6M6-14739-A2-00

$12.20

5

GASKET, EXHAUST PIPE

6M6-14613-A0-00

$9.87

6

BOLT

97013-08035-00

$4.48

7

.. WASHER, PLATE

92990-08600-00

$2.41

8

RING, JOINT

61L-14712-00-00

Unavailable

9

. NIPPLE

6K8-51129-00-00

$9.87

10

PLUG, STRAIGHT SCREW

90340-08002-00

$11.42

11

GASKET

90430-08003-00

$1.60

12

BOLT, WITH WASHER

97513-08590-00

Unavailable

13

BOLT

90101-06M27-00

$3.28

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

BOLT (682)

97013-08025-00

$6.34

16

.. WASHER, PLATE

92990-08600-00

$2.41

17

GASKET, MUFFLER DAMPER 2

6R7-14749-A1-00

$13.02

18

HOSE

90446-14M34-00

Unavailable

19

HOSE

90445-14M03-00

Unavailable

20

HOSE(61L)

90446-20M31-00

Unavailable

21

CLAMP

90465-10098-00

$2.24

22

MUFFLER 2

6R7-14721-00-8S

$358.19

23

. PIPE, JOINT

6R7-14485-00-00

$11.93

24

SILENCER, EXHAUST

6R7-14753-00-8S

$199.99

25

SEAL, RUBBER 1

6R7-15761-00-00

$26.85

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

27

WASHER, PLAIN (646)

92990-06600-00

$2.80

28

DIFFUSER

6R7-14785-00-8S

$102.97

29

. GASKET, SILENCER

6R7-14755-A0-00

$17.14

30

OUTER COVER, EXHAUST

6R7-41113-00-8S

$103.39

31

. GASKET, EXHAUST OUTER COVER

6R7-41114-A0-00

$20.57

32

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

33

WASHER, PLAIN (646)

92990-06600-00

$2.80

34

BOLT, WITH WASHER(63M)

97513-06530-00

$3.88

35

JOINT, EXHAUST 1

61L-14615-00-00

$94.77

36

JOINT, EXHAUST 2

61L-14625-00-00

$73.25

37

CLAMP, HOSE

90460-90M11-00

$56.70

38

CLAMP, HOSE(6R7)

90460-70M16-00

Unavailable

39

STAY, MUFFLER 1

6M6-14771-00-00

$97.00

40

BOLT WASHER BASED HEAD (6M6)

90105-10M49-00

Unavailable

41

BOLT, WASHER BASED

90105-10M45-00

$5.37

42

BOLT, WITH WASHER

90119-10M72-00

$5.69

43

PIPE, OUTLET

FN8-E4752-00-00

Unavailable

44

CLAMP, HOSE(6R7)

90460-64M15-00

Unavailable
