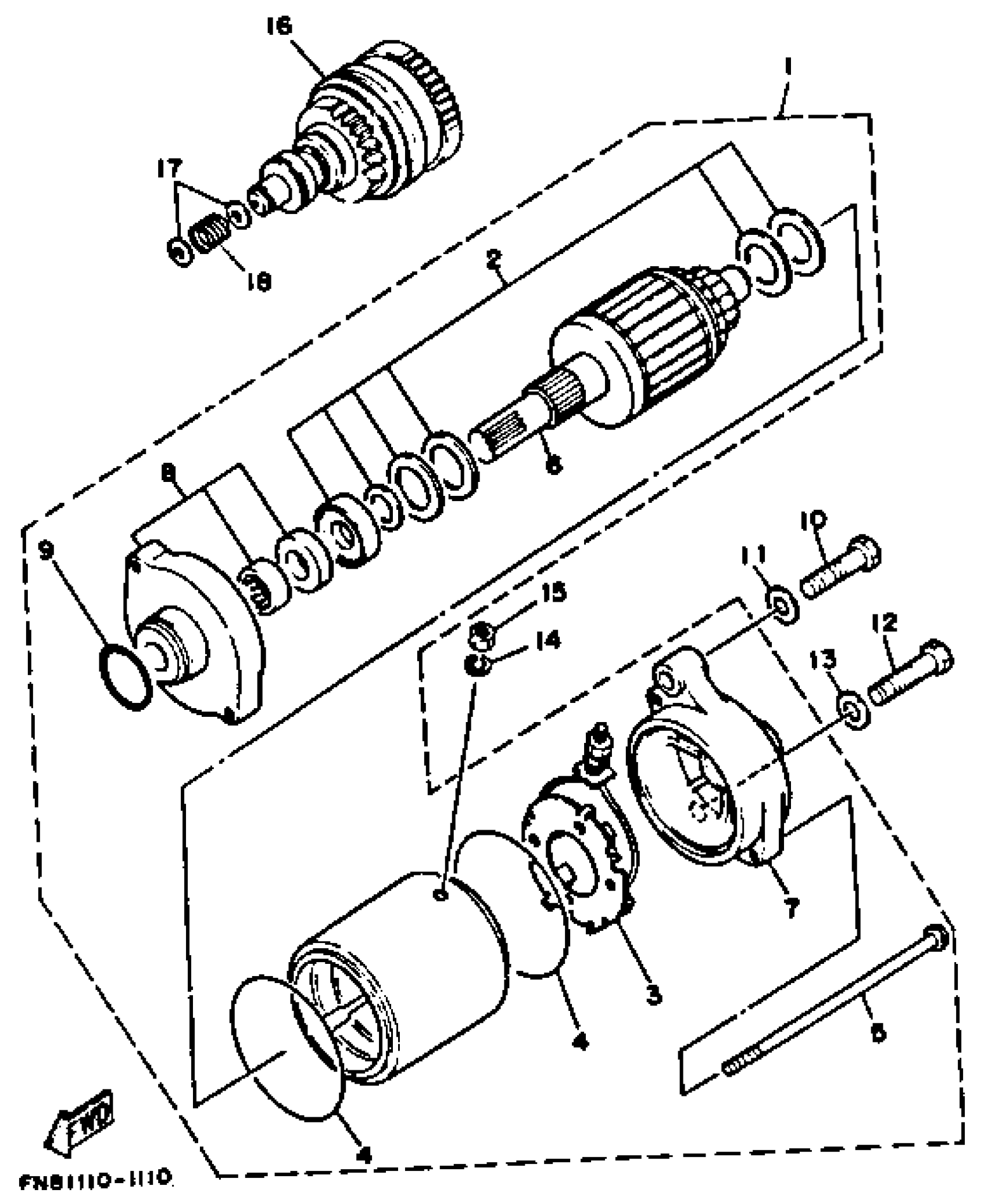

Yamaha WRB650Q_FN8_817001 FN8B 1992 STARTING MOTOR Diagram

#

Description

Price

1

STARTING MOTOR ASSY

6M6-81800-10-00

Unavailable

2

WASHER KIT

3AJ-81809-00-00

Unavailable

3

. BRUSH HOLDER ASSY

6M6-81840-10-00

Unavailable

4

GASKET

35C-81844-00-00

Unavailable

5

. BOLT

6M6-81826-00-00

Unavailable

6

. ARMATURE ASSY

6M6-81850-00-00

Unavailable

7

. REAR BRACKET ASSY

6M6-81820-00-00

Unavailable

8

. FRONT BRACKET ASSY

6M6-81830-00-00

Unavailable

9

O-RING (437)

93210-24235-00

$7.49

10

BOLT

97014-08040-00

$7.49

11

.. WASHER, PLATE

92990-08600-00

Unavailable

12

BOLT

97013-08035-00

$5.60

13

.. WASHER, PLATE

92990-08600-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

NUT(650)

95380-06700-00

$8.49

16

IDLE GEAR COMP.

6M6-8183E-01-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable

18

SPRING, COMPRESSION

90501-14M73-00

Unavailable
