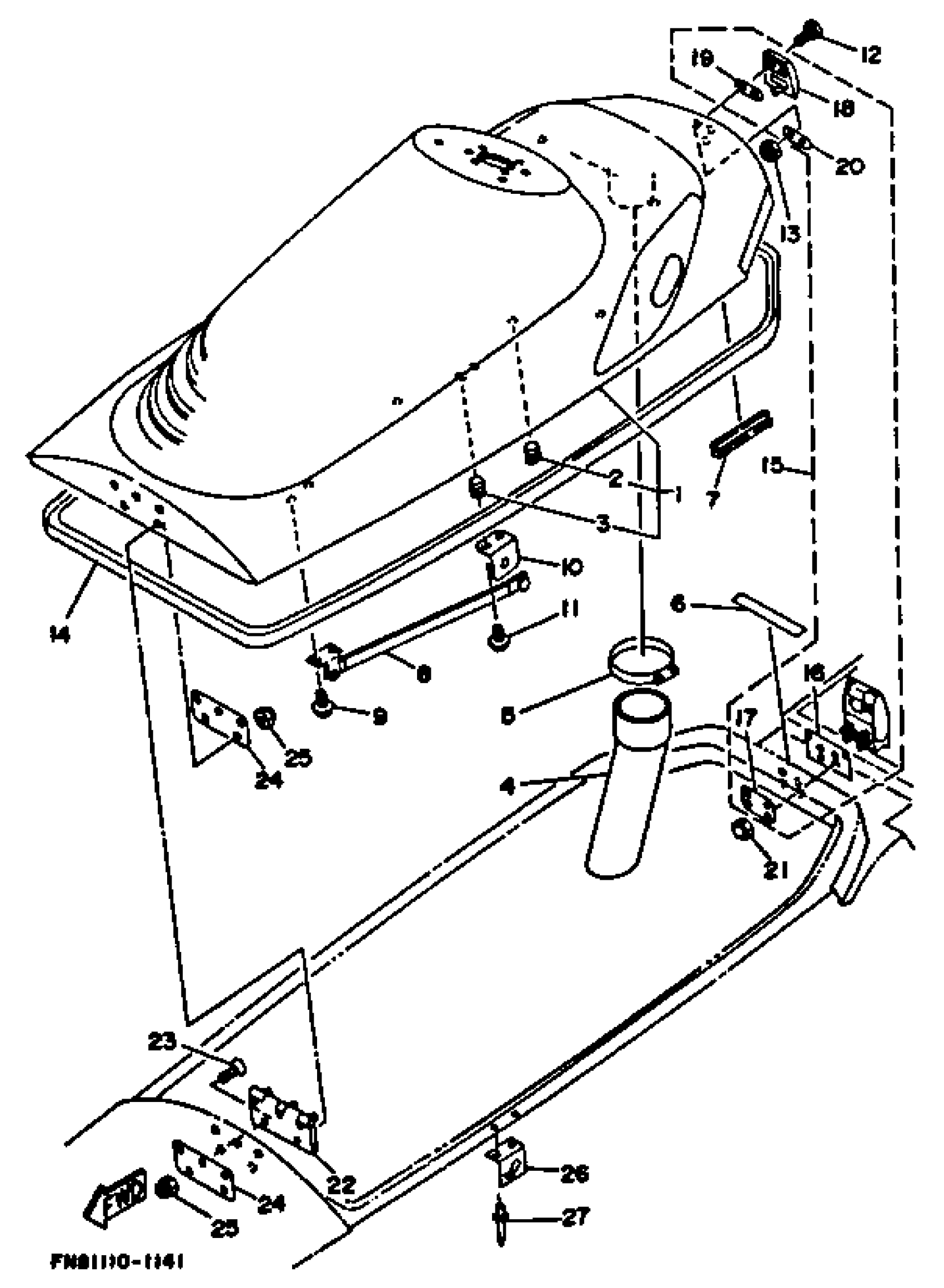

Yamaha WRB650Q_FN8_817001 FN8B 1992 ENGINE HATCH Diagram

#

Description

Price

1

ENGINE HATCH COMP.

FN8-U516D-00-00

Unavailable

2

. NUT

90179-08927-00

Unavailable

3

NUT

90179-069U4-00

Unavailable

4

HOSE, VENTILATOR 1

EW2-62136-01-00

Unavailable

5

BAND, HOSE 68

90601-168U7-00

Unavailable

6

TRIM

FN8-U5162-00-00

Unavailable

7

TRIM 1

FN8-6516C-00-00

Unavailable

8

SUPPORT, HATCH

FN8-62891-01-00

Unavailable

9

SCREW, WITH WASHER

90159-06901-00

Unavailable

10

FIX, PLATE

FN8-62892-00-00

Unavailable

11

SCREW, WITH WASHER

90159-06901-00

Unavailable

12

SCREW

90149-05970-00

Unavailable

13

NUT, FLANGE

95720-05300-00

Unavailable

14

PACKING

FN8-U2664-00-00

Unavailable

15

HATCH LOCK ASSY

FN8-62840-01-00

Unavailable

16

. PACKING, HATCH LOCK

EW2-62845-00-00

Unavailable

17

. PLATE, HATCH LOCK

EW2-62846-00-00

Unavailable

18

. HOOK, HATCH LOCK

FN8-62843-00-00

Unavailable

19

. PACKING, HOOK

EW2-62847-00-00

Unavailable

20

. PLATE, HOOK

EW2-62848-00-00

Unavailable

21

.. NUT

95380-05800-00

Unavailable

22

HINGE

90600-70069-00

Unavailable

23

SCREW, FLAT HEAD

98780-05020-00

Unavailable

24

PLATE

FN8-U5193-00-00

Unavailable

25

NUT, FLANGE

95720-05300-00

Unavailable

26

BRACKET, HATCH SUPPORT

FN8-62884-00-00

Unavailable

27

RIVET, BLIND

90267-48940-00

Unavailable
