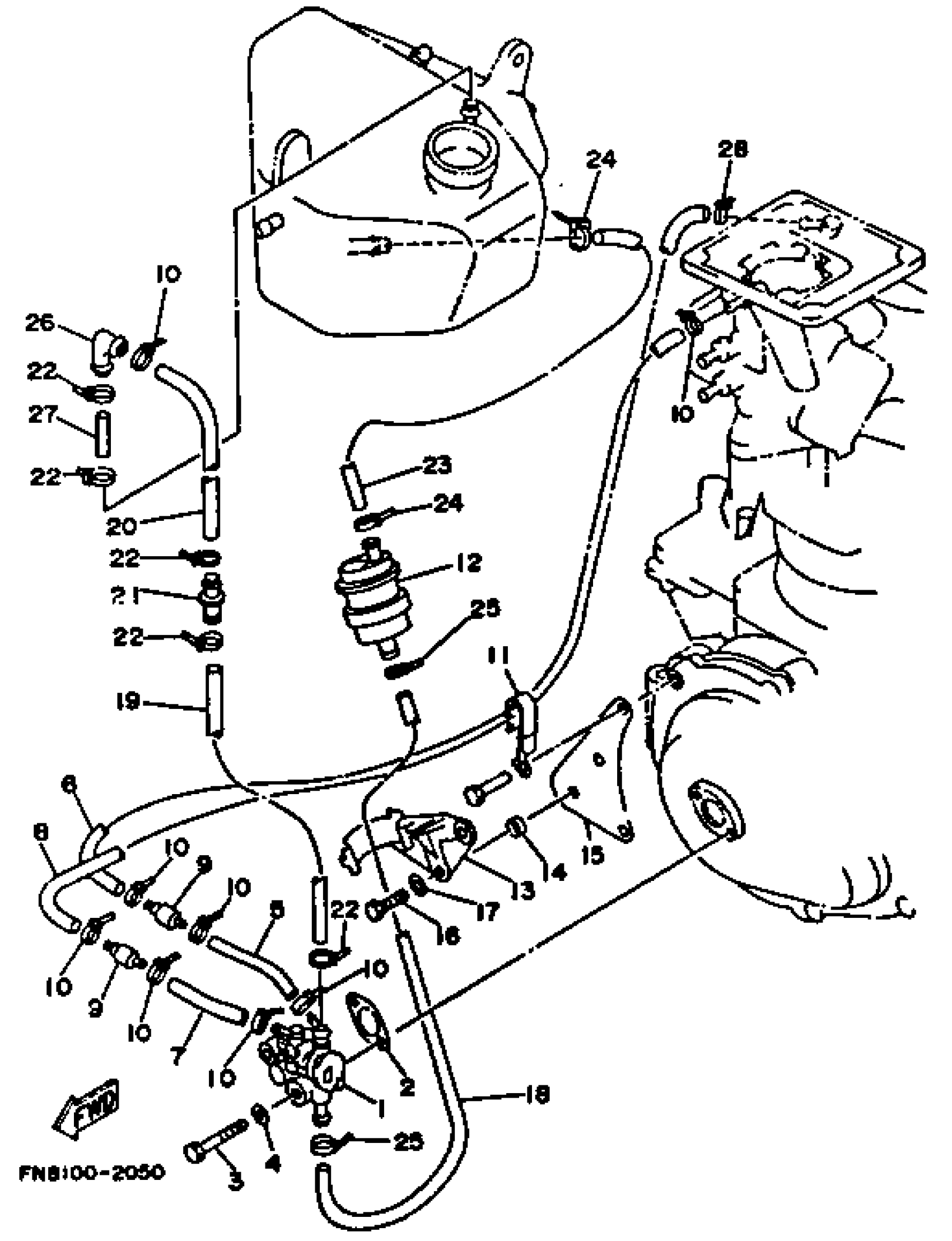

Yamaha WRB650Q_FN8_808601 FN8 1992 OIL PUMP Diagram
#
Description
Price
1
OIL INJECTION PUMP ASSEMBLY
61L-13200-00-00
Unavailable
2
. GASKET, PUMP CASE
6R8-13116-A0-00
Unavailable
3
BOLT(J52)
97080-06035-00
Unavailable
4
WASHER, PLAIN (646)
92990-06600-00
$2.80
5
HOSE(62T)
90446-07M48-00
Unavailable
6
HOSE(62T)
90446-07M48-00
Unavailable
7
HOSE(62T)
90446-07M48-00
Unavailable
8
HOSE(62T)
90446-07M48-00
Unavailable
9
VALVE, CHECK
6R3-13183-10-00
Unavailable
10
CLAMP
90465-10098-00
Unavailable
11
CLAMP
90465-08M37-00
Unavailable
12
SUB TANK, OIL
6R8-21733-00-00
Unavailable
13
HOLDER, OIL SUB TANK
6R8-21734-00-00
Unavailable
14
COLLAR
90387-06704-00
Unavailable
15
PLATE
61L-14255-00-00
Unavailable
16
BOLT(GH1)
97080-06012-00
Unavailable
17
WASHER, PLAIN (646)
92990-06600-00
$2.80
18
HOSE (6R8)
90445-11M25-00
Unavailable
19
HOSE (6R8)
90446-12M27-00
Unavailable
20
HOSE (L360)
90445-11M15-00
Unavailable
21
PIPE, JOINT 2
6R8-24377-00-00
Unavailable
22
CLAMP
90465-10098-00
Unavailable
23
.. HOSE (L240)
90445-11M27-00
Unavailable
24
CLAMP
90465-10098-00
Unavailable
25
CLAMP
90465-10098-00
Unavailable
26
PIPE, JOINT 4
61L-24378-00-00
Unavailable
27
HOSE (L420)
90445-092K1-00
Unavailable
28
CLAMP
90465-10098-00
Unavailable
