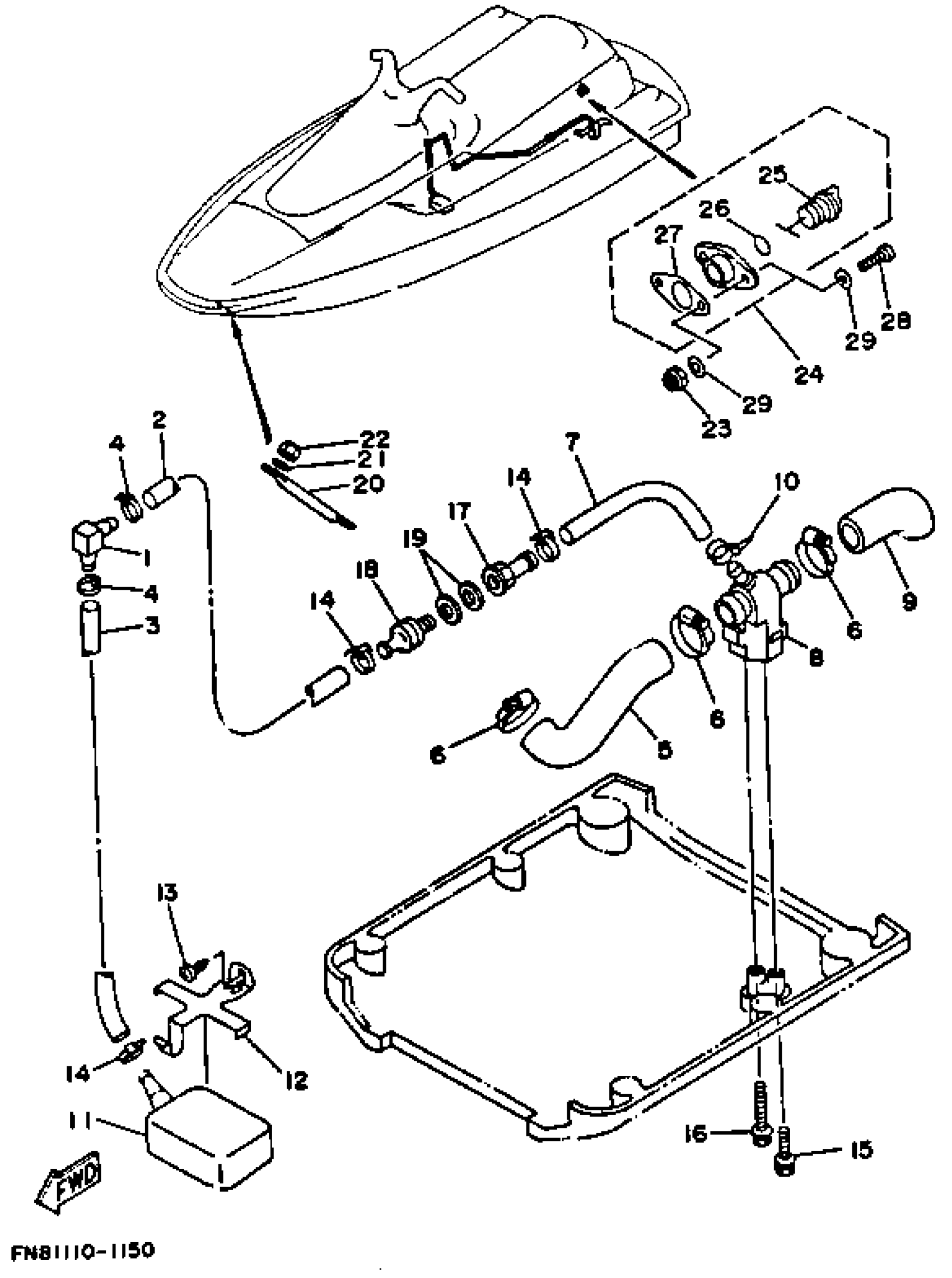

Yamaha WRB650Q_FN8_808601 FN8 1992 HULL - DECK Diagram

#

Description
Price

1

JOINT, HOSE

6K8-51162-00-00

$11.35

2

HOSE

90445-14M03-00

Unavailable

3

HOSE (L380)

90445-14M25-00

$18.17

4

CLAMP

90465-10098-00

$1.68

5

HOSE, PLASHER

61L-51161-00-00

Unavailable

6

HOSE CLAMP ASSY

90450-32097-00

$13.99

7

HOSE (L380)

90445-14M25-00

$18.17

8

BODY, VALVE

6K8-7610K-01-00

Unavailable

9

HOSE SUCTION

6K8-51141-00-00

Unavailable

10

CLAMP

90465-10098-00

$1.68

11

STRAINER, BILGE

F4R-6761D-00-00

$31.80

12

BASE, STRAINER BLIGE

EW2-67618-00-00

$37.49

13

SCREW, PANHEAD TAPPING (682)

97780-50514-00

$3.57

14

CLAMP

90465-10098-00

$1.68

15

BOLT, WITH WASHER

90119-06896-00

$5.03

16

BOLT, W/WASHER

90119-06919-00

Unavailable

17

CONNECTION, THRU-HULL 1/4

90604-80759-00

$18.92

18

CONNECTION, THRU-HULL 1/4

90604-80760-00

Unavailable

19

GASKET

90430-13909-00

Unavailable

20

BOWEYE 1

FN8-U1624-00-00

Unavailable

21

WASHER, PLAIN

92990-08200-00

$2.36

22

. NUT, SELF-LOCKING

95720-08300-00

$3.33

23

NUT, FLANGE

95720-05300-00

$1.28

24

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

25

. PLUG, DRAIN

EU0-62282-00-00

$7.40

26

. O-RING

EU0-62283-00-00

$3.70

27

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.91

28

SCREW, PAN HEAD

98580-05020-00

$1.43

29

. WASHER, PLAIN

92990-05200-00

$4.29
