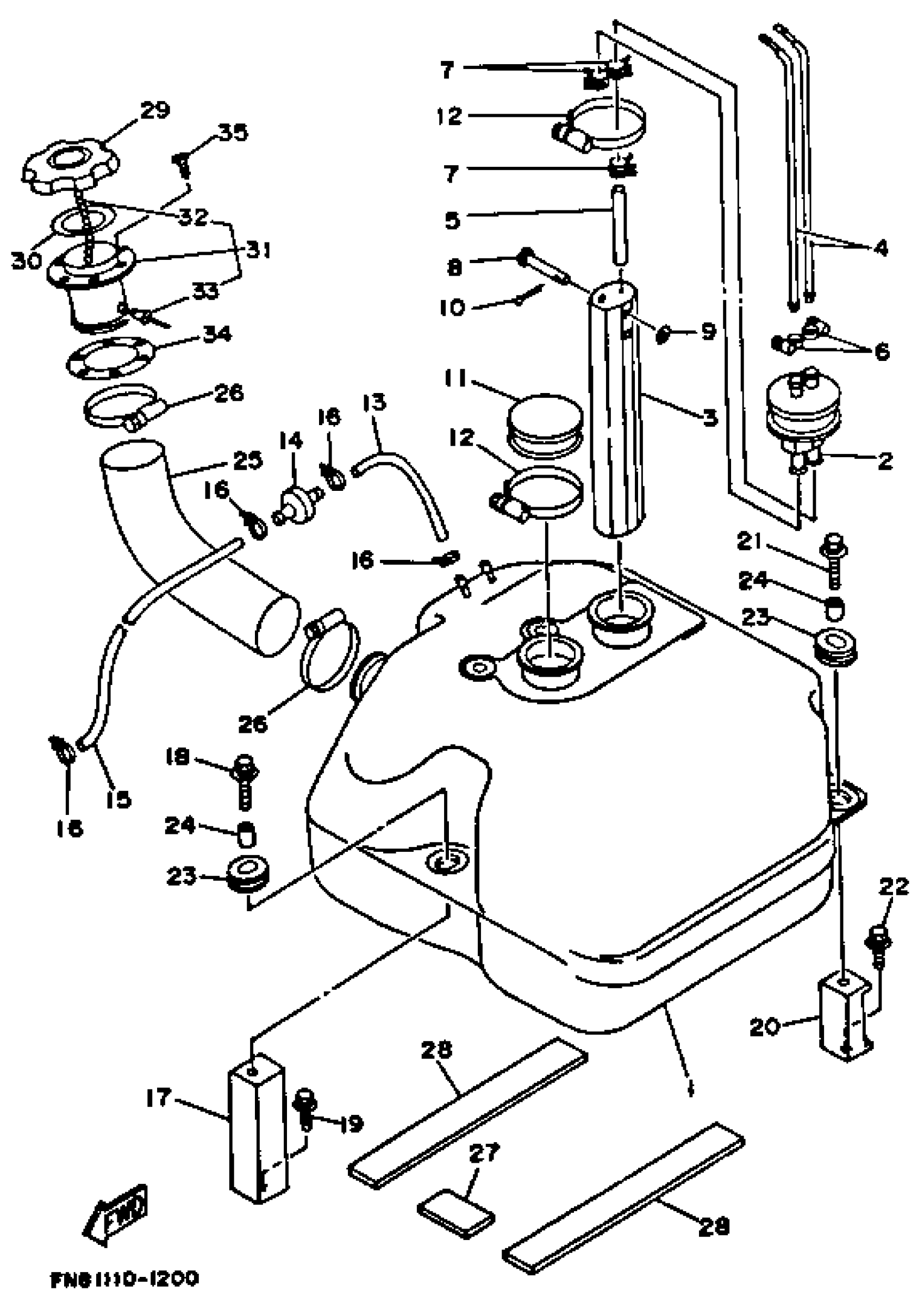

Yamaha WRB650Q_FN8_808601 FN8 1992 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

FN8-67711-01-00

Unavailable

2

PIPE, JOINT

FJ0-67713-01-00

Unavailable

3

SLEEVE 1

FN8-67716-01-00

Unavailable

4

PIPE, SUCTION 3

FN8-67714-02-00

Unavailable

5

HOSE (L198)

90445-11293-00

$6.69

6

BAND, HOSE 11

90601-11062-00

Unavailable

7

CLIP (7K7)

90467-11044-00

$4.89

8

PIN (FJ0)

91790-05040-00

$2.53

9

WASHER, PLAIN (646)

92990-05600-00

Unavailable

10

PIN. COTTER

91490-16010-00

$2.36

11

COVER

FN8-6771K-00-00

$11.85

12

BAND, HOSE 62

90601-162U5-00

$6.17

13

HOSE, AIR VENT 1

EU0-67856-00-00

Unavailable

14

CHECK VALVE

EU0-67767-31-00

$20.93

15

HOSE, AIRVENT 1

EU0-67856-30-00

Unavailable

16

CLAMP

90465-10098-00

$1.68

17

FIX, FUEL TANK

FN8-67777-00-00

Unavailable

18

BOLT, WITH WASHER

90119-08916-00

Unavailable

19

BOLT, WITH WASHER

90119-08903-00

Unavailable

20

FIX, FUEL TANK

FN8-67777-31-00

Unavailable

21

BOLT, WITH WASHER

90119-08916-00

Unavailable

22

BOLT, WITH WASHER

90119-08903-00

Unavailable

23

GROMMET

90480-19906-00

Unavailable

24

COLLAR

90387-08906-00

Unavailable

25

HOSE

FN8-U7844-00-00

Unavailable

26

BAND, HOSE 55

90601-155U4-00

$5.87

27

MAT

FN8-U7593-00-00

Unavailable

28

MAT

FN8-U7593-30-00

Unavailable

29

CAP, FUEL FILLER

EU0-67831-32-00

Unavailable

30

PACKING 1

EU0-67832-00-00

$7.40

31

SOCKET

EU0-W6783-01-00

Unavailable

32

. CHAIN BALL

EU0-67835-00-00

$5.18

33

. RIVET, BLIND

90267-40935-00

$1.28

34

PACKING, FUEL FILLER

EU0-67834-00-00

$25.49

35

SCREW, FLAT HEAD TAPPING

EU0-U7869-00-00

Unavailable
