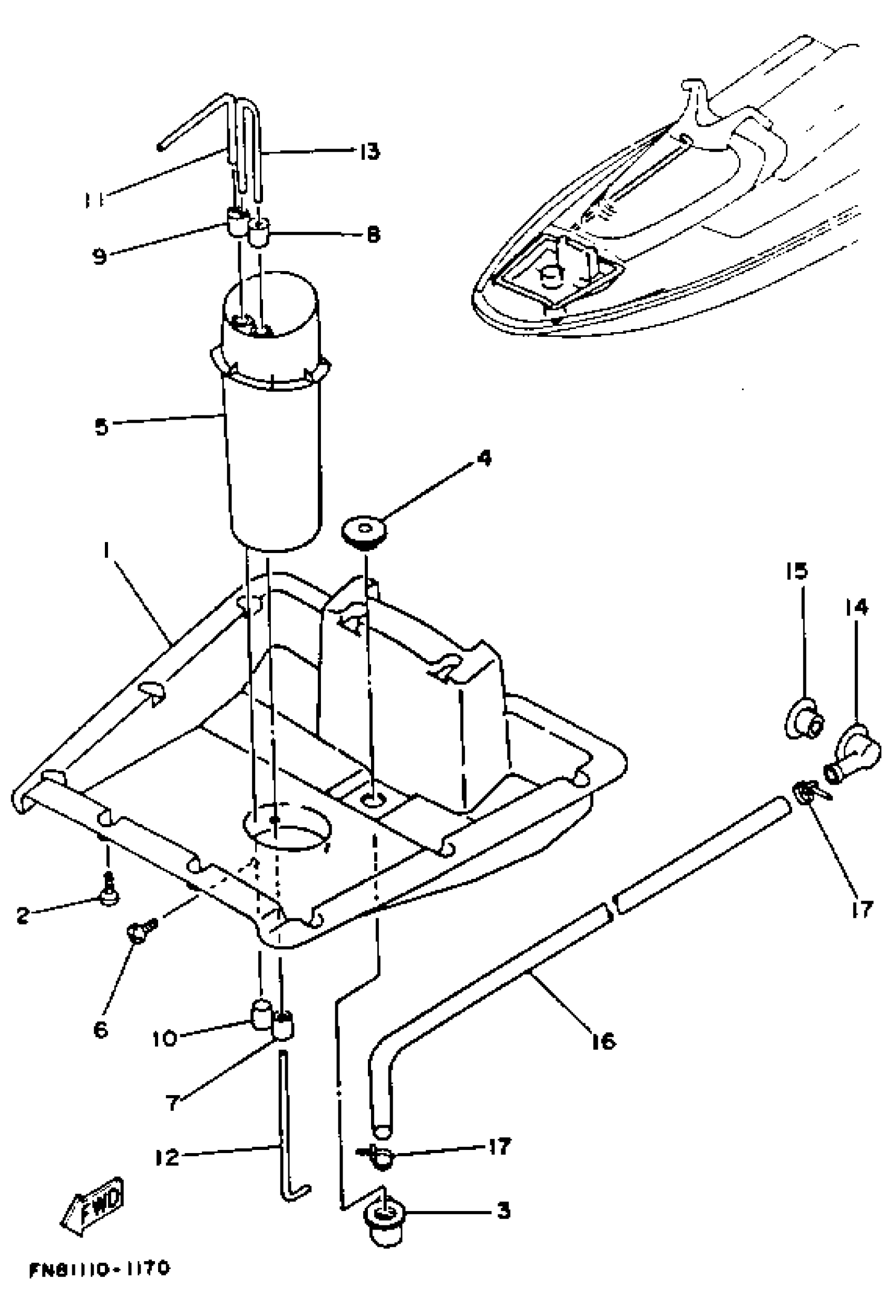

Yamaha WRB650P_FN8_807001 FN8 1991 VENTILATION Diagram

#

Description

Price

1

COVER VENTILATOR 1

FN8-U2131-00-00

Unavailable

2

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

$1.36

3

BODY, DRAIN 3

FN8-6224E-00-00

Unavailable

4

BODY, DRAIN 4

FN8-6224F-01-00

Unavailable

5

PIPE, VENTILATION

EU0-U2149-40-00

Unavailable

6

SCREW, OVAL HEAD TAPPING

97780-40112-00

$3.61

7

CAP

EU0-62155-00-00

Unavailable

8

CAP

FN8-62155-00-00

Unavailable

9

CAP

FN8-62155-30-00

Unavailable

10

CAP

FN8-62155-40-00

Unavailable

11

ELBOW, VENTILATOR 11

FN8-62156-00-00

Unavailable

12

ELBOW VENT 12

EU0-62156-32-00

Unavailable

13

ELBOW, VENTILATOR 13

FN8-62156-40-00

Unavailable

14

BODY, DRAIN 3

FN8-6224E-00-00

Unavailable

15

BODY, DRAIN 4

FN8-6224F-01-00

Unavailable

16

HOSE 1

90669-03030-00

$98.47

17

BAND

90601-200U1-00

$2.77
