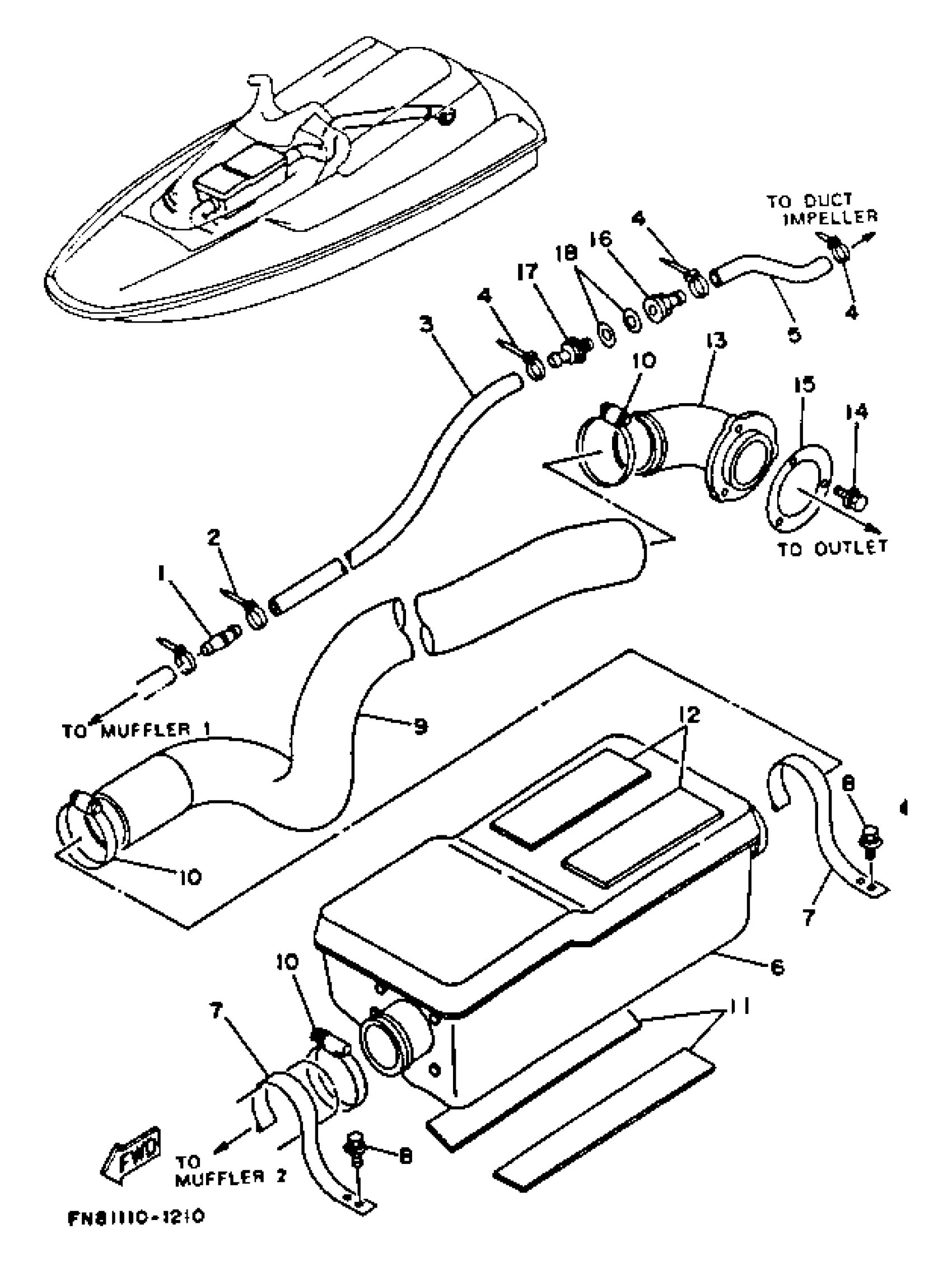

Yamaha WRB650P_FN8_807001 FN8 1991 EXHAUST 2 Diagram

#

Description
Price

1

CONNECTION

6M6-51142-00-00

Unavailable

2

CLAMP

90465-10098-00

Unavailable

3

HOSE

90445-14M03-00

Unavailable

4

CLAMP

90465-10098-00

Unavailable

5

HOSE

90445-14M17-00

Unavailable

6

WATER LOCK COMP.

FN8-U7550-30-00

Unavailable

7

CLIP, HOSE EXHAUST

FN8-67559-00-00

Unavailable

8

BOLT, WITH WASHER

90119-06913-00

Unavailable

9

HOSE

FN8-U7555-00-00

Unavailable

10

BAND, HOSE 68

90601-168U7-00

Unavailable

11

MAT 2

EU0-U7593-30-00

Unavailable

12

MAT

EU0-U7593-50-00

Unavailable

13

THRU-HULL

FN8-67565-01-00

Unavailable

14

BOLT, WITH WASHER (EW3)

90119-05912-00

Unavailable

15

PACKING

FN8-U7525-01-00

Unavailable

16

CONNECTION, THRU-HULL 1/4

90604-80757-00

Unavailable

17

CONNECTION, THRU-HULL 1/4

90604-80758-00

Unavailable

18

GASKET

90430-13909-00

Unavailable
