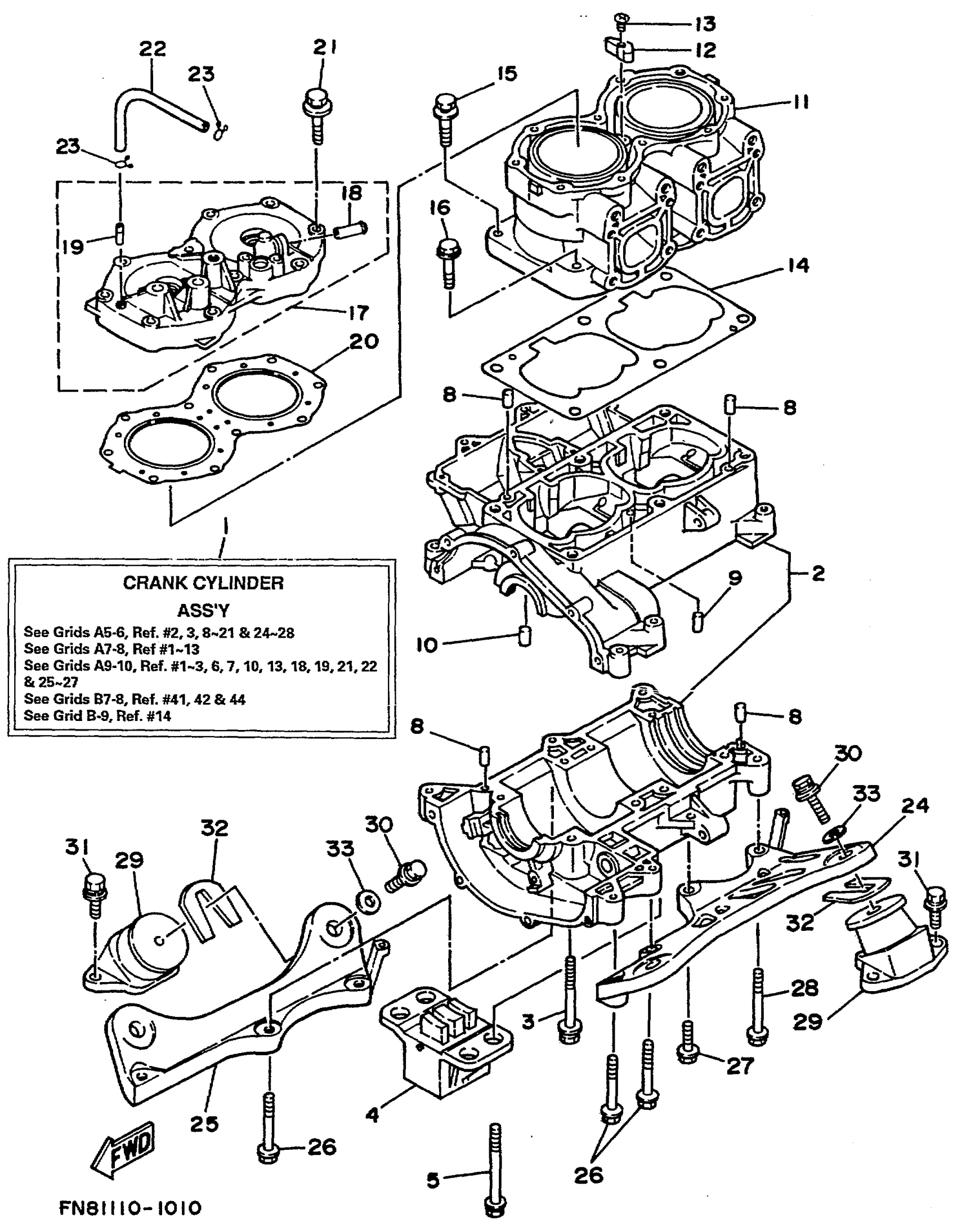

Yamaha WRB650P_FN8_807001 FN8 1991 CYLINDER - CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

61L-W0090-05-8P

Unavailable

2

CRANKCASE ASSY

6M6-15100-00-8S

Unavailable

3

. BUSH, SOLID

90380-12M29-00

Unavailable

4

BOLT, WITH WASHER

90119-08M55-00

$2.95

5

STOPPER, UPPER MOUNT

61L-44532-00-00

$69.68

6

BOLT

90109-08M56-00

$4.09

7

COLLAR

90387-08M10-00

Unavailable

8

WASHER, PLATE(6R8)

90201-08M04-00

$5.77

9

PIN, DOWEL (614)

93606-12019-00

$3.05

10

PIN (2H7)

93603-10049-00

Unavailable

11

PIN, DOWEL (8H1)

93604-07141-00

$1.29

12

CYLINDER 1

6M6-11311-01-8S

Unavailable

13

ANODE

6E5-11325-00-00

$4.08

14

SCREW, FLAT HEAD

98780-04016-00

$1.36

15

GASKET, CYLINDER

6M6-11351-A2-00

$18.15

16

BOLT, WITH WASHER

90119-10M56-00

$10.24

17

BOLT (6F5)

90119-10M07-00

Unavailable

18

HEAD, CYLINDER 1

6R7-11111-09-8S

Unavailable

19

. NIPPLE

6K8-51129-00-00

$9.62

20

. PIPE, JOINT

6R7-14485-00-00

$11.99

21

GASKET, CYL. HEAD

6R7-11181-A1-00

Unavailable

22

BOLT, WITH WASHER

90119-08019-00

$4.79

23

HOSE (L200)

90445-07M19-00

Unavailable

24

CLIP

90467-06016-00

$2.93

25

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$131.80

26

BRACKET, REAR UPPER 1

6R7-21425-01-00

$139.38

27

BOLT, WITH WASHER

90119-10M23-00

$10.24

28

BOLT, WITH WASHER

90119-10M00-00

$8.56

29

BOLT, WITH WASHER

90119-10M03-00

$9.08

30

MOUNT RUBBER

6M6-44517-A2-94

$90.89

31

BOLT, WITH WASHER

90119-08904-00

$3.18

32

BOLT, WITH WASHER

90119-08038-00

$4.99

33

PLATE

EU0-67324-00-00

$8.14

34

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

34

SHIM (T=2.0)

EU0-67354-E0-00

$4.09

34

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

34

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

34

SHIM (T=0.5)

EU0-67354-C0-00

$4.55
