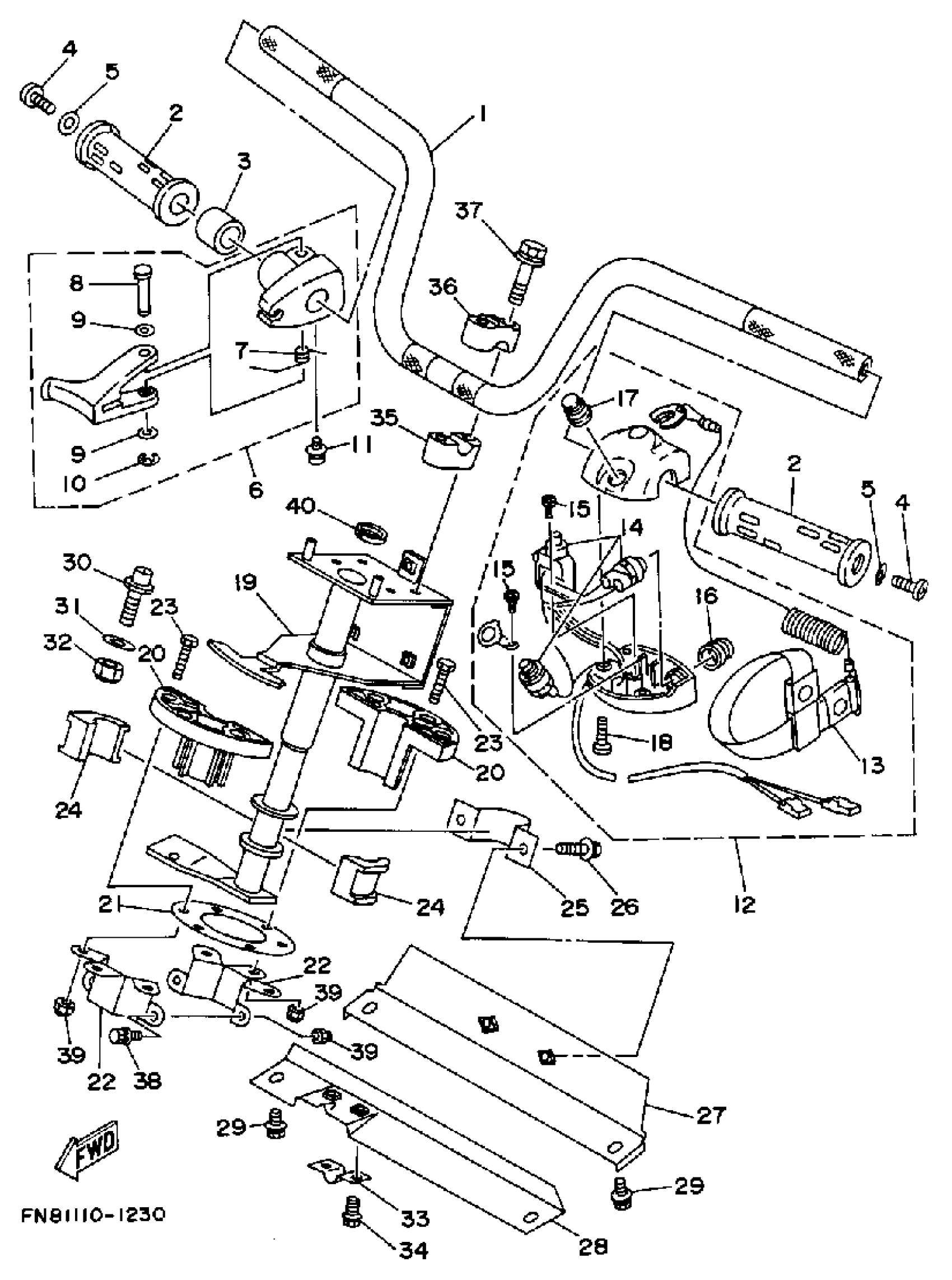

Yamaha WRB650P_FN8_800101 FN81 1991 STEERING 1 Diagram

#

Description
Price

1

HANDLE

FN8-U1552-01-00

Unavailable

2

GRIP, HANDLE 1

EW2-61553-00-00

$14.81

3

SPACER(1LX)

90560-22281-00

$12.23

4

SCREW, PAN HEAD

98580-05020-00

$1.43

5

WASHER, PLATE

90201-05015-00

$5.86

6

THROTTLE LEVER ASSY

EW2-67250-02-00

$104.53

7

. SPRING

EW2-67256-00-00

$6.36

8

. SHAFT

EW2-67257-01-00

$13.99

9

WASHER, PLAIN (646)

92990-05600-00

Unavailable

10

CIRCLIP (EU0)

99080-04600-00

$1.70

11

SCREW, WITH WASHER

90159-05900-00

$2.17

12

SWITCH BOX ASSY

GA7-68310-01-00

$222.71

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

SWITCH BOX ASSY

GA7-68310-01-00

$222.71

15

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

16

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

17

. START BUTTON COMP

FK7-68313-02-00

$11.31

18

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

19

COLUMN, STEERING

FN8-61541-01-00

Unavailable

20

BEARING, COLUMN

EU0-61417-00-00

Unavailable

21

SEAL, RUBBER

EU0-61439-30-00

Unavailable

22

JOINT, BEARING 1

FN8-6158B-01-00

Unavailable

23

BOLT(JF7)

97080-06030-00

Unavailable

24

BEARING, STEERING

8F3-23812-00-00

$9.25

25

JOINT, BEARING

EU0-61588-00-00

Unavailable

26

BOLT, WITH WASHER

90119-08903-00

Unavailable

27

BRACKET, BEARING

FN8-61433-00-00

Unavailable

28

BRACKET, STOPPER CABLE

FN8-61467-00-00

Unavailable

29

BOLT, WITH WASHER

90119-08903-00

Unavailable

30

PIN, STOPPER

EU0-61314-30-00

Unavailable

31

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

32

NUT, NYLON (FN8)

95720-10300-00

Unavailable

33

STOPPER CABLE

EU0-U1468-00-00

Unavailable

34

BOLT, WITH WASHER

90119-06926-00

Unavailable

35

HOLDER, HANDLE UPPER

EU0-23814-02-00

$16.99

36

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

37

BOLT, WITH WASHER

90119-08925-00

Unavailable

38

BOLT, WITH WASHER

90119-06913-00

$1.28

39

NUT, SELF-LOCKING

95720-06300-00

$1.82

40

PACKING, STEERING COLUMN

EU0-61469-00-00

Unavailable
