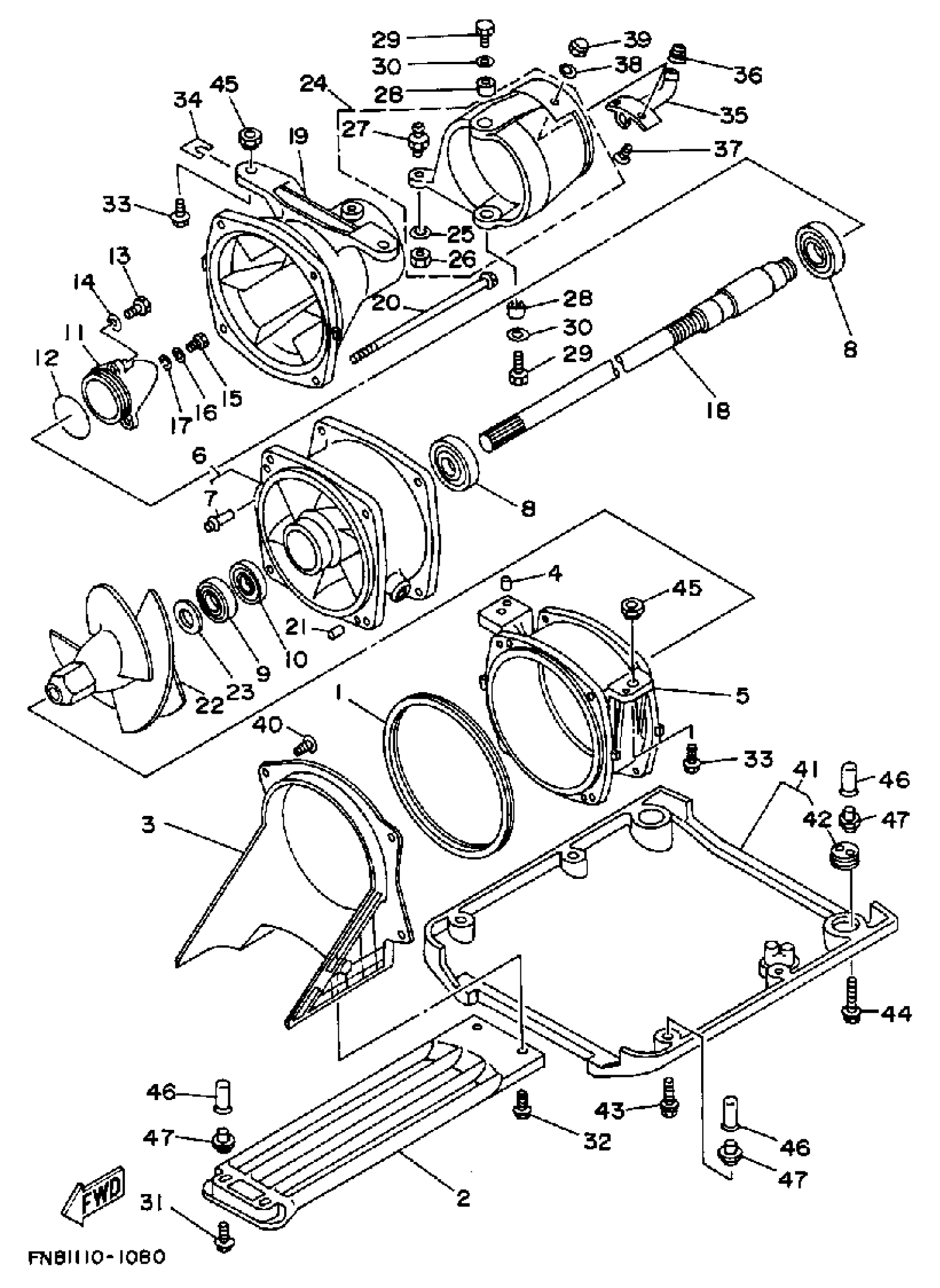

Yamaha WRB650P_FN8_800101 FN81 1991 JET UNIT 1 Diagram
#
1
. PACKING
6R7-51117-01-00
Unavailable
2
SCREEN, INTAKE
61L-51333-00-CA
Unavailable
3
DUCT, INTAKE
61L-51311-01-00
Unavailable
4
PIN, DOWEL(61L)
93606-09M19-00
$1.86
5
HOUSING, IMPELLER
6R7-51312-03-00
Unavailable
6
DUCT, IMPELLER
6R7-51315-01-94
Unavailable
7
. NIPPLE
6K8-51129-00-00
Unavailable
8
BEARING (6K8)
93306-205U1-00
$25.99
9
OIL SEAL(6R7)
93102-25M34-00
$16.99
10
OIL SEAL(6R7)
93101-25M50-00
Unavailable
11
CAP
62T-51326-00-00
Unavailable
12
. O-RING
93210-46M16-00
Unavailable
13
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
14
WASHER, PLAIN (646)
92990-06600-00
$2.80
15
BOLT(GH1)
97080-06012-00
Unavailable
16
WASHER, PLAIN (646)
92990-06600-00
$2.80
17
. GASKET
90430-06M03-00
Unavailable
18
SHAFT, DRIVE
61L-45511-00-00
Unavailable
19
NOZZLE
6R7-51318-00-00
Unavailable
20
BOLT, WITH WASHER
90119-06M70-00
Unavailable
21
PIN, DOWEL (614)
93606-12019-00
Unavailable
22
IMPELLER
61L-51321-00-CA
Unavailable
23
SPACER
62T-51348-00-00
Unavailable
24
NOZZLE DEFLECOR
61L-51313-00-00
Unavailable
25
WASHER, PLATE
90201-06M02-00
Unavailable
26
NUT(650)
95380-06700-00
Unavailable
27
. BOLT, JOINT
6R7-42316-00-00
Unavailable
28
COLLAR(6R7)
90387-08M06-00
Unavailable
29
BOLT, HEXAGON
97095-08018-00
Unavailable
30
.. WASHER, PLATE
92990-08600-00
Unavailable
31
BOLT, WITH WASHER
90119-06896-00
Unavailable
32
BOLT, WITH WASHER
90119-06908-00
Unavailable
33
BOLT
90119-10906-00
Unavailable
34
SHIM (T=0.1)
EW2-67354-00-01
Unavailable
34
SHIM (T=0.3)
EW2-67354-00-03
Unavailable
34
SHIM (T=0.5)
EW2-67354-00-05
Unavailable
34
SHIM (T=1.0)
EW2-67354-00-10
Unavailable
35
SPOUT
EU0-62693-02-00
Unavailable
36
CAP, SPOUT
6R8-62695-00-00
Unavailable
37
. SCREW, FLAT HEAD
98780-05016-00
Unavailable
38
. WASHER, PLAIN
92990-05200-00
Unavailable
39
. NUT, M5 X 08 NYLON LOCK
95780-05300-00
Unavailable
40
SCREW, TAPPING
97780-60520-00
Unavailable
41
PLATE 2 ASSEMBLY
FN8-62730-00-00
Unavailable
42
BOLT, JACK
FK7-62732-01-00
Unavailable
43
BOLT, WITH WASHER
90119-06896-00
Unavailable
44
BOLT, WITH WASHER
90119-06914-00
Unavailable
45
NUT
90179-10925-00
Unavailable
46
NUT
90179-06931-00
Unavailable
47
CLING
90190-06014-00
Unavailable
